120-160lm/w 1000lux led flood light 1000w Football Stadium 1200w 1500 watt modular


Поделиться:

Цена:9 662,53 ₽ - 52 028,97 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

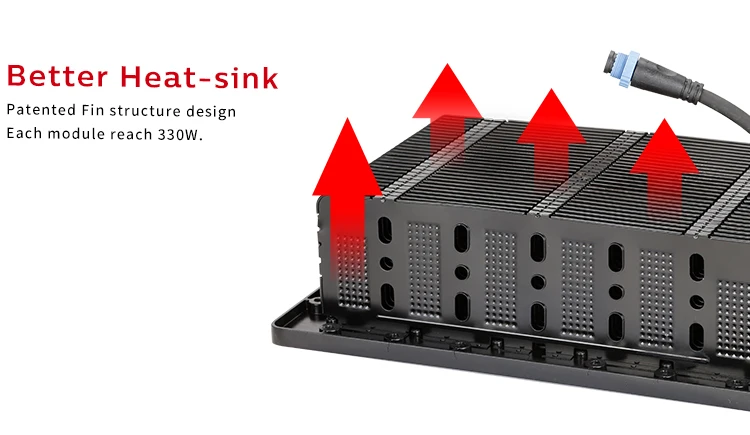

V18 LED stadium lamp is patented Fin heat sink design product,with high efficiency LED,various of beam angle for different lighting application.

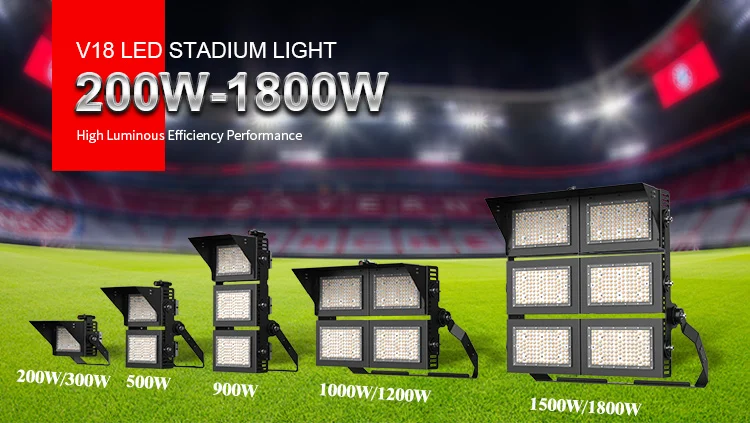

Range from 200W to 1800W,used to televise for professional CCTV high uniformity.



Parameters

 led stadium light V18 (1).jpg



120-160lm/w 1000lux led flood light 1000w Football Stadium 1200w 1500 watt led flood light modular design



Model NO.
LY-V18-500-2
LY-V18-900-3
LY-V18-1200-4
LY-V18-1500-6
LY-V18-1800-6
Wattage
500W
900W
1200W
1500W
1800W
Beam angle
10°/15° (120lm/w)
24°/36°/60°/90°/30X45°/90X40°(160lm/w)
CCT
4000K / 5000K / 6000K / 6500K
Lamp size(mm)
409x500x163
409x748x163
745x557x163
745x807x163
745x807x163
N.W.
13.5KG
19.5KG
25KG
35KG
35KG
Main Features

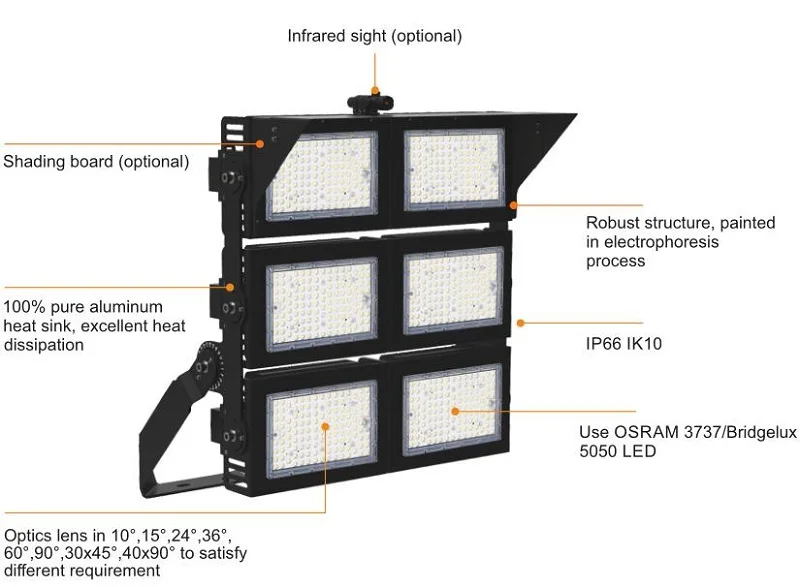

 Key features of LED stadium light

1.Die-cast aluminum alloy housing.
2.Electrophoresis process technology.
3.Use Osram 3737/Bridgelux 5050 LEDs.

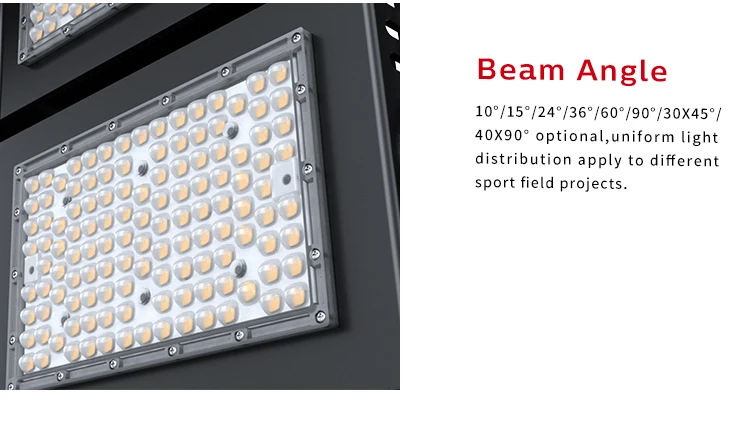

4.Beam angle: 10°/15°/24°/36°/60°/90°/30X45°/40X90°
5.Excellent operating temperature -40°C ~ 50°C

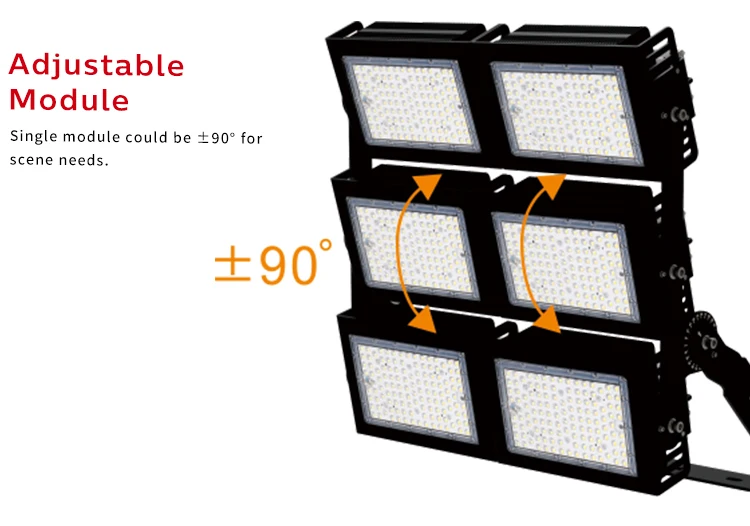

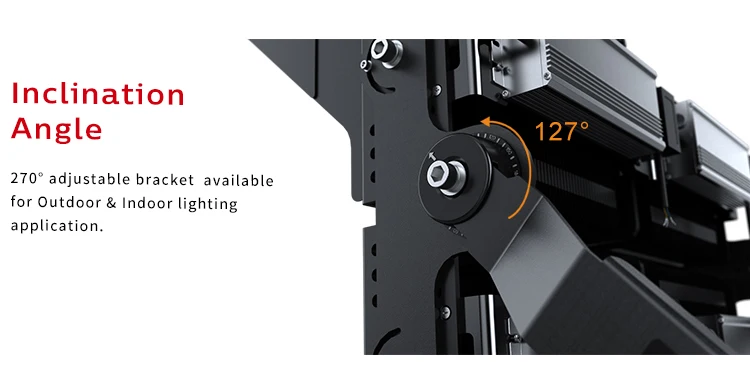

6.-180° ~ 180° adjustable bracket.

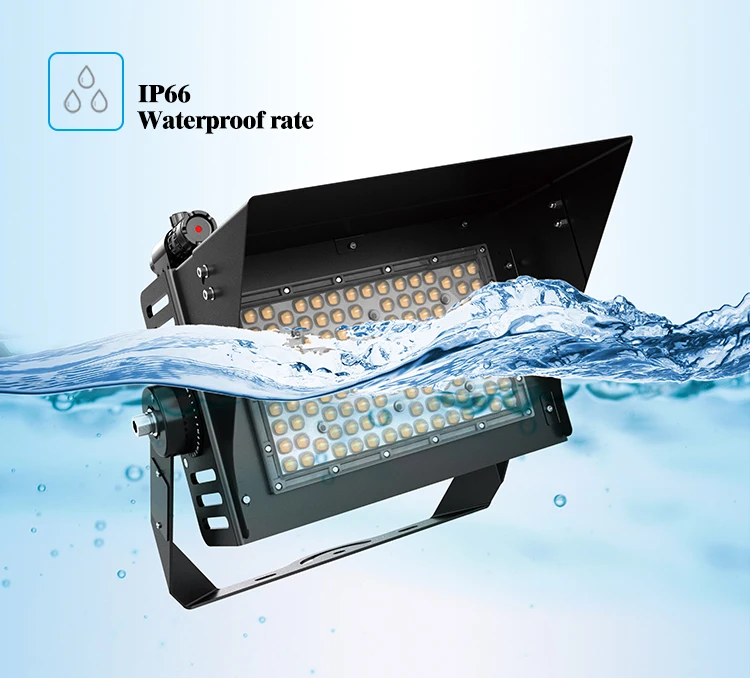

7.Excellent housing design reach IP66/IK10 rating.
8.Lifespan over 50,000 hours,5 yearswarranty.



V15 details.jpg



Product Details





led stadium light V18 (4).jpg

led stadium light V18 (2).jpg

led stadium light V18 (5).jpg

led stadium light V18 (6).jpg

led stadium light V18 (7).jpg

led stadium light V18 (8).jpg

led stadium light V18 (9).jpg

led stadium light V18 (10).jpg

led stadium light V18 (11).jpg



  stadium flood light (10).jpg

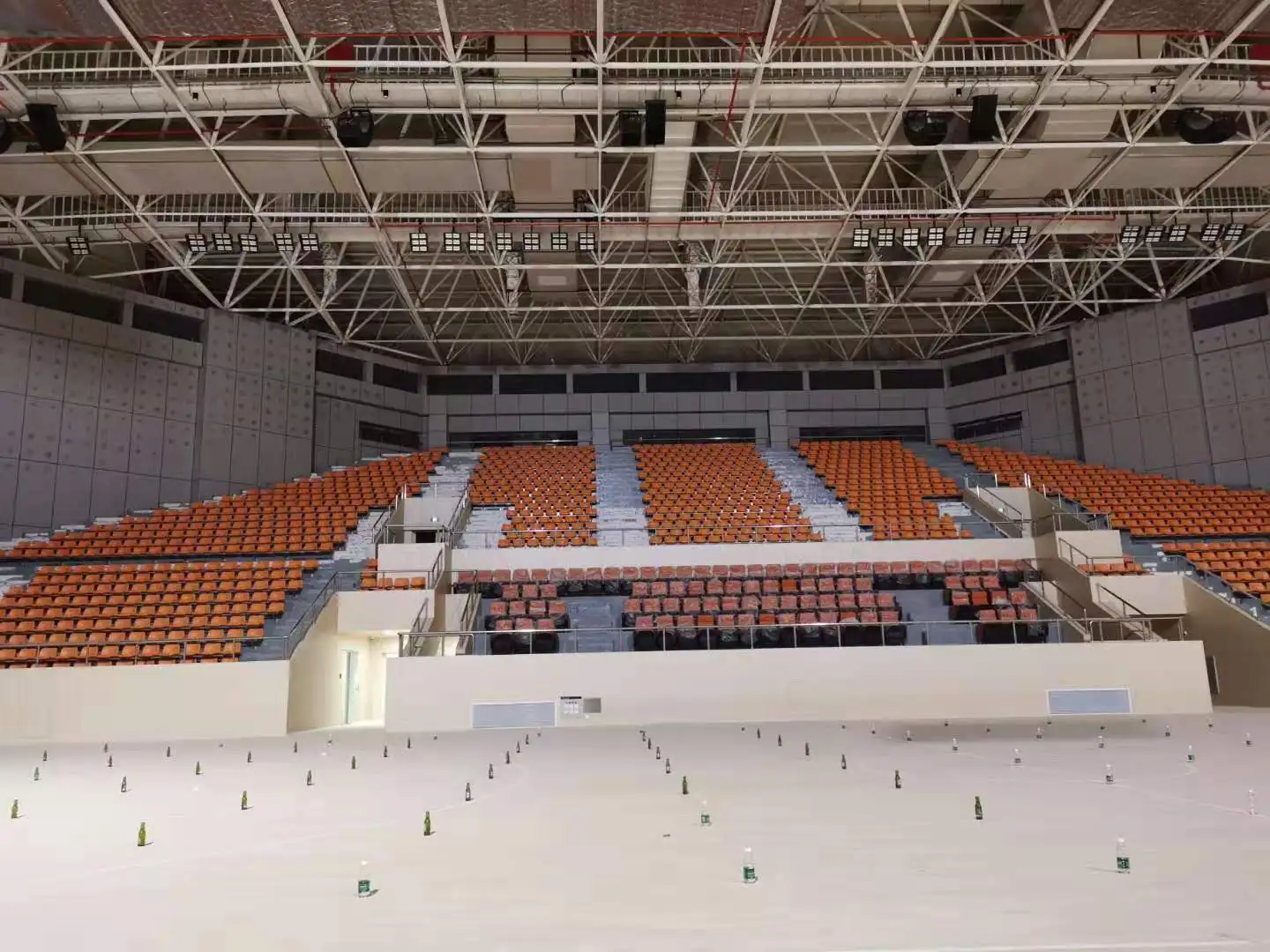

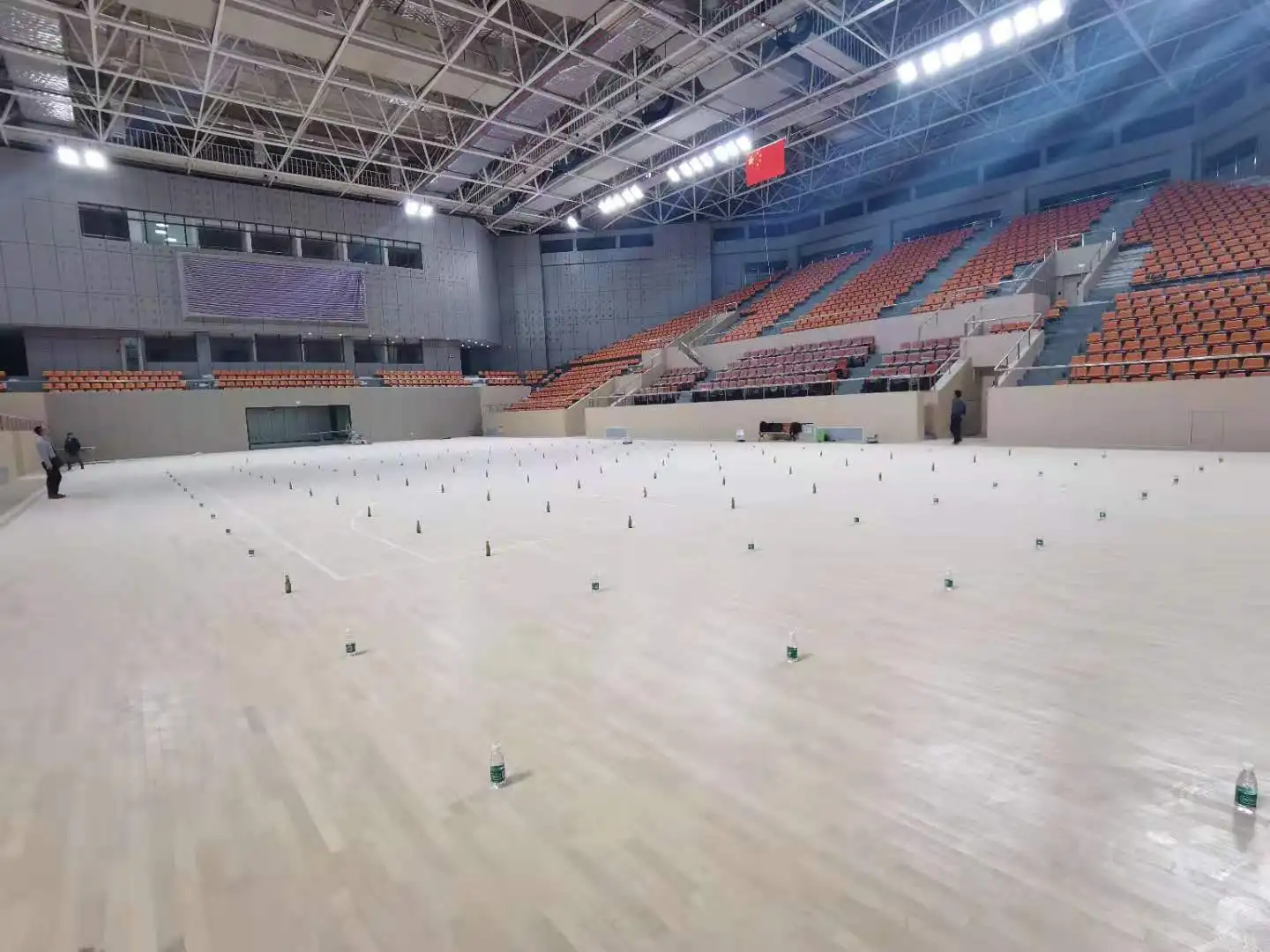

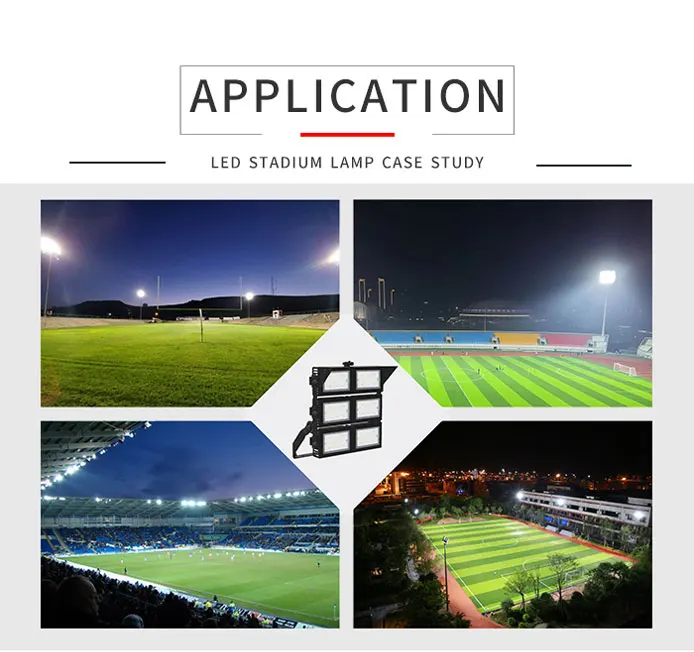

Complete Projects

V18 application (1).jpg



V18 application (4).jpg



stadium light.JPG



stadium

Quality Control

Lepower has very strict Quality Control System, from checking and evaluation of incoming materials

to the delivery of products, each item will be checked and tested for several times.



Testing Equipments



Picture No. 1-2: Dark Room for testing IES files and other Photometric datasFor every piece of Lepower LED Light,

they will be tested in many procedures.

Picture No. 3-4: Extreme temperature testing and IP Rating  to make sure the lamps work stably and standardly

under extreme temperature and weather environment.

Picture No. 5: Anti-Corrosion Testing, to make sure the lights are working well even under corrosive environment.

Picture No. 6: Drop Testing, to make sure the lamps remain good even dropped from high places



.jpg

Company Information

Shenzhen Lepower Opto Electronics Corp.,Ltd (STOCK CODE:838452) founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power LED encapsulation,optical design and LED lighting researching and developing It has been honored as Chinanational high-tech enterprise,China Top 100 LED Lighting Application Enterprise, Forbes China Top 100 Up-and-Comer Private Unlisted Company.


Lepower, with more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R&D and innovation capability in China’s LED industry. Lepower has got many national patents, which is able to offer customers professional LED lighting solutions.Lepower strictly carry out ISO9001:2008 quality management system, and most Products have passed several tests by authorized Lab, and got ETL, DLC,ENEC,CB, CE,ROHS,LM-80,LM-79,CQC certification etc.



led stadium light V18 (12).jpg

led stadium light V18 (13).jpg

led stadium light V18 (14).jpg

FAQ

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.





Q4. We now have football stadium projects need to do the lighting design,can you help us?

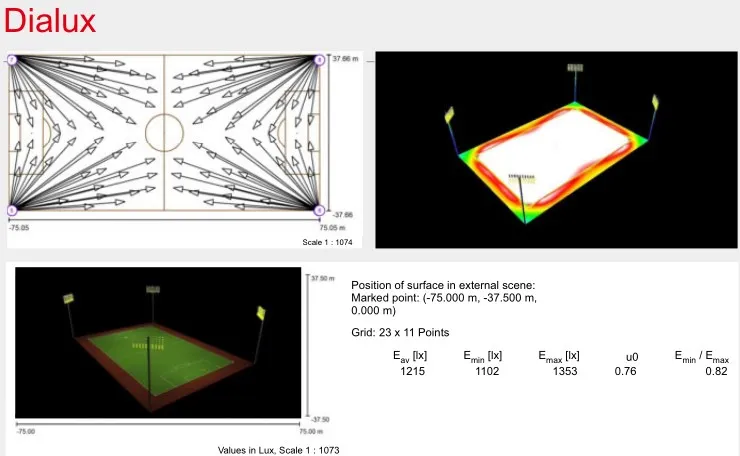

Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide  you the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.

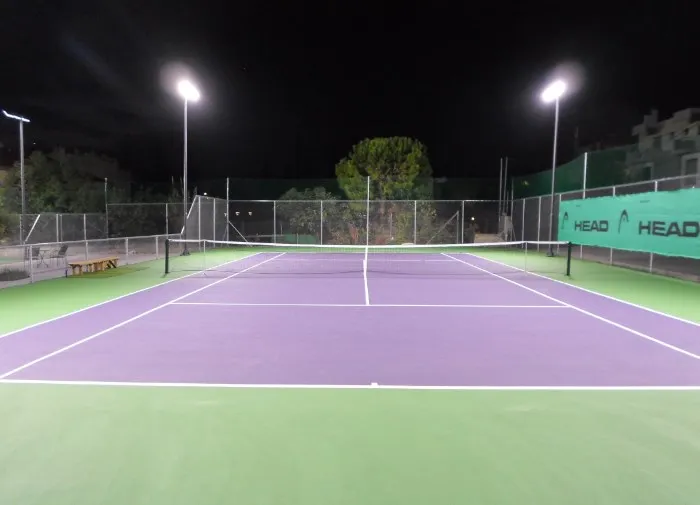

Q5.I have a football/tennis court ,what's your suggestion?

Please give me the below information:
A:the area of the field
B:the loction and the height of the light poles
C:the requirement of the illumination

led stadium light V18(11.JPG
