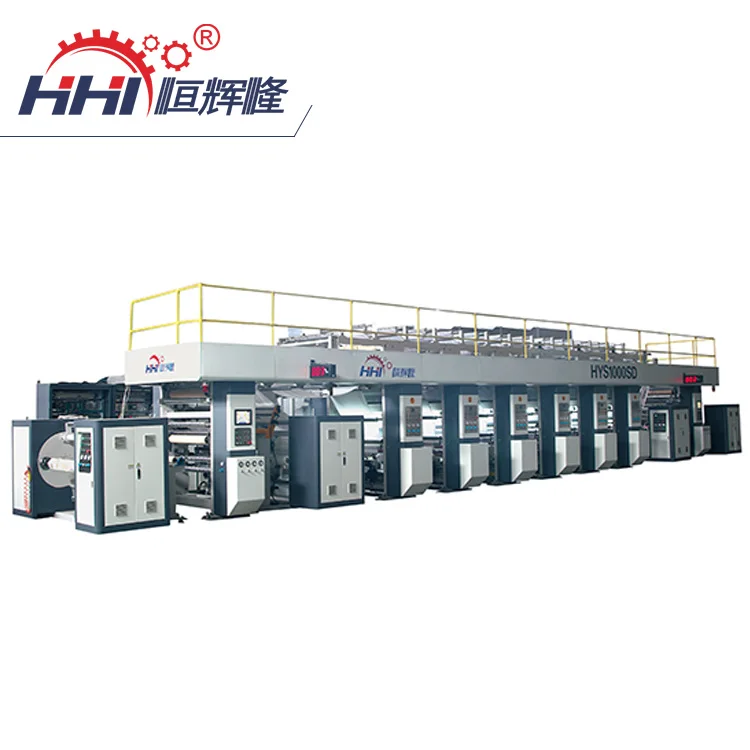

Интэглио-печатная машина с электрическим вал и двойной намотки

 Max printing speed

180m/min - 300m/min

 Color number

6 colors with double winder and re-winder, could be single-headed or double-headed printing(3+3;4+2;5+1)

 Base material

15-40um   15-40um PE breathable film

  Material width

800-1300mm

Horizontal and vertical color matching precision

±0.15mm

Color matching control mode

vertical automatic color matching tracking

Pre-color matching detection

In Store thousands sets data for pre-color matching

Color matching precision detection

±0.01mm

 Plate diameter

160mm-370mm

 Circumference

500~1150mm

Diameter of winding/unwinding

Max 800 mm

 Total power

Motor Power 120kW, Heating power 144kW

 Weight

  Around 30000kg

 Dimensions

18800(L) x 3200(W) x 3200(H)mm
