Cat6 utp кабель Спецификация полный медный локальной сети для

Mode

cat6 utp lan cable

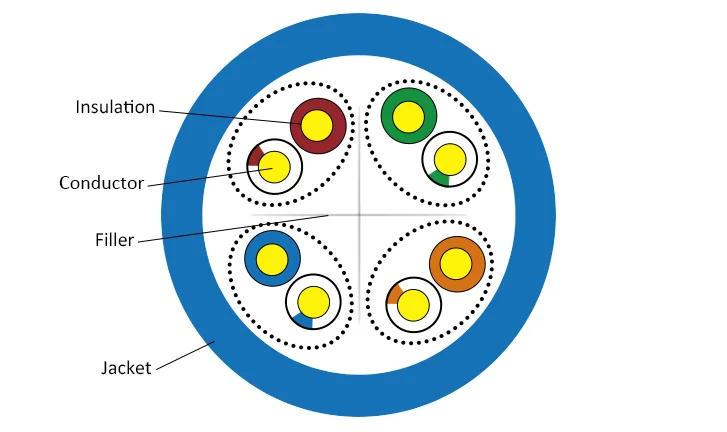

Conductor Size

28AWG,26AWG,24AWG,23AWG,22AWG

Conductor Material

BC/CU/CCA/CCS/CCAM/CCC/OFC

No.of Conductor

4P

Insulation Material

PE , HDPE

Jacket

PVC, ROHS PVC, LSZH PVC,LSOH

Shield

Shielded twisted pairs: rip cord

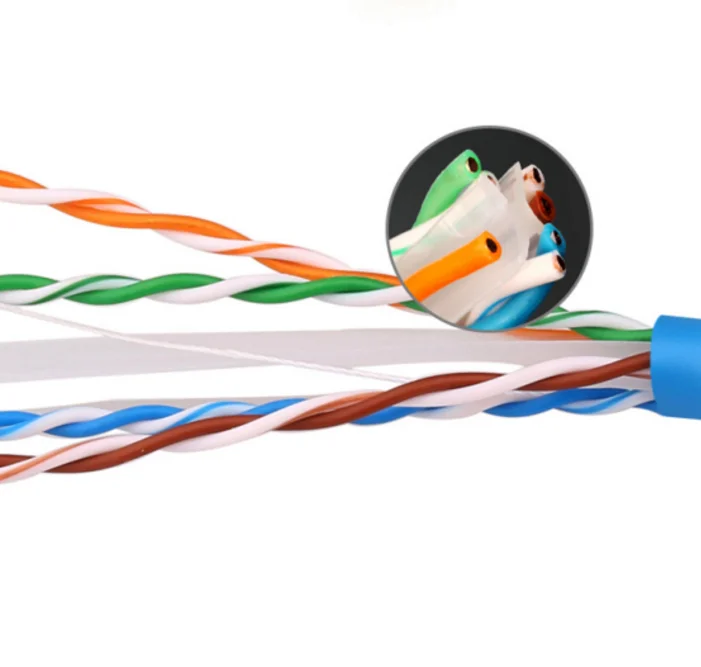

Filler

PE cross

Indoor/Outdoor

Single Jacket

Insulation Thickness

0.2mm

Unrip rope

Optional

Jacket Thickness

0.92-0.95mm

Stretching Resistance

(max)400N

Impedance

100±15%Ω at 1~250MHz

Transmission Velocity

66%

Operating Temperature

-40 °C - +70 °C

Reference Standard

YD/T1019-2001, ANSI/TIA/EIA-568B, ISO/IEC11801

PVC Jacket Color

Optional

Print Words On Cable

As Clients' Request
