Three phase low rpm alternator 3kw wind turbines windmills to generate electricity free wind energy generator for sale ce rohs
What is the wind solar hybrid power system?
Solar & wind hybrid systems product mainly use for home, street lights system both of them are Economic, green and environmentally friendly .
At night or rainy day, wind turbine generate wind power. In sunny day, solar panel generate solar power. In windy and sunny day, both of them generate power.
wind turbine: 3pcs or 5pcs blades optional; guy cable tower or free stand tower can be choose.
solar panel: mono or poly panel optional; battery capacity and quantity can be choose.
Solar panel rack: flat/slope rooftop solar panel rack or ground mounting solar panel rack can be choose.
On grid hybrid system: solar +wind +on grid hybrid controller + grid tie inverter
Off grid hybrid system:solar +wind +hybrid controller + off grid inverter +battery
System specification
2kw wind turbine details
Model | WT2000 |
Rated power | 2000W |
Starting wind speed | 3m/s |
Cut-in wind speed | 3.5m/s |
Rated wind speed | 12m/s |
Security wind speed | 45m/s |
Rated DC voltage | 48V |
Rated speed | 374 r/m |
Rotor diameter | 3200mm |
Protection | Electromagnetic torque control and electricity brake |
Type | 3phase permanent magnetism synchronization generator |
Blade material | Extra-strong fiber glass |
Packing material | Plywood box and foam material |
Packing Size | 850*480*350mm |
N.W&G.W(kg) | 117/132kg |
Sunchees Wind turbine Advantages:
1. Low start-up wind speed
Low wind speed serie small wind turbine for home generate more than 60% effective power than the same rotor diameter wind generator annually.
2.High-efficient Generator
Three-phase permanent magnet synchronous wind generator,more than 10% of the efficiency of ultra-GB,starting resistance,only be 1/3 of the GB limit,motor insulation rating class H insulation.
3.Innovative Noise Reduction Technology
Start and product electricity at the 2.5m/s,noise only at 45db at 13m/s/.
4.Perfect Wind Wheel System
The wind turbine wheel are made of a low temperature resistance,aging high strength compound material,can cope with a variety of complex wind conditions,charge wind energy into electrical energy efficiently and sustainably.
5.Unique Design Of The Rudder
Wind Generator rudders are ale to respond to the wind speed and wind direction flexibly,enhancing the efficiency of power generation.

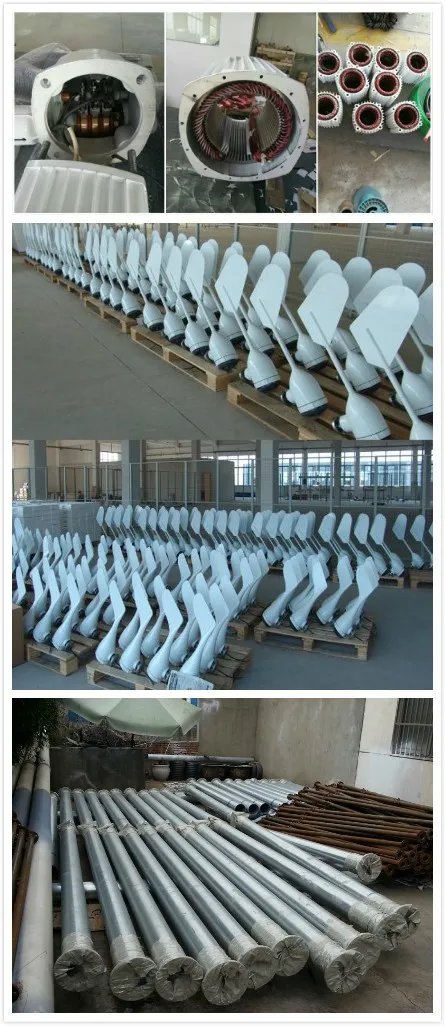

Complete set wind solar hybrid power system each parts
Solar panel

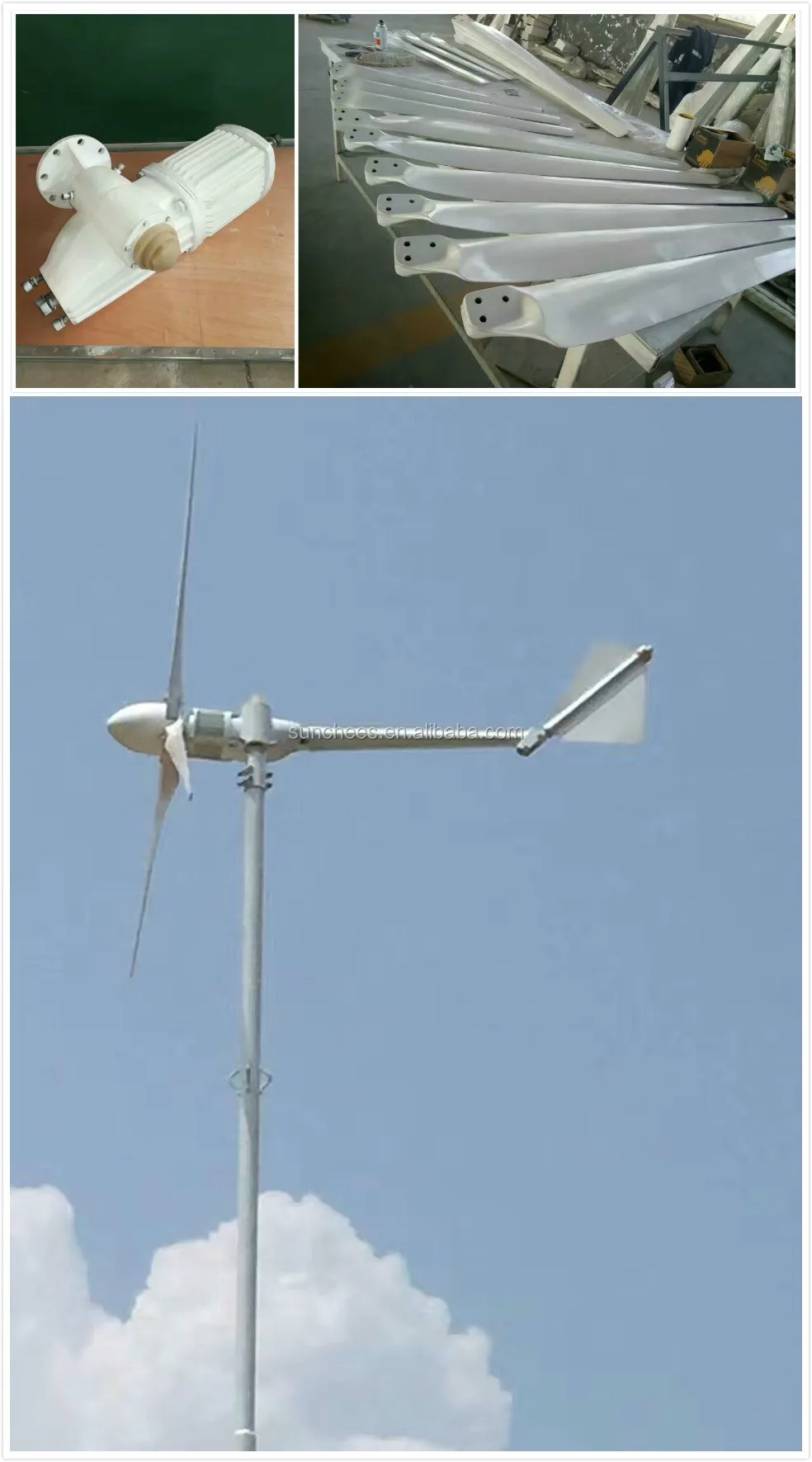

Wind turbine
Pure sine wave inverter
Solar wind hybrid controller
\\

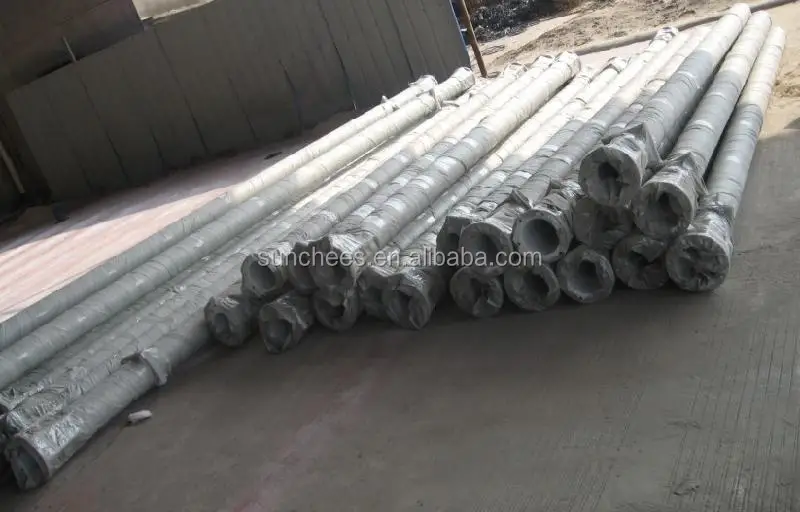

Wind turbine tower
Cable

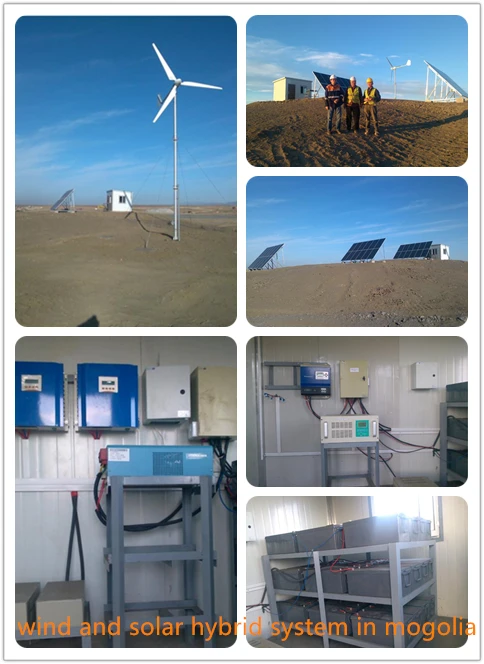

System Applications
Company Information

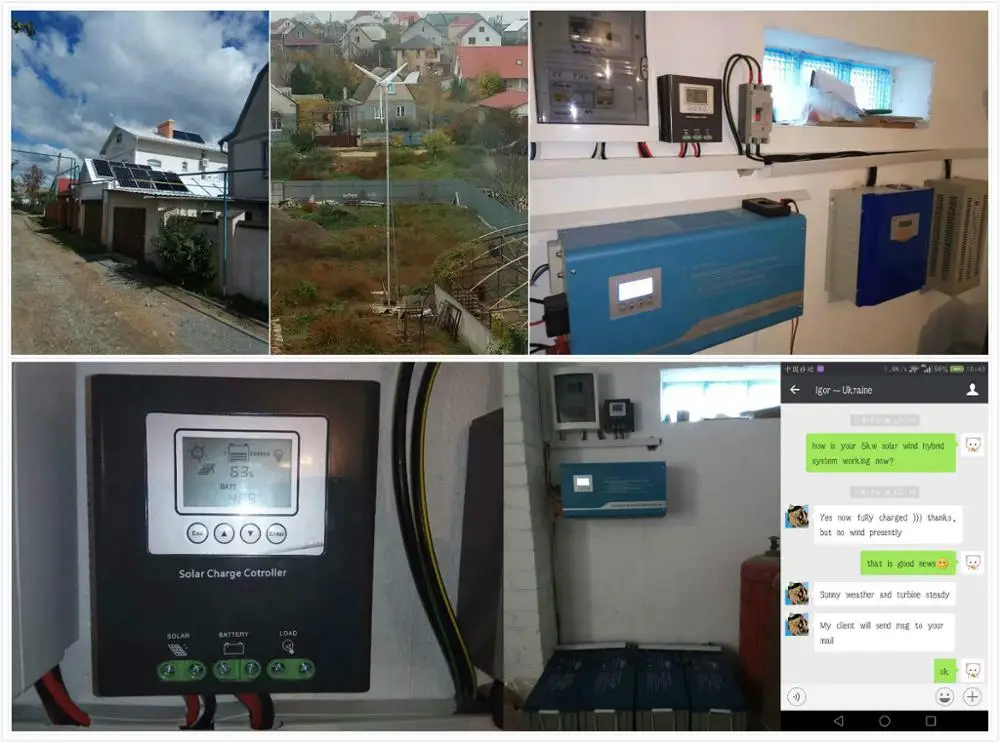

Customers Visit
FAQ
1. Q: Does installation Easy
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very details installation manual.
2. Q: Does our wind is enough for a wind generator ?
A: As our wind generator can start running at low wind speed2.5m/s. so your average annual wind speed is more than 5m/s then you can use it .
3. Q: Which model wind generator is suitable for me?
A: Please contact our sales with following points :
a. What appliance do you want to running by the system? How many watts are they and their working time .
b. Your annual wind speed .
4. Q: Can I only buy parts not whole system?
A: Yes,for example you can manufacture tower in local , we can supply you tower drawing.
Our Services
We can provide prompt response and customized solution.
Customized solutions are more accurate and economical. For accurate solution at the first time, please tell us the location side(city name) to check sunshine condition and daily power consumption. More information and quotation, pls feel free to contact me directly!
