Koi pond filter/water filtration system/drum filter for big fish farm



Fish farm drum filter description

*************************************************************

ZA-DF Series drum filter is composed by four parts: house, roller, back washing

system and electric control system. Capacity: 20~200M3/H (or higher), use non-

toxic seawater corrosion resistant high quality engineering plastic materials, and use

200 mesh (80 microns) stainless steel mesh to remove & separate suspended solids.

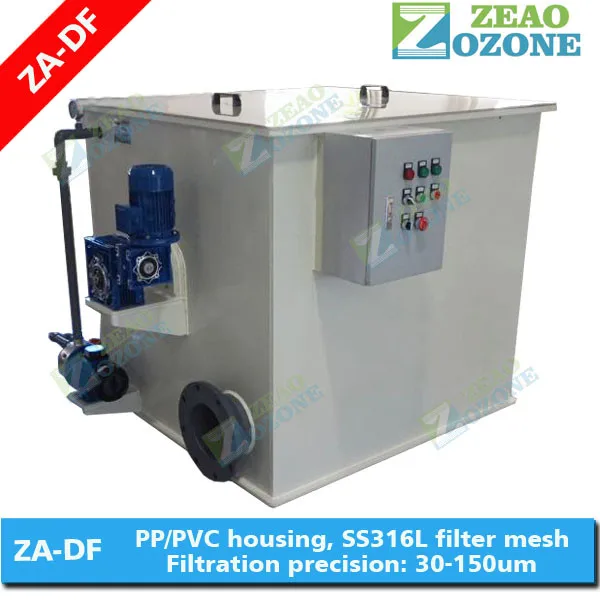

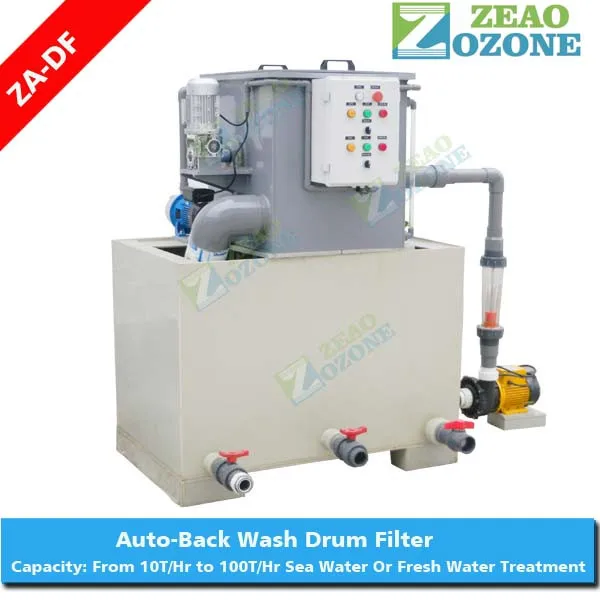

Drum Filter Show

*************************************************************







Working principle

*************************************************************

When the water containing particles of suspended solids enter into the drum,

suspended solids are stainless steel filter retention, filtered water which does not

contain suspended solids enter into water tank. When the suspended solids

accumulate to a certain amount inside roller, it will reduce the filter permeable

capacity, so increase the drum water level, when the water level reaches to the fixed

high level, the water level auto-control system starts working, back washing pump

and roller motor start working at the same time, and use high pressure water to wash

running mesh. The suspended solids be washed into the dirt collection tank and then

exhausted from outfall by high pressure water. When the mesh is clean, it will

improve the filter permeable capacity and reduce the drum water level, when the

water level reaches to the fixed low level, back washing pump and roller motor stop

working, and drum filter will start the new working recycle.



Features

*************************************************************

1). Use with high quality plastic material and SS316L mesh, corrosion resistance and

durable.

2). Use SS316L mesh with small size aperture, low resistance and high discharge

capacity.

3). With auto back washing function to ensure system is working properly.

4). Low power consumption, high efficiency, easy operation and maintenance.



Product appliance

*************************************************************

1) Suitable used for pre-solid-liquid separation processing of aquaculture raw water

treatment.

2) Suitable used for pre-solid-liquid separation processing of aquaculture industrial

water treatment.

3) Widely used in various lines which required pre-solid-liquid separation. Such as

urban sewage water, paper, textile, printing and dyeing, chemical and sewage etc.



Technical data

*************************************************************

Model	Water flow (T/Hr)	Power		Voltage	Water Inlet/Outlet	Size
	80μm	Kw	HP	V	mm	mm
ZA-DF-20	20	0.73	0.97	380/3Ph	Φ110/4’’	920×1050×800
ZA-DF-40	40	0.92	1.23		Φ140/5’’	1160×1070×800
ZA-DF-60	60	1.12	1.50		Φ160/6’’	1400×1090×800
ZA-DF-80	80	1.30	1.74		Φ160/6’’	1300×1530×1250
ZA-DF-100	100	1.65	2.21		Φ200/8’’	1520×1550×1250
ZA-DF-150	150	1.85	2.48		Φ200/8’	2000×1570×1250
ZA-DF-200	200	1.85	2.48		Φ250/10’’	2250×1850×1550





Other equipments for aquaculture water treatment

*************************************************************

Bio-filter 10-100T/HR



Protein Skimmer 10-200T/HR



UV Sterilizer 3-300T/HR



UV Tank



Ozone Generator 2-60G/HR

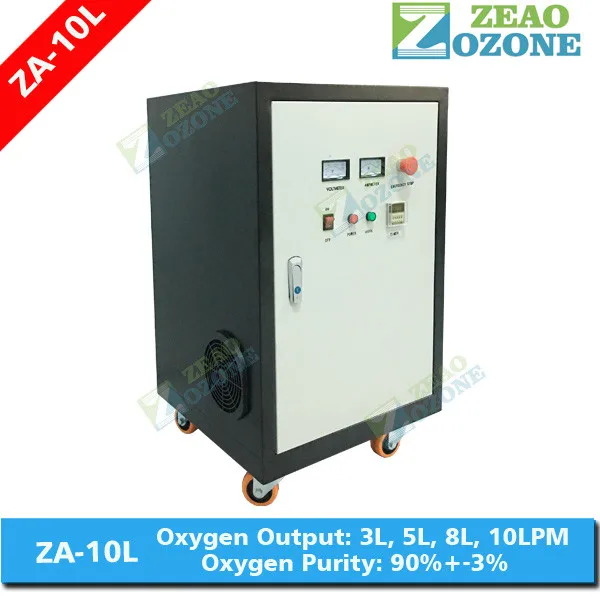

Oxygen Generator 3-10LPM

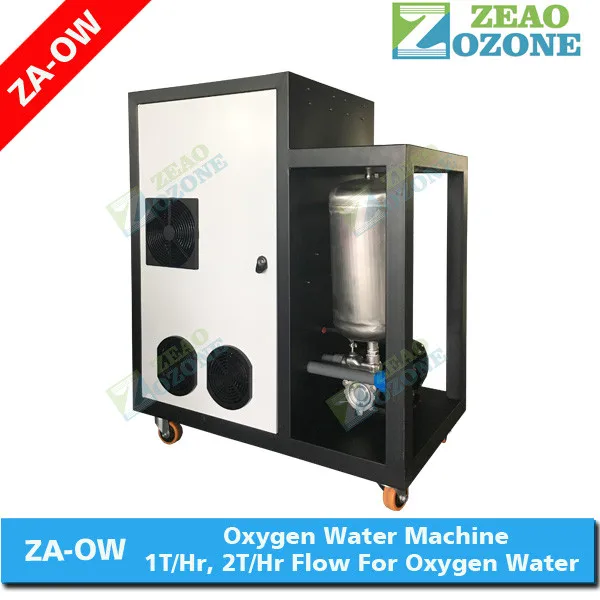

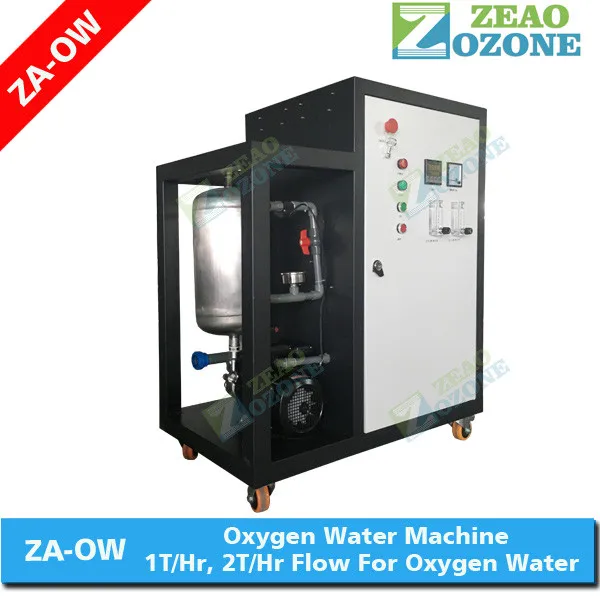

Oxygen Water Machine



Gas liquid mixing pump

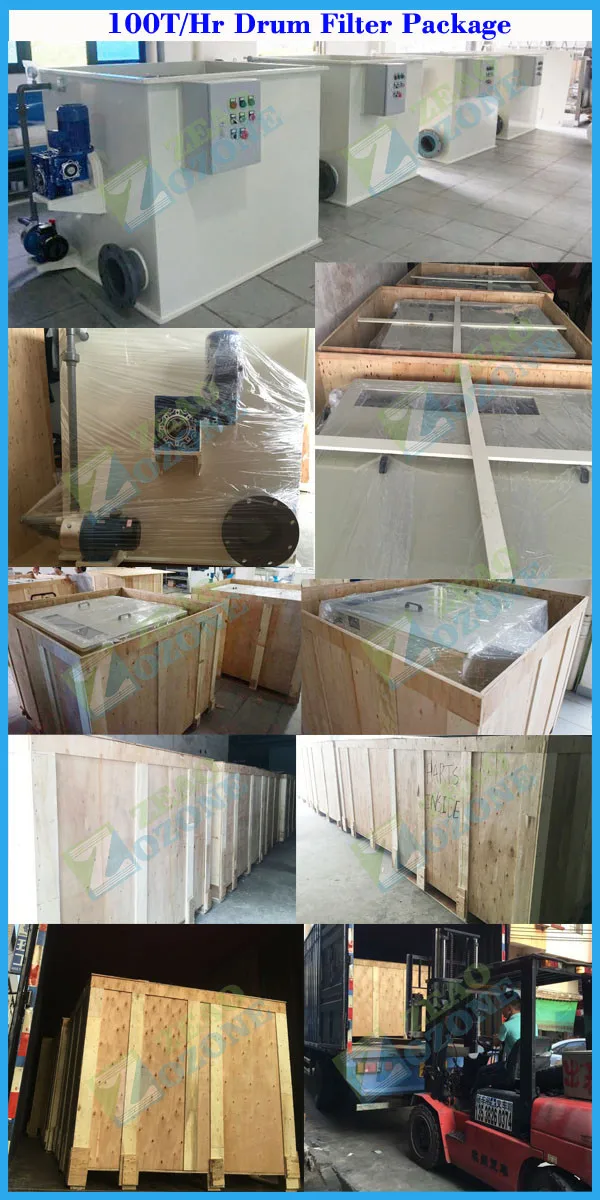

Packing detail

*************************************************************

1.  Foam and carton for each unit

2.  Carton for small unit and wooden case for large unit.







Delivery term

*************************************************************

1. By express. DHL / UPS / Fedex express usually takes about 3-5 working days to

the destination.

2. By sea or by air.

3. We will send out the goods within 3 working days for small conventional products

order after payment confirmed



Payment term

*************************************************************

Welcome to pay by T/T, Western Union, Paypal, etc.



Quality guarantee

*************************************************************

1.Committed to the standardization of the ozone market, Zeao make strict control of

every step from assembling to packing. All the products must be tested and qualified

before packaging.

2. The warranty is one year.
