Бесщеточный двигатель постоянного тока 12 В 200 Вт л.с. с низким оборотом 24

Описание и отзывы

Характеристики

12v 200w dc motor bldc motor 0.5hp low rpm gear motor 24v 5000kv 6000kv dc brushless motor



Product Description





Feature:



• Precise tuming tuning.

• High quality CNC aluminum case,ensure lightweight and optimized air flow.

• High RPM,precision ball bearing(NMB bearing,import from japan)

• Low Resistance, High Power ,silver plated solder tabs.

• Hand-wound for maximum copper fill,High Purity copper windings ensure maximun conductivity.

• Precision-balanced rotor will boost the efficiency and power performance of the motor.
• Nickel-plated sintered neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions.







Product Parameters





Model	Max Amps	Max Voltage	Max Power	KV (RPM/V)	Mounting hole depth	Mounting Screw	Shaft Diameter	Shaft Length	Diameter× Length	Plug	Weight
RT-2435/4.5D	32A	7.5V	260W	7450KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/2.5Y	27A	7.5V	260W	7250KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/5D	26A	8V	260W	6900KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/5.5D	25A	9V	260W	6000KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/3Y	24A	10V	260W	6000KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/6D	22A	10V	260W	5550KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/7D	21A	12V	260W	4750KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/4Y	18A	12V	260W	4600KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/8D	16A	13V	260W	4100KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g
RT-2435/5Y	13A	16V	260W	3650KV	4mm	Φ16 M2*6	2.3mm	12mm	Ø24X35mm	3.5mm	62g

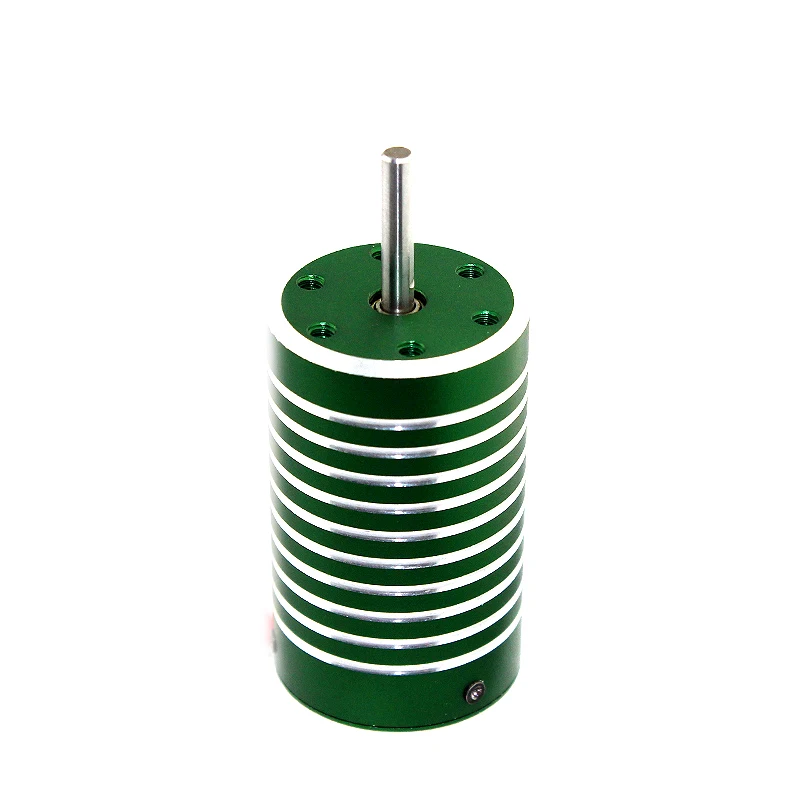

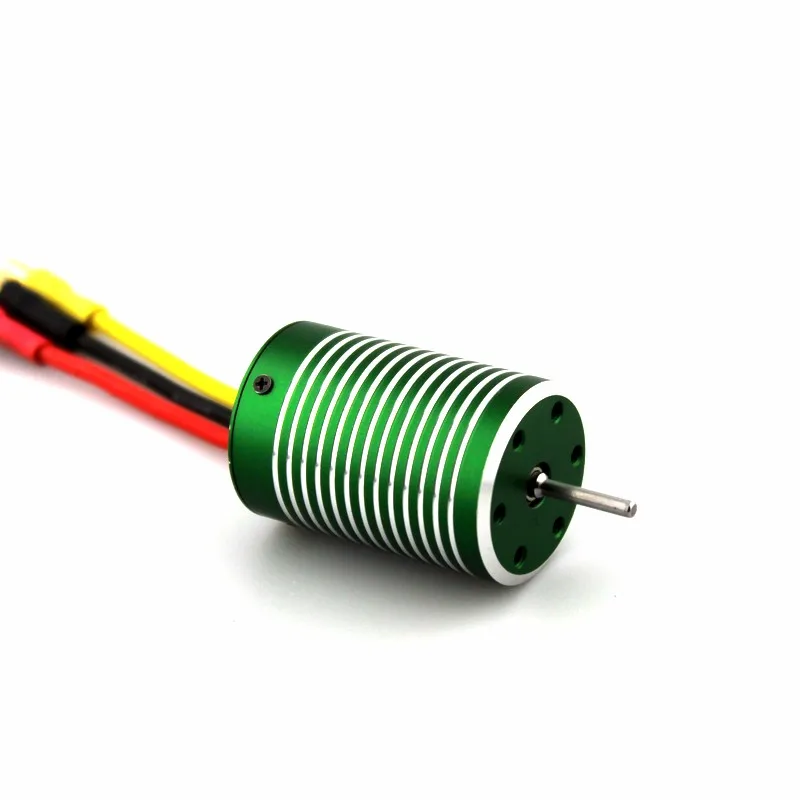

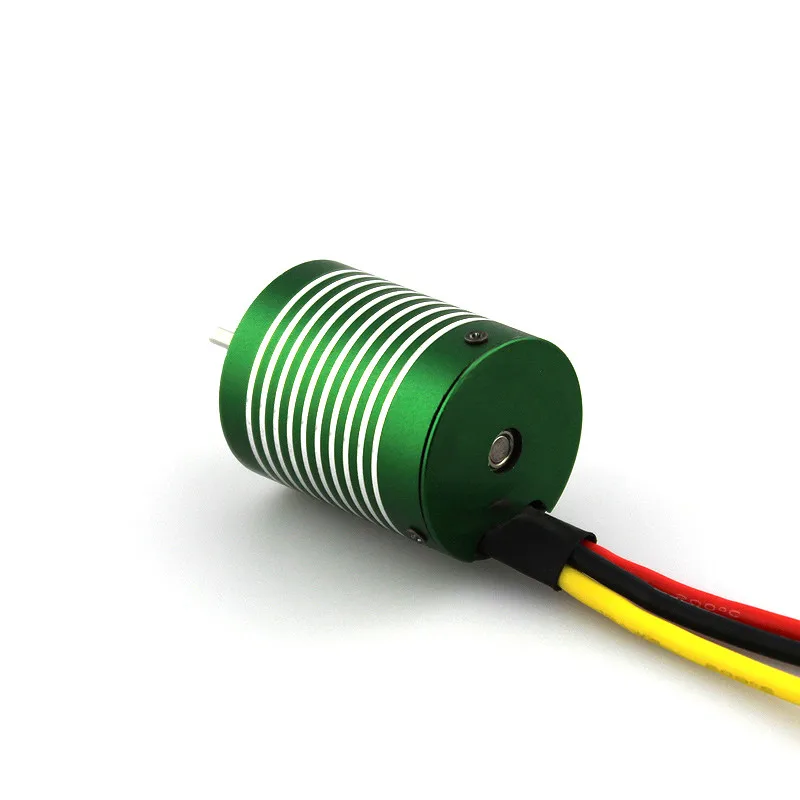

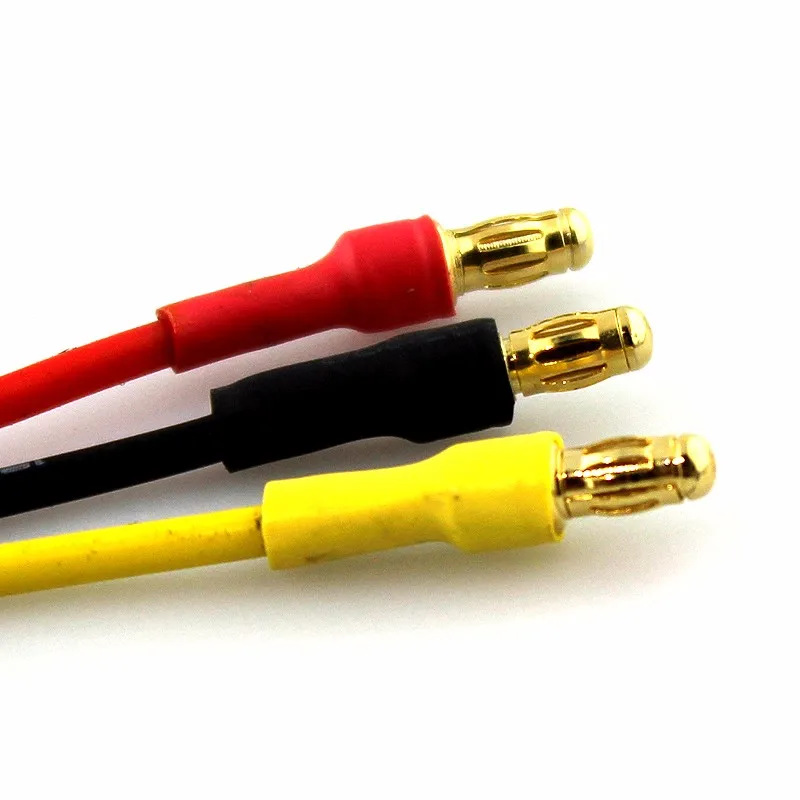

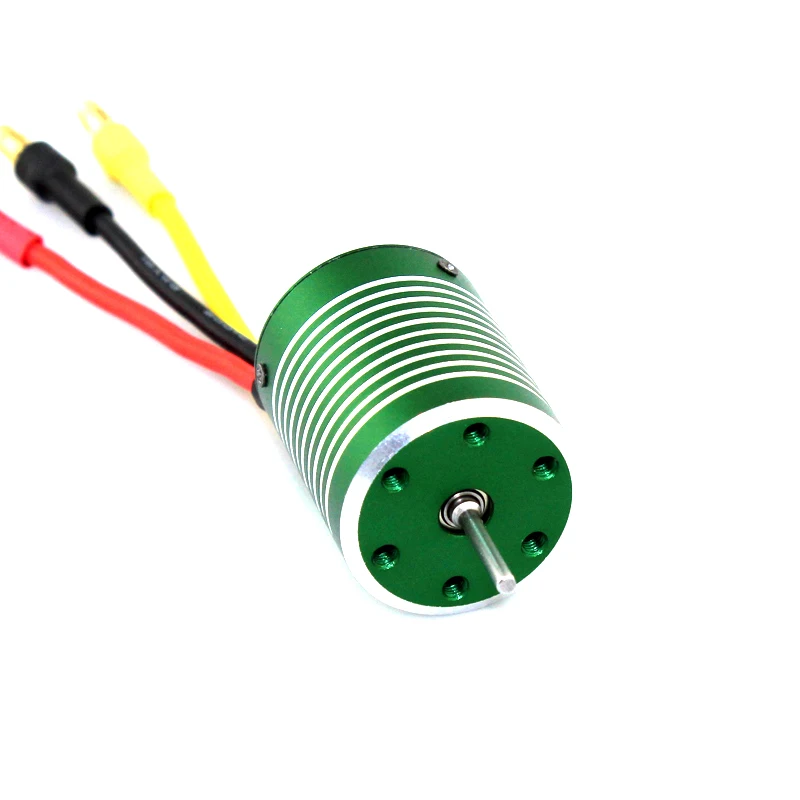

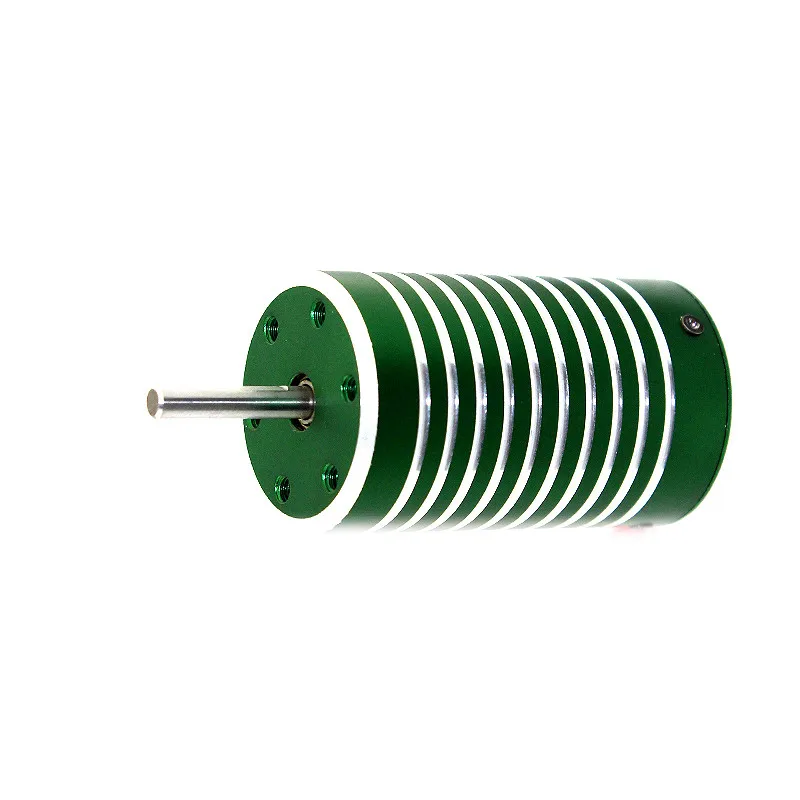

Product Pictures











 Product Packing
