Новый дизайн 15000 литров автомобиль для очистки под высоким давлением комбинированный Функциональный всасывания сточных

Новый дизайн 15000 литров автомобиль для очистки под высоким давлением комбинированный Функциональный всасывания сточных

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

New design High pressure cleaning vehicle combined function vehicle for sewage suction truck

Product Description

	Vechcile information list
Truck brand		Dongfeng kingrun
Truck model		LMT5162GLQ
Total mass		16000		Tanker volum	6.17
Rated mass		5705		Vechicle size	8995×2490×3200
Curb weight		10100		Cabin seat	3
A/D angle		20/14		F/R hang	1430/2565
Axles		2		Wheel base	5000,4700
Axles loading		6000/10000		Max speed	90
Chassis information list
Chassis model		DFL1160BX
Tyre quantity		6		Tyre size	9.00-20
Leaf spring quantity		7/9+6,8/10+8		Front track	1880
Fuel type		Desel		Rear track	1800,1860
Standard		Euro V
Engine model		B190 33 Water cooled 6 cylinder in line		Displacement/power	5900m/140kw
	Total volum		10,000L
	Fecal tank		6000L 4mm thickness tank With a man hole With a 360 degree rotation hose on top
	Water tank		4000L 5mm thickness tank
	High pressure pump		Impoted from Italy pump: pressure is 16Mpa , flow rated is 125L/min Made in china pump : pressure is 24Mpa , flow rated is 170L/min
	Fecal pump		Vertical Suction height :>=7meters Working pressure L400Pa Rotation speed:500 Theoretical pumping speed of sewage: 45L/S Axles power:4kw Input air hose diameter:50mm Filling full time :<5s Discharge time :<4s
	Fecal hose (top)		The hose length is 5meters , the diameter is 108mm The hose can rotation 360 degree
	Back reel		The reel length is 60meters The reel diameter is 19mm
	FOB shanghai price :
	CIF

High pressure jetting truck
#	Descriptions	Specifications and types
General	Truck Brand	Chengliwei (our brand)
	Chassis Brand	Dongfeng
	Approx. Dimension	820023002900 mm
	GVW./Kerb Wt.	6495/ 3400 kg
Cab	Cab Capacity	2 persons' seat
Cab	Air Conditioner	Air Conditioner is optional
Chassis	Drive Type	4X2,left hand drive
	Fuel Type	Diesel
	Engine Make & Model	Yuchai ENGINE
	Power	190 Ps / 140 KW
	Displacement	5900 ml
	Emission Standard	EURO II or EURO III or EURO IV
	Brake	Air Brake
	Wheelbase/No.of axle	4500 mm / 2
	Tyre Specfication	10.00-20
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	80 km/h
	Paint	Automative metallic paint
Structure& Function	Capacity	10 CBM
	High pressure pump	High pressure piston pump,china famous brand and Italy brand are optional
	Basic equipment:PTO.high pressure piston pump ,water pressure gauge, oil pressure gauge,oil tank ,water level inspection glass,access ladder , manhole ,tool box and reflective stickers,etc

The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.

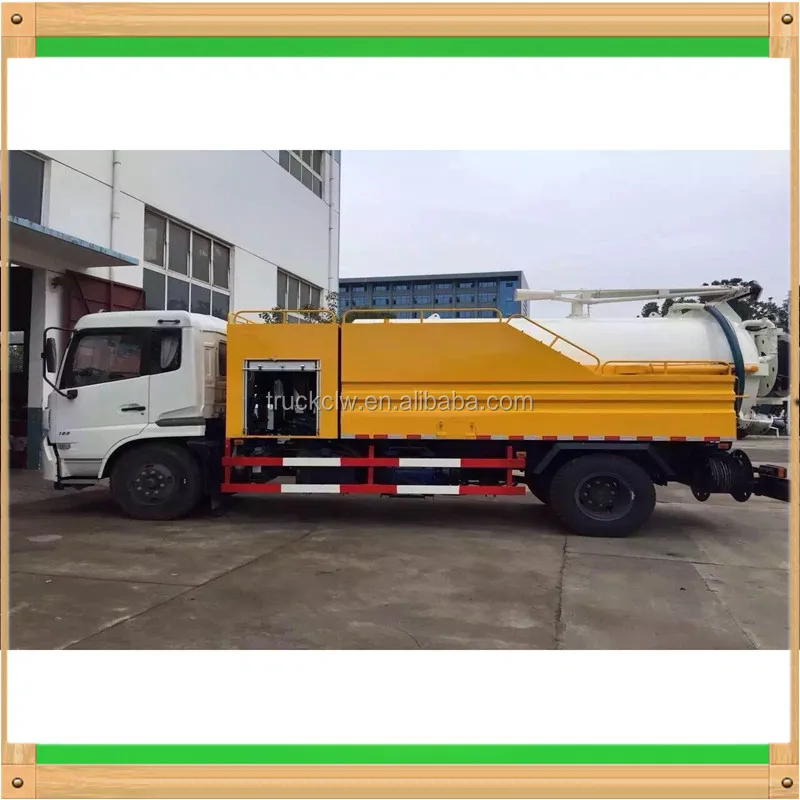

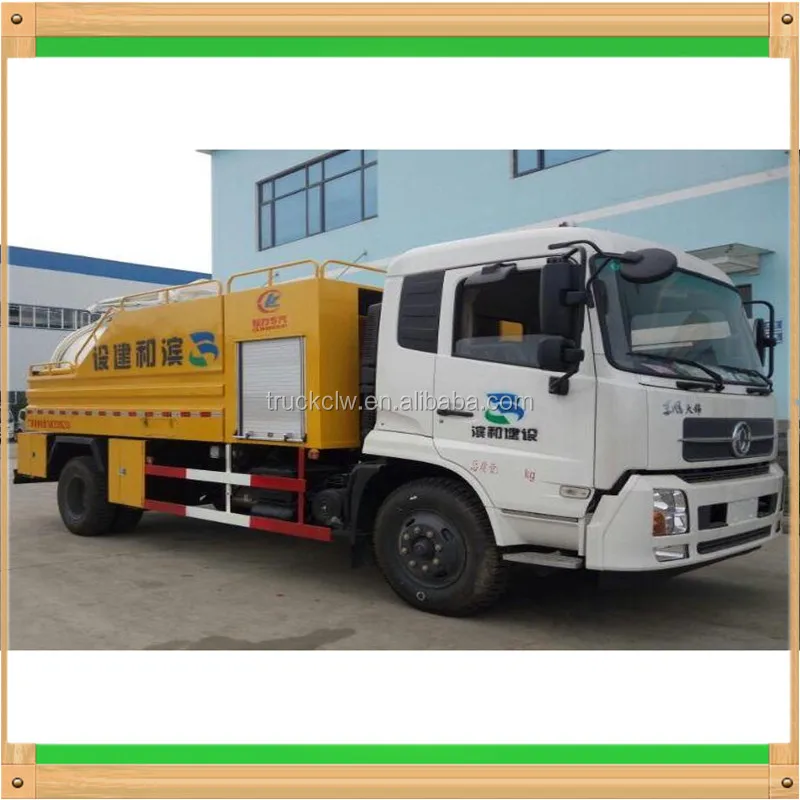

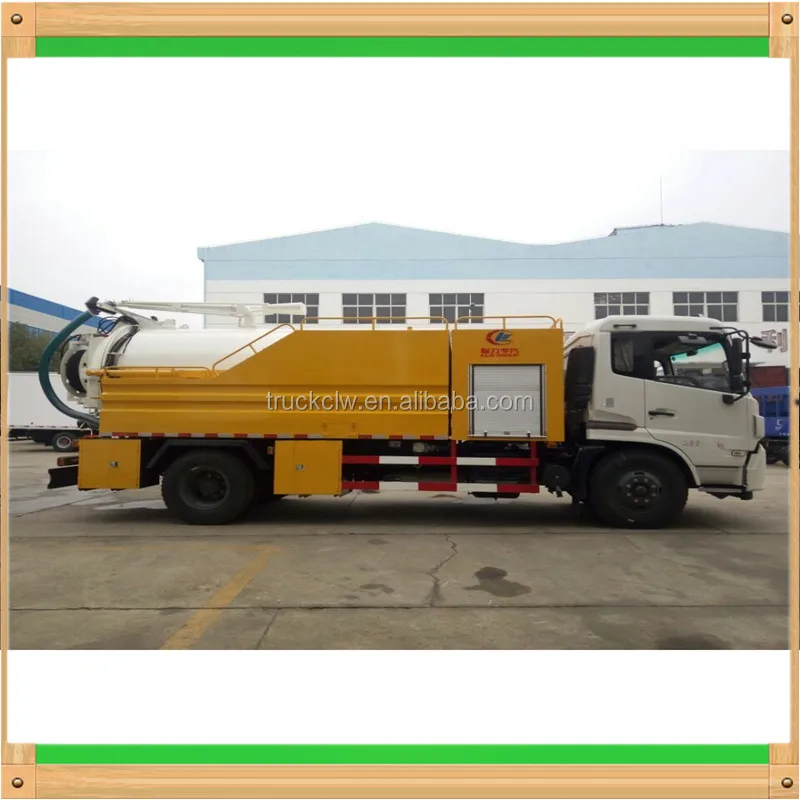

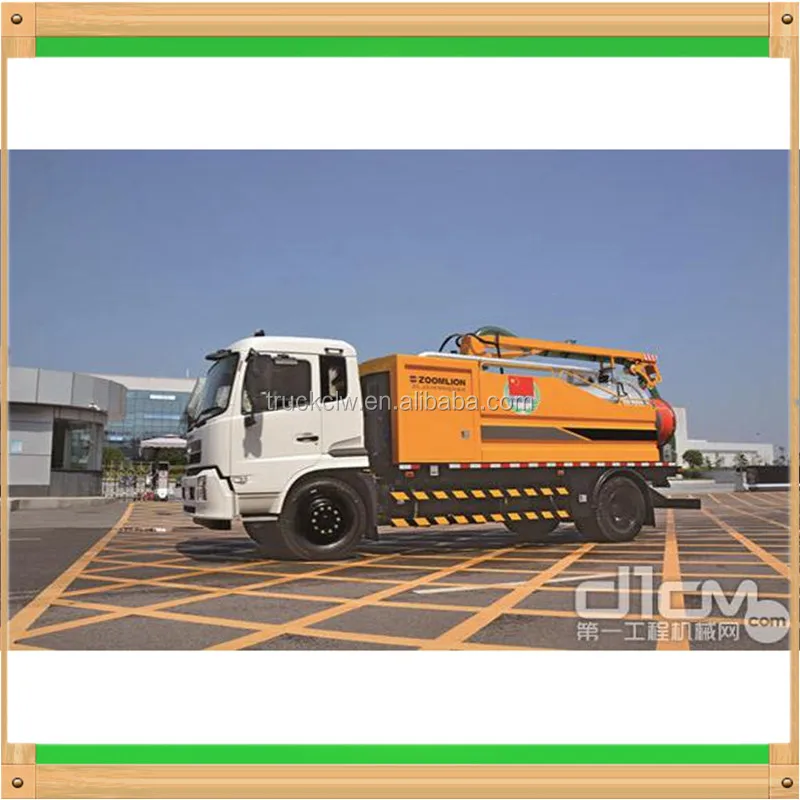

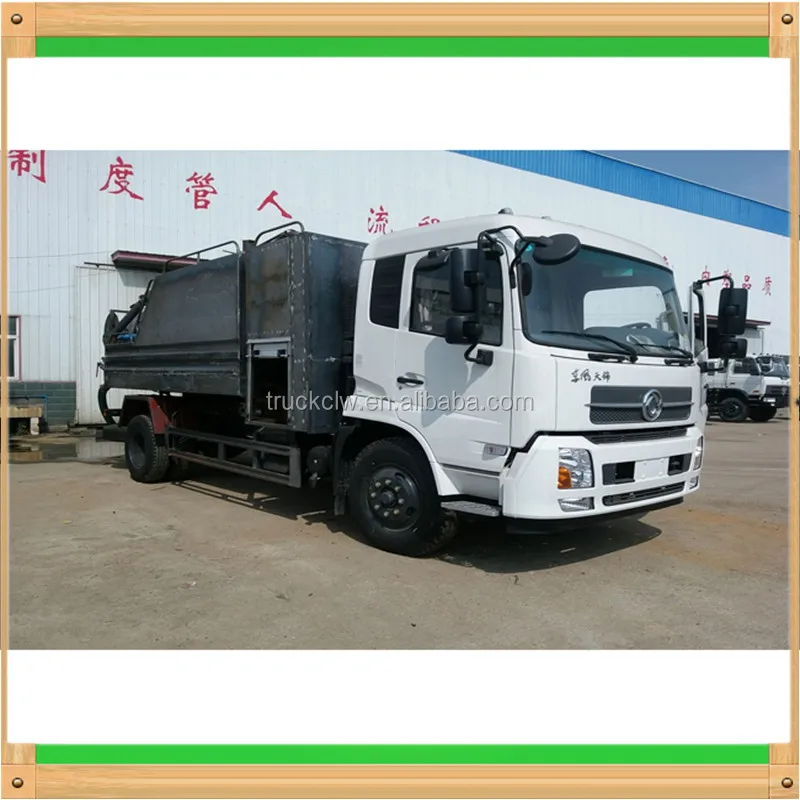

Detailed Images
