Промышленный пылесос DW773P
US $180.00
Промышленный пылесборник VJFG среднего и высокого давления для лазерной резки
- Категории: Промышленный пылесос >>>
- Поставщик: Dongguan,VILLO,Inc.
Поделиться:
Описание и отзывы
Характеристики

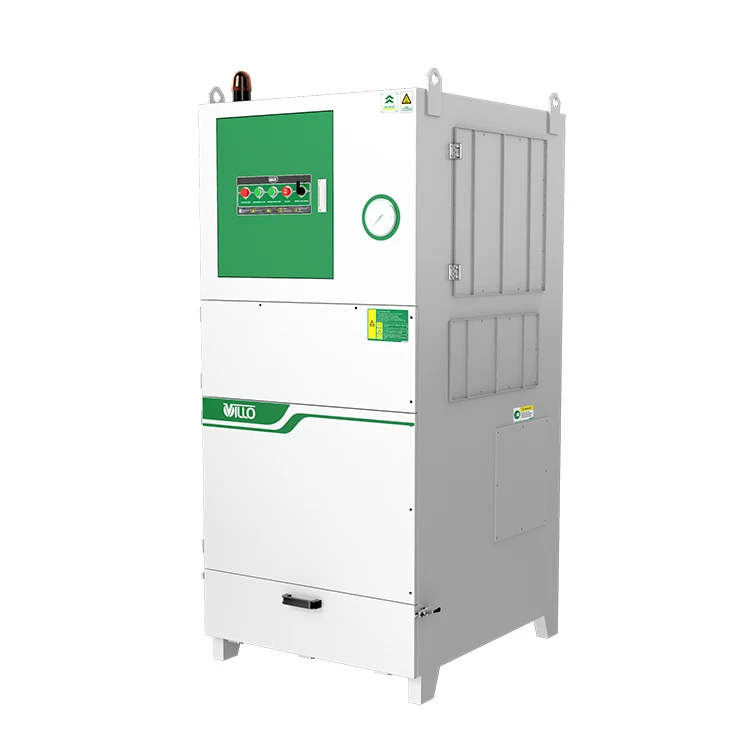

VJFG Series Air Pulse High Pressure Industrial Dust Collector
Product description
VJFG series is an industrial dust collector with high negative pressure, large air volume, pulse jet filter cleaning, stability and reliability. Can meet the dust removal needs of multiple industries and multiple processes.
Applications
A self-cleaning dust collector for continuous applications, where high collection efficiency is essential, such as grinding,
sandblasting, mixing, packaging, vibrating screen, crushing, etc.
Features
* Compact design allows placement flexibility and saves floor space.
* The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Pulse jet cleaning method for the filter makes machine to work continuously, user can set the pulse frequency depending upon the requirements.
* Real-time monitoring of machine pressure changes can quickly detect whether the filter needs to be cleaned.
* The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Pulse jet cleaning method for the filter makes machine to work continuously, user can set the pulse frequency depending upon the requirements.
* Real-time monitoring of machine pressure changes can quickly detect whether the filter needs to be cleaned.
Right elevation
Left elevation
Front elevation
Technology Parameters
Model | VJFG-1.5 | VJFG-2.2 | VJFG-3.7 | VJFG-5.5 | VJFG-7.5 | VJFG-11 | VJFG-15 | |||||||
Voltage ( V/Hz) | 380/50 | |||||||||||||
Power ( kW ) / ( HP ) | 1.5 / 2.0 | 2.2 / 3.0 | 3.7 / 5.0 | 5.5 / 7.5 | 7.5 / 10 | 11 / 15 | 15 / 20 | |||||||
Starting current (A) | 25 | 40 | 54 | 65 | 95 | 120 | 150 | |||||||
Rated current (A) | 3.5 | 5 | 7.5 | 11.5 | 15.5 | 22 | 28 | |||||||
Max air flow (m³/h )/ (CFM) | 1200 / 706 | 1980/ /1165 | 2880 / 1694 | 3000 / 1765 | 3600 / 2118 | 3900 / 2294 | 5400 / 3176 | |||||||
Max air pressure ( Pa ) / ( mmH₂O ) | 2000 / 204 | 2400 / 245 | 3800 / 388 | 4000 / 408 | 4000 / 408 | 5000 / 510 | 5000 / 510 | |||||||
Filter area (m²) / ( sq.ft ) | 11 / 118 | 22 / 237 | 22 / 237 | 44 / 474 | 44 / 474 | 44 / 474 | 66 / 710 | |||||||
Filter efficiency | 99% | |||||||||||||
Dust container capacity ( L ) / ( gal ) | 30 / 7.9 | 30 / 7.9 | 50 / 13.2 | 50 / 13.2 | 60 / 15.9 (2pcs) | 60 / 15.9 (2pcs) | 80 / 21.1(2pcs) | |||||||
Noise dB(A) | 75±2 | 77±2 | 78±2 | 82±2 | 83±2 | 83±2 | 85±2 | |||||||
Filter cleaning method | Pulse jet | |||||||||||||
Dia. air inlet (mm) / (in) | Φ100 / 3.9 | Φ150 / 5.9 | Φ200 / 7.9 | Φ200 / 7.9 | Φ200 / 7.9 | Φ250 / 9.8 | Φ250 / 9.8 | |||||||
Dimension [LxWxH] (mm) / (in) | 795*630*1730 / 31.3*24.8*68.1 | 995*725*1860 / 39.2*28.6*73.3 | 995*725*1860 / 39.2*28.6*73.3 | 1195*1035*2050 / 47.1*40.8*80.7 | 1195*1035*2050 / 47.1*40.8*80.7 | 1195*1035*2180 / 47.1*40.8*85.9 | 1325*955*2180 / 57.1*37.6*85.9 | |||||||
Weight (kg) / (lb) | 180 / 397 | 370/816 | 400 / 882 | 570/1257 | 600 / 1323 | 600 / 1323 | 800 / 1764 | |||||||
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | ||||||||||||||
Product Configuration
PTFE coated filter cartridge
Air pulse jet cleaning device
Pressure gauge
Optional Configuration
Siemens Inverter
Multi Tower Light
Soft Starter
