Product Description

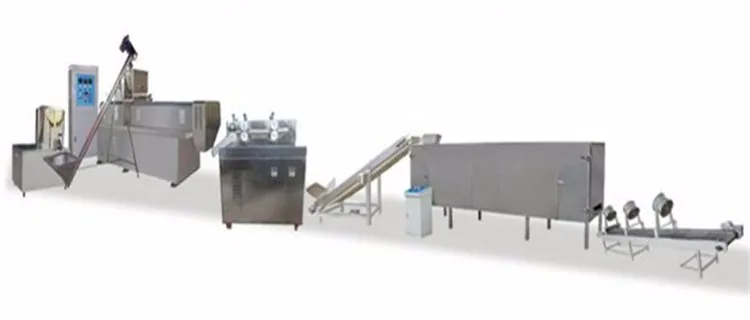

Full Auotmatic TVP soya protein production line

TVP/ TSP/Meat Analogue making machines is the newest botanical protein food process line which is developed independently according to our national conditions on the requirement of market and on the base of advanced machinery in Switzerland and America.

TVP/ TSP/Meat Analogue comes from soya flakes soya protein wheat glutein and corn starch.all the material mixed together from the double extruder by heating and high temprature . It's also quick to cook and a great source of vegetable protein without all the fat. For instance, it's excellent in chili, tacos, veggie burgers and soups. It can be boiled in high temperature with different taste or added into meal product as stuffing, the same to meat, your family will hardly be able to tell the difference.









Main Features

a. Raw materials : Adopts defatted soya flour as raw materials
b. Products : This line can be used to produce soya nuggets, TVP/TSP, soya chunks by adjusting the moulds from extruder; meanwhile it can produce cereal, snacks by adjusting the screws from extruder
c. Capacity : 100-150kg/h,240 - 260 kg/h, 500kg/h, 1ton/h
d. Flow chart : Mixing system---Extrusion system----Drying system--Packing system
e. Voltage in China: 380V/50Hz for three phase, 220V/50Hz for one phase, we can make it according to customers' Local voltage according to different countries.
f. Technical Parameter:



Model
Installed Power
Output
Size
HM65-IV
57KW
100-150KG/H
19000*2000*3500mm
HM77
88KW
400KG/H
26000*2000*3500mm
HM85
98KW
500KG/H
28500*2000*3500mm


Detailed Images


Mixing Machine

Name: Mixer            Brand: Himax
Power:4KW             Output:50KG per time
Size:1.2*0.8*1.7m

It is a mixer which can mix all the raw material (powder form) with water and liquid chemical additives.Capacity:30-50kg per batch.

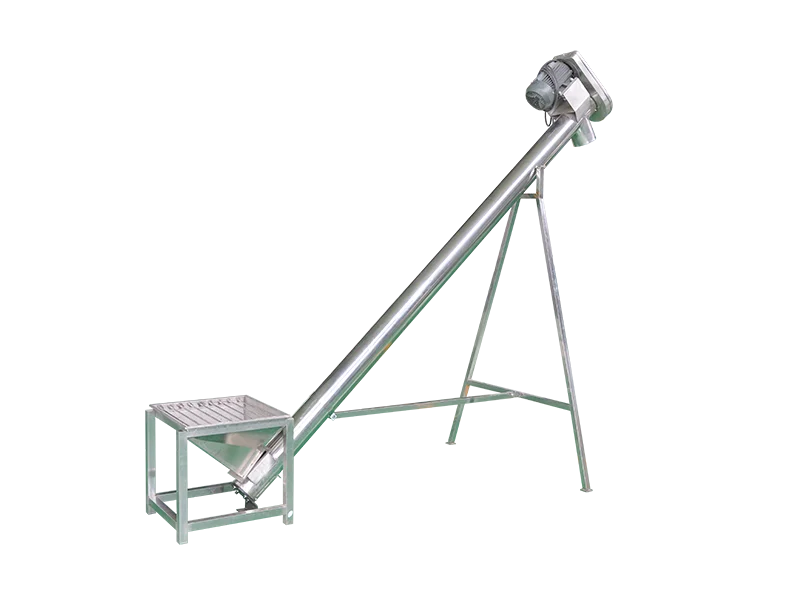

Conveyor

Name: Bliwing Cylinder                 Brand: Himax
Power:1.1KW                                   Size:3.3*0.4*1.7m

The mixed materials can be conveyed in the stainless steel roller to the feeding machine(feeder) of extruder without any leaking ,dusting and pollution; Feed quantity and speed is even and stable.

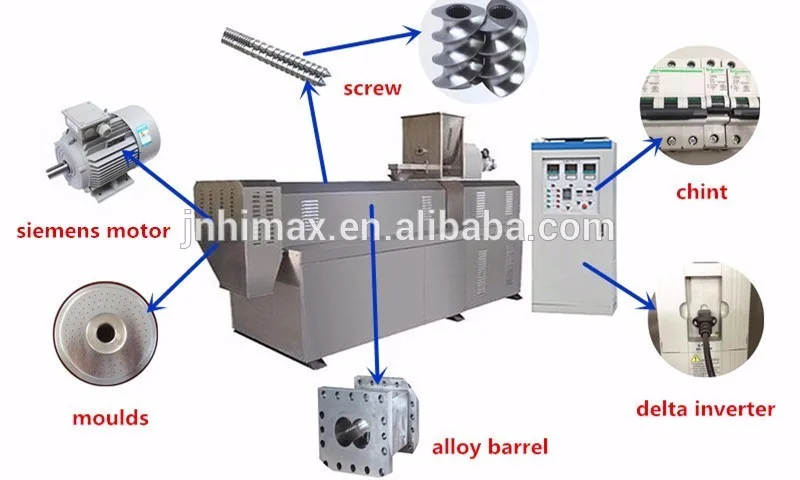

Extruder

Name:Double screw extruder       Brand: Himax
Output:100-150KG/H                    Size:2.6*0.9*1.7m

Screw is made of alloy and processed by special technical to pssess high intensity,abrasion resistant and longer using life.

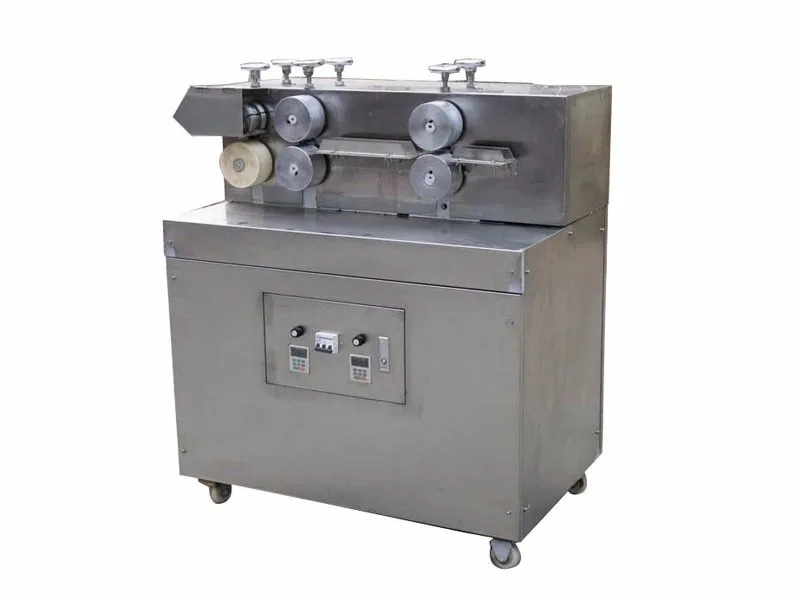

Shaping Machine

Name:Multi-function shaper       Brand:Himax
Power:1.5KW                                Size:1.4*0.8*1.2m

Multi-function shaper is made up of two parts, namely shaper and cutter. The expanded materials are towed by this machine as strip, reshaped as regular shape and smooth surface, and cut as the required size.

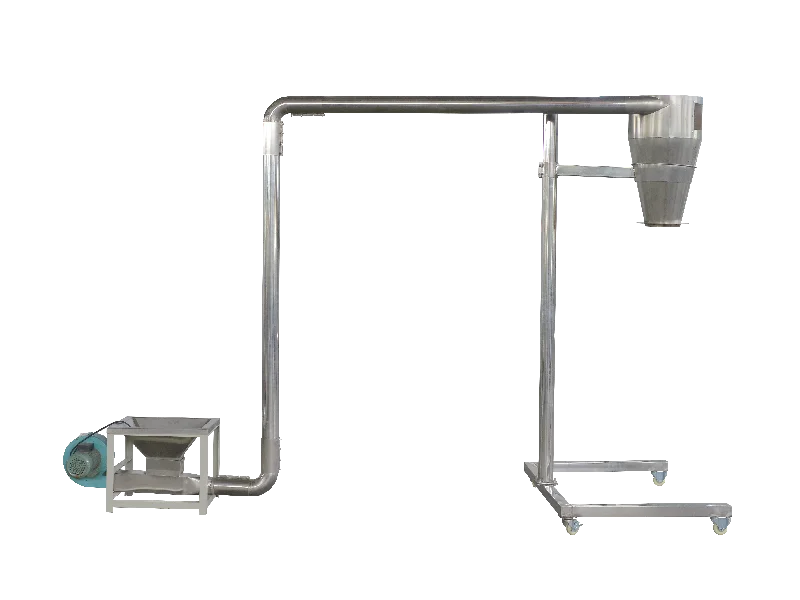

Coneyor

Name: Air conveyor
Brand: Himax
Power:0.75KW

Size:3.5*0.6*0.6m

Air conveyor conveys the food relying on the wind-force from the blower.



Drying Machine

Name:Electrical dryer      Brand:Himax
Power:60KW                  Output:200-260KG/H
Size:5.0*1.3*2.7m

It is used for drying .The net belt running speed can be controlled to change the food drying time in the dryer.Multi-layer dryer is with compact size than other type dryers.



Conveyor

Name:Cooling conveyor         Brand:Himax
Power:0.75KW*5                     Size:5.0*0.7*1.1m

There are 4 fans which can make the food be cool avoiding sticking together and be suitable for packing .The total length of the conveyor is 5 meters.It is full set stainless steel .The height of the hoister can be adjusted based on the requirement.



Detailed Images




quality control




Certifications




Packing & Delivery


Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
8 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Our Service


Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
