HHL HDK1300C нетканый станок для тиснения
- Категории: Фигурные дыроколы >>>
- Поставщик: Guangdong,Henghuilong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

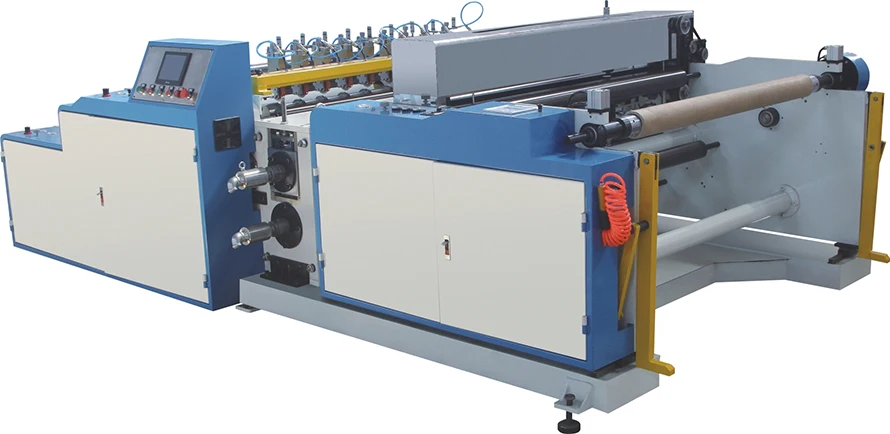

HHL HDK1300C Nonwoven Embossing Machine for Top Sheet
HDK1300B Type Non-woven Pin-hole Embossing Machine, main working in the top sheet of diaper, diaper pad and Non-woven cutting. The double station winding rack and rewinding race are controlled by auto-service electric machinery, and photoelectric auto tracing correct system, auto pulling control system. The process used high accuracy mold, high precision pole control position. The machine has such features: fast speed in pin-hole and cutting, low energy, and low air pollution.
Material flat width | 1250mm |
Total output | ~30kw |
heating mode | By transfer oil |
cutting edge allowance | +/- 1mm |
Spunbond Nowoven pin-hole embossing speed | 6-70m/min(subject to different nonwovens, different grams and softness etc.) |
Material loading speed | 20-30m/min |
Material loading mode | electrical heating |
Acceptable embossing speed | 60m/min. |
finalizing mode | Air cooling + water cooling |
Temperature | 50-200 /+-1 ℃ |
Winding and unwinding Max OD | Φ1200mm |
Max inner roll width | 1250mm |
Inner roll spec. | Φ76mm×Φ92mm |
Shaft spec. | Φ74mm |
Guide Roller Length | 1300mm |
Valid embossing width | 1250mm |
Tension pulling control range | 3~25kg/ full width |
Tension pulling control precision | ±0.5kg/ full width |
