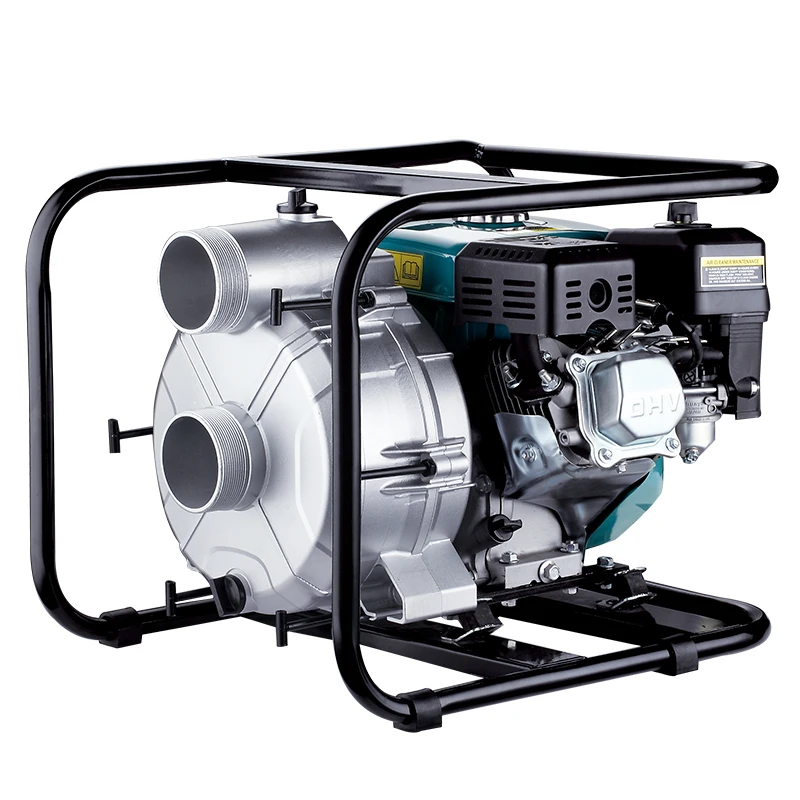

LEO 3 дюймовый 4-х тактный бензиновый двигатель сельскохозяйственного орошения водяной
- Категории: Pumps >>>
- Поставщик: Leo,Group,Pump,(zhejiang),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Banner
Products Description
Pump:
1. Anti-rust cast iron impeller and diffuser
2. Max.Suction: 8 m, Suck 5 m needs 120 s
3. Inlet/outlet: 3"
4. Max. diameter of particle: 22 mm
5. Liquid temperature range:
0℃ ~ 40℃
Engine:
1. Single cylinder, 4-stroke, Air-cooled
2. Max.power: 6.5 HP
3. Rated speed: 3600 rpm
4. Reliable engine equiped with low engine oil shut off system
1. Anti-rust cast iron impeller and diffuser
2. Max.Suction: 8 m, Suck 5 m needs 120 s
3. Inlet/outlet: 3"
4. Max. diameter of particle: 22 mm
5. Liquid temperature range:
0℃ ~ 40℃
Engine:
1. Single cylinder, 4-stroke, Air-cooled
2. Max.power: 6.5 HP
3. Rated speed: 3600 rpm
4. Reliable engine equiped with low engine oil shut off system

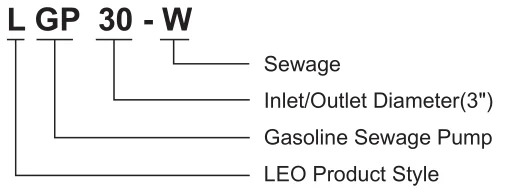

Identification Codes:
Application:
1. Can be used to transfer slurry, liquids that containing mud, sand, small
rocks and other debris diameter less than 22mm.
2. Sewage treatment for civil engineering, mines, quarries and municipal
facilities, ect.
3. Water supply and drainage for factories,mins,municipal facilities as well as
field irrigation, ect.
rocks and other debris diameter less than 22mm.
2. Sewage treatment for civil engineering, mines, quarries and municipal
facilities, ect.
3. Water supply and drainage for factories,mins,municipal facilities as well as
field irrigation, ect.
Features:
1. All new design with ergonomic feature
2. Reliable 4-stroke gasoline engine with low fuel consumption and high quality crankshaft
3. Portable, durable and compact pump frame
4. Durable sealing system with special mechanical seal
5. Optional outlet selection
6. Silicon carbide mechanical seal for increased abrasive resistance, longer
life and less maintainance
7. Pump body can easily disassembled and assembled for cleaning out
debris, or pump repair
2. Reliable 4-stroke gasoline engine with low fuel consumption and high quality crankshaft
3. Portable, durable and compact pump frame
4. Durable sealing system with special mechanical seal
5. Optional outlet selection
6. Silicon carbide mechanical seal for increased abrasive resistance, longer
life and less maintainance
7. Pump body can easily disassembled and assembled for cleaning out
debris, or pump repair

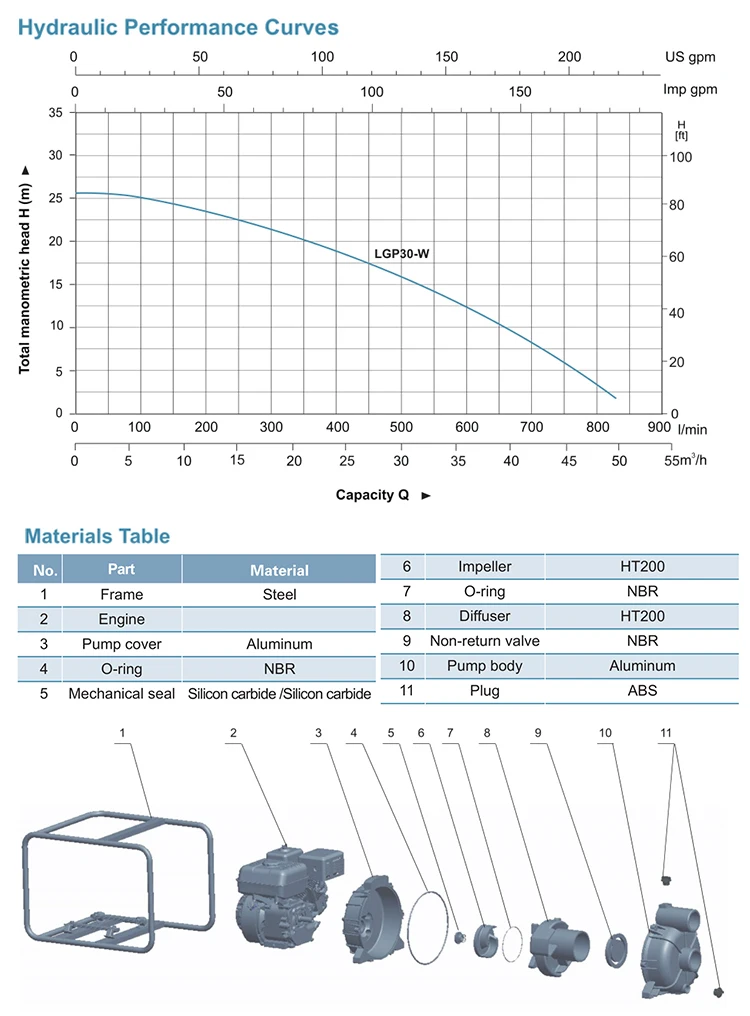

Model | Power | Fuel tank | Engine oil | Displacement | Q(m³/h) | 0 | 5 | 10 | 15 |
HP | L | L | cc | Q(l/min) | 0 | 83.3 | 166.7 | 250 | |
LGP30-W | 6.5 | 2.8 | 0.55 | 196 | H(m) | 25.9 | 25.3 | 24.1 | 22.8 |
Model | Power | Fuel tank | Engine oil | Displacement | Q(m³/h) | 20 | 25 | 30 | 35 |
HP | L | L | cc | Q(l/min) | 333.3 | 416.7 | 500 | 583.3 | |
LGP30-W | 6.5 | 2.8 | 0.55 | 196 | H(m) | 21.2 | 18.8 | 16.1 | 13.2 |
Model | Power | Fuel tank | Engine oil | Displacement | Q(m³/h) | 40 | 45 |
HP | L | L | cc | Q(l/min) | 666.7 | 750 | |
LGP30-W | 6.5 | 2.8 | 0.55 | 196 | H(m) | 9.6 | 6.1 |

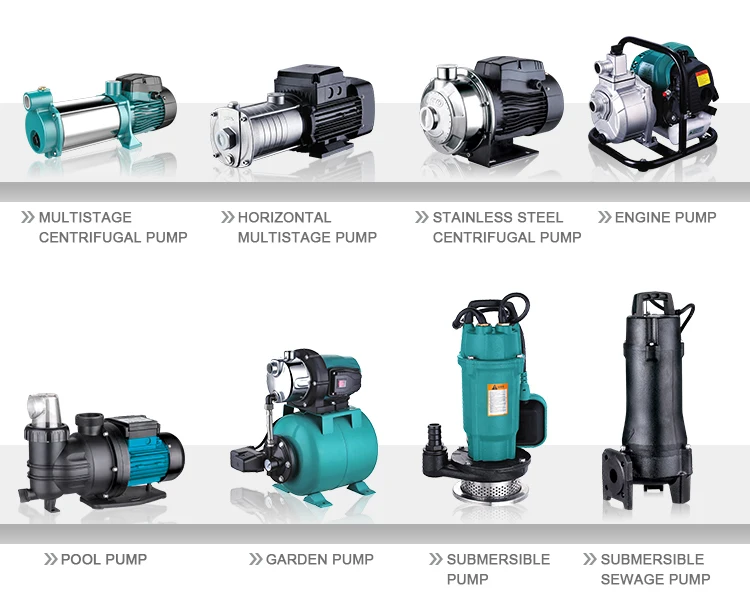

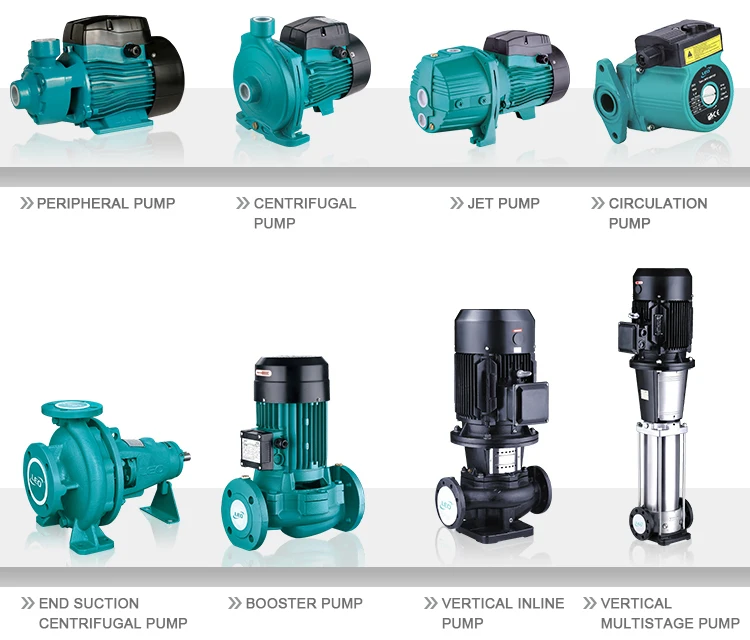

More Products
More catalogue
Company Profile
TO KNOW LEO
LEO Group (stock code 002131) is a national high-tech enterprise engaged in R&D, design, manufacture, sales and service of all series pumps and systems.

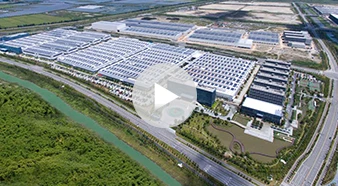

Wenling Headquarters
300,000 ㎡
Hunan Manufacturing base
92.635 ㎡
Liaoning Manufacturing Base
10.000 ㎡
Packing&Shipping
FAQ
Q1. Are you a manufacturer or a trading company?
A1: We are the biggest pump manufacture of China.
Q2. Where is LEO factory?
A2: Wenling city, Zhejiang province.
Q3. What about the pay ment?
A3: T/T: 30% before shipment, the rest paid against B/L copyL/C: L/C at sight, L/C 30 days, L/C 60days.
Q4. What about delivery time?
A4: 35 days after the receipt of the payment.
Q5. About shipment?
A5: By sea, By air and By express delivery.
Q6. About sample?
A6: Available.
A1: We are the biggest pump manufacture of China.
Q2. Where is LEO factory?
A2: Wenling city, Zhejiang province.
Q3. What about the pay ment?
A3: T/T: 30% before shipment, the rest paid against B/L copyL/C: L/C at sight, L/C 30 days, L/C 60days.
Q4. What about delivery time?
A4: 35 days after the receipt of the payment.
Q5. About shipment?
A5: By sea, By air and By express delivery.
Q6. About sample?
A6: Available.
