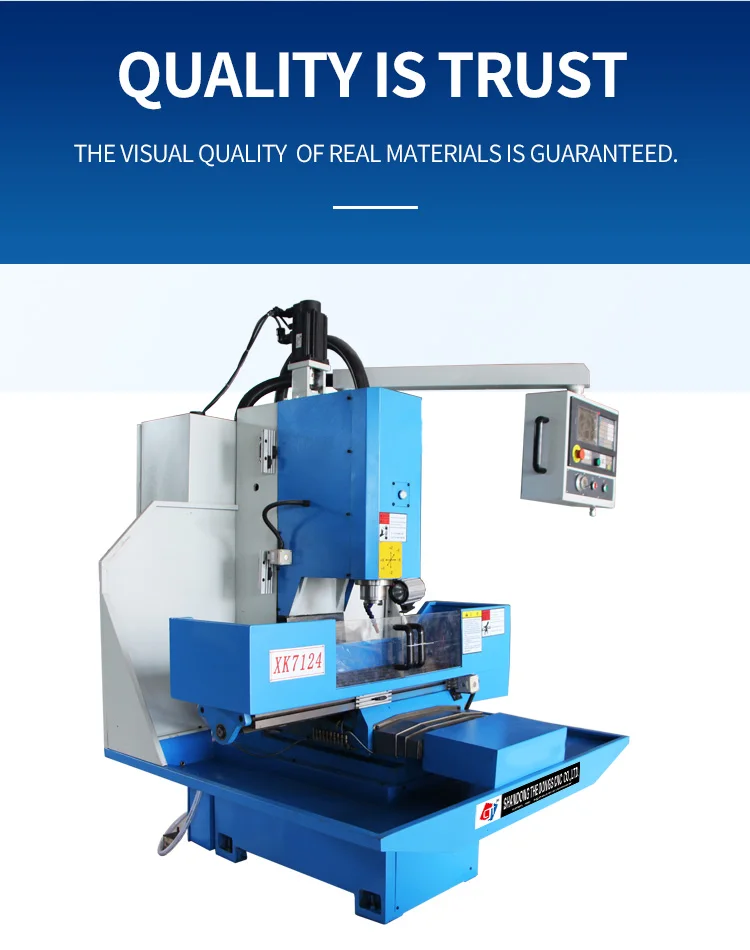

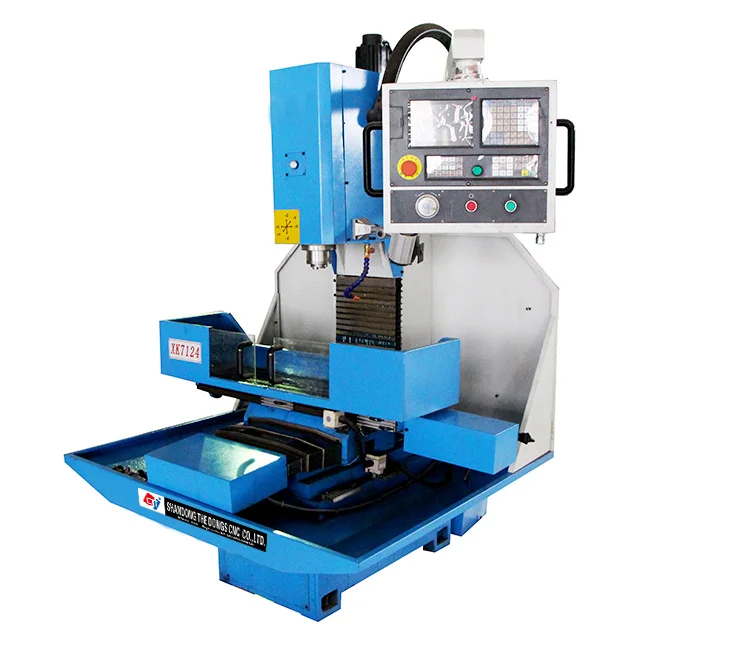

Высокопроизводительный Китайский Небольшой обрабатывающий центр XK7124 фрезерный станок с

Specifications

Unit

Xk7124

Table size

mm

900*240

Table Max load

kg

200

X/Y/Z axis travel

mm

400X240X400

Distance between spindle center and column guide surface

mm

300

Distance between spindle end face and worktable surface

mm

450

X/Y/Z Max.feed speed

m/min

10000

The spindle Max. speed

r/min

8000

The spindle taper hole

Type

BT40

Spindle motor

kw

2.2

cutting feed rate

mm/min

1-3000

Z axis servo power

N.M

15

X/Y axis servo power

N.M

10

Positioning accuracy

mm

±0.02

Repeat positioning accuracy

mm

±0.02

Weight

kg

1500

Dimension

Mm

1800*1600*2100
