One Way Bearing Manufacturer Sprag Clutch One Way US10 AS10
Product Description
Data Sheet
| Item | US10 |
| Material | GCr15 |
| Bore size | 10 mm |
| Outer dia. | 30 mm |
| Width | 9 mm |
| Torque | 6.8 Nm |
| Resistance torque | 0.004 Nm |
| Weight | 0.04 kg |
| Port | Shanghai;Ningbo |
| Delivery time | 10-15 days |
Feature
The Us series freewheels are not self-centering. It is therefore required to place one or two bearings next to the freewheel so that the outer race can rotate centrally to the inner race.
US freewheels have ball bearings with the same dimensions as the 62.. Series.
The torque forces are transmitted from the shaft to the inner race by means of a key and from the outer race to the seating by means of an interference fit on the r6 tolerance of the external diameter.
Shaft tolerance must be either h6 or j7; the tolerances for the seating must be either h7 or J6.
Before being put onto service, the freewheels must be lubricated with suitable lubricants following the instructions given on page 12. Oil lubrication is essential when a high number of rotations in neutral is reached.

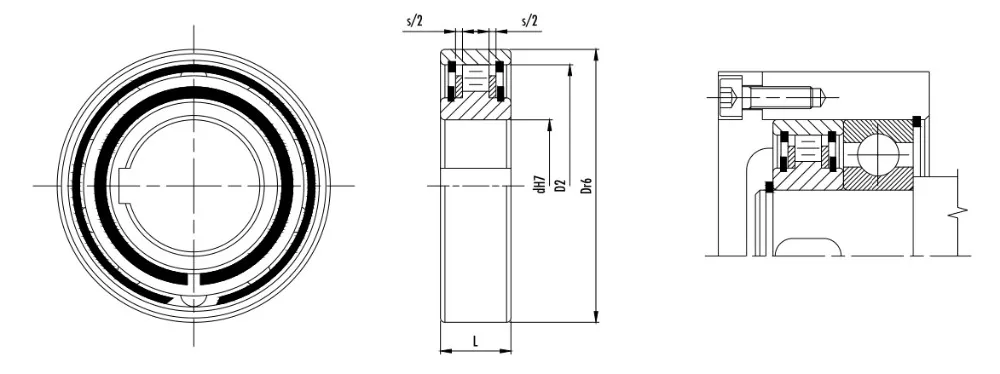

Different Sizes For Your Reference
Type | dH7 | Dr6 | L | D2 | s | Weight | nMax (min-1)1 | nMax (min-1)2 | Tn | Resistance |
US 8 | 8 | 24 | 8 | 19 | 1 | 0.03 | 4350 | 6600 | 3.8 | 0.003 |
US 10 | 10 | 30 | 9 | 25 | 1 | 0.04 | 3550 | 5200 | 6.8 | 0.004 |
US 12 | 12 | 32 | 10 | 26 | 1 | 0.05 | 3200 | 4850 | 13 | 0.005 |
US 15 | 15 | 35 | 11 | 30 | 1 | 0.1 | 2900 | 4300 | 14 | 0.007 |
US 17 | 17 | 40 | 12 | 34 | 1 | 0.11 | 2600 | 3700 | 28 | 0.01 |
US 20 | 20 | 47 | 14 | 40 | 1 | 0.12 | 2200 | 3300 | 40 | 0.02 |
US 25 | 25 | 52 | 15 | 45 | 1 | 0.15 | 2000 | 2900 | 56 | 0.03 |
US 30 | 30 | 62 | 16 | 55 | 1 | 0.25 | 1600 | 2500 | 90 | 0.08 |
US 35 | 35 | 72 | 17 | 62 | 1 | 0.33 | 1350 | 2000 | 150 | 0.09 |
US 40 | 40 | 80 | 18 | 70 | 1 | 0.42 | 1200 | 1900 | 185 | 0.1 |
US 45 | 45 | 85 | 19 | 74 | 1 | 0.46 | 1100 | 1650 | 218 | 0.11 |
US 50 | 50 | 90 | 20 | 80 | 1 | 0.5 | 900 | 1450 | 230 | 0.13 |
US 55 | 55 | 100 | 21 | 90 | 1 | 0.65 | 800 | 1300 | 313 | 0.14 |
US 60 | 60 | 110 | 22 | 98 | 1 | 0.8 | 700 | 1100 | 513 | 0.26 |
Notes
tMAX = 2 x Tn
1) Inner race is faster than outer race
2) outer race is faster than inner race

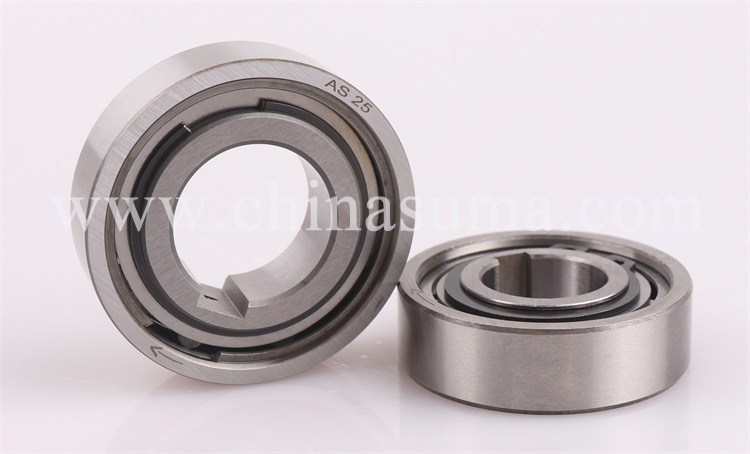

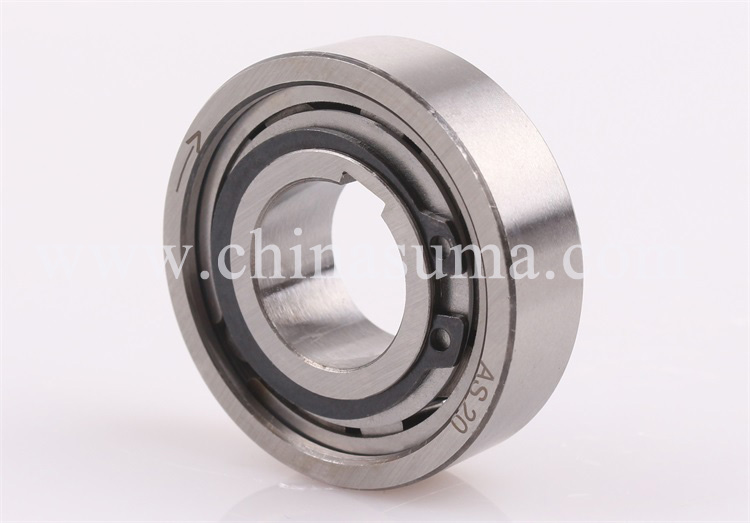

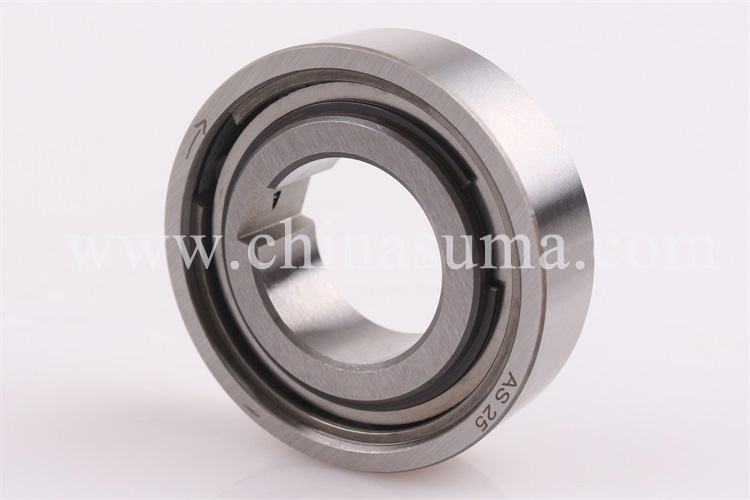

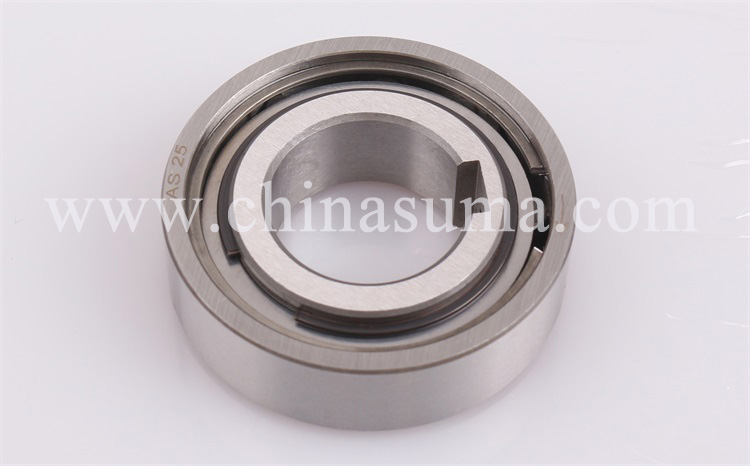

Detailed Image
Production Flow
Certifications
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality
Clients Visit
FAQ

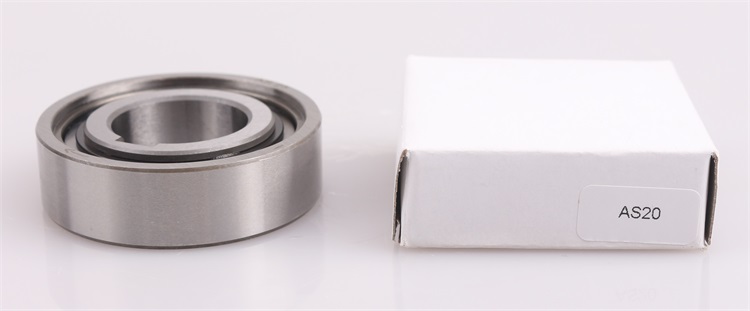

Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
