Заводская цена пресс-формы из сплава и ручные метчики быстрорежущей

Описание и отзывы

Характеристики

GSR TAP WRENCH  MADE OF DIE-CAST ZINC

These brand new GSR tap wrenches were completely redesigned. This ensures a higher resilience of the tool body. The hardened, adjustable clamping jaw can be adjusted via a guide groove milled into the chuck between the jaw and the handle. As a result, the jaw can be adjusted precisely and the tap clamped perfectly. The body is made of high-quality die-cast zinc and coated with an environmentally friendly powder coating, which is applied using a state-of-the-art closed-circulation coating system.

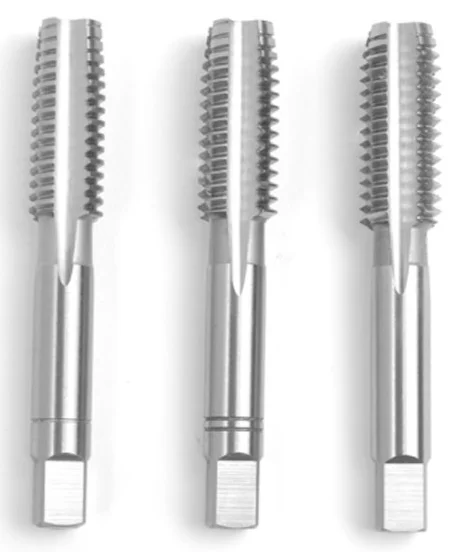

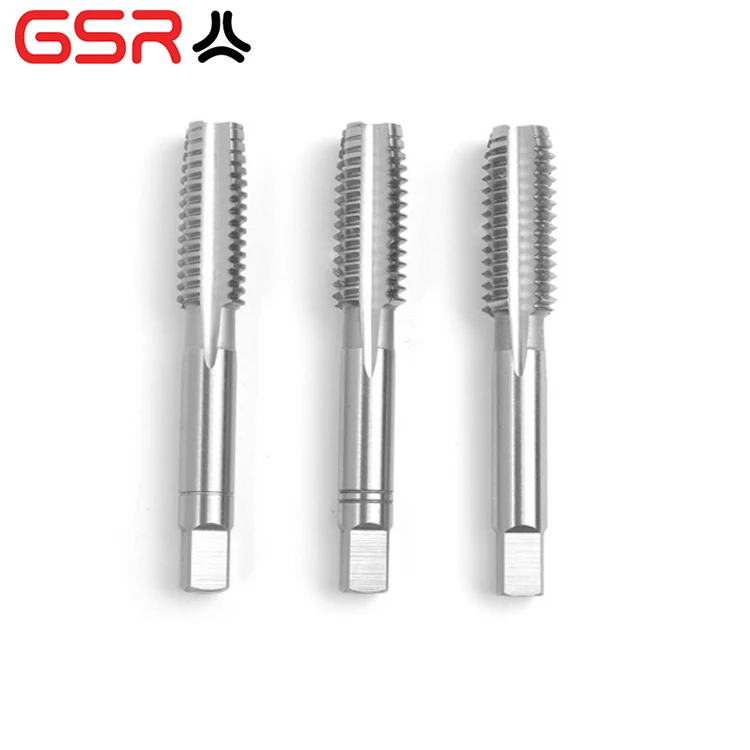

HAND TAPS	TECHNICAL INFORMATION
	Standard	DIN 2184-2 (~ DIN 352)	Hole type	Through/blind hole
	Thread	BSW	Direction	Right
	Material	HSS-G	Raw material	Steel

BSW 1/16	60	1,2	32	8	2,5	2,1
BSW 3/32	48	1,9	40	9	2,8	2,1
BSW 1/8	40	2,6	40	11	3,5	2,7
BSW 5/32	32	3,2	45	13	4,5	3,4
BSW 3/16	24	3,8	50	16	6,0	4,9
BSW 1/4	24	4,6	56	17	6,0	4,9
BSW 5/16	20	5,1	56	19	6,0	4,9
BSW 3/8	18	6,5	63	22	6,0	4,9
BSW 7/16	16	7,9	70	24	7,0	5,5
BSW 1/2	14	9,3	70	24	8,0	6,2
BSW 9/16	12	10,5	75	28	9,0	7,0
BSW 5/8	12	12,0	80	30	11,0	9,0
BSW 3/4	11	13,5	80	32	12,0	9,0
BSW 3/4	10	16,5	95	34	14,0	11,0
BSW 7/8	9	19,5	100	34	18,0	14,5









Q:What is your MOQ?
A:It depends on specific products.please contact us for more information
Q:What if the products arrived damaged?
A:Send us the photo of damaged products to confirm,we will replace them in your next order
Q:What is your delivery terms?
A:We accept EXW,FOB,etc. We will choose the most convenient one foe you with less cost
Q:How many markets do you have?
A:Germany Dubai Russia etc
