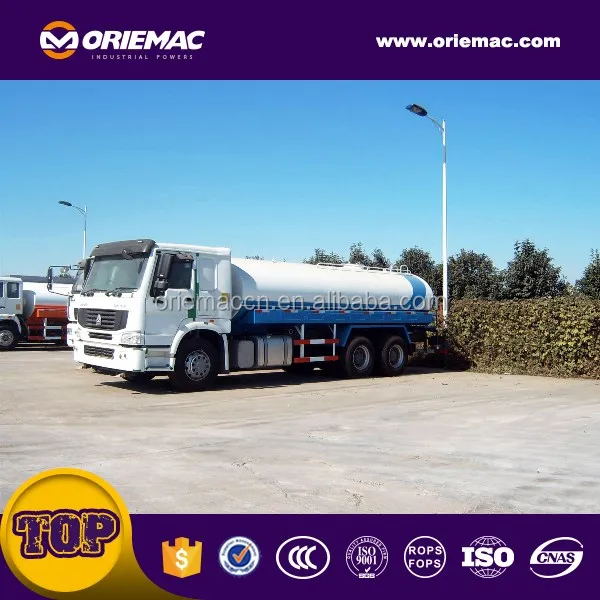

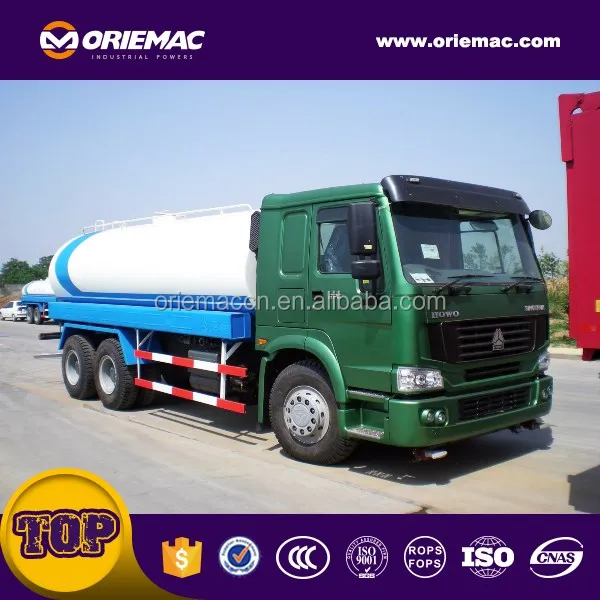

SHACMAN 20cbm 2000L 6*4 Water Tank Truck For Sale
Product Description
We have exported this model to Algeria before.
| WATER TANK TRUCK- ZZ1257N4617 | |||
| HOWO /6x4 series /4600+1350 wheelbas” Technology Cabin | |||
| 6x4,WATER TANK TRUCK, HOWO76 cabin(Single sleeping bed,A/C), with CNHTC WD615.69 engine, 336HP, with HW15710 transmission,ZF8098 steering, with 12.00R20 tyres, etc. Details for the specification List | |||
| SPECIFICATION | |||
| Tank volume:m³ | 20 m³ | ||
| Dimension(Lx W xH) | 10350×2496×3048 | ||
| Approaching angle/Departure angle(°) | 19/23 | ||
| Overhang(front/rear) (mm) | 1500/1870 | ||
| Wheelbase (mm) | 4600 | ||
| Max speed(km/h) | 75 | ||
| Curb weight(kg) | 13540 | ||
| Engine (Steyr technology, made in China) | Model | WD615.69, water-cooled, four strokes,6 cylinders in line with water cooling, turbocharged and inter-cooling, directly injection | |
| Fuel type | Diesel | ||
| Power, max(kW/rpm) | 247/2200 | ||
| Emission | EURO II | ||
| Fuel tanker capacity (L) | 300 | ||
| Transmission | Model | HW13710CL,10 forward&2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
| Steering system | Model | ZF8098 | |
| Front axle | HF7 | ||
| Rear axle | MCY13 | ||
| Tyre | 295/80R22.5 | ||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cab | HOWO70 cab(no bed,A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | ||
Packaging & Shipping
RO-RO or 40FR
