Product Description
Electronic Customized PCBA Manufacturer,OEM/ODM SMT/DIP PCB assembly service
U-C Group Limited is Electronic PCB & PCBA manufacturer
Specifications:
1.Fast and one-stop service
2.Accept PCB design,clone and OEM/ODM service.
3.PCB+Components+PCBA
4.Quote within 24 hours with China and US office.
PCB Techinecal Capacity
|
Layers |
Mass production: 2~58 layers / Pilot run: 64 layers |
|
Max. Thickness |
Mass production: 394mil (10mm) / Pilot run: 17.5mm |
|
Material |
FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT, PPO, PPE, Hybrid, Partial hybrid, etc. |
|
Min. Width/Spacing |
Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ) |
|
Max. Copper Thickness |
UL certificated: 6.0 OZ / Pilot run: 12OZ |
|
Min. Hole Size |
Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm) |
|
Max. Panel Size |
1150mm × 560mm |
|
Aspect Ratio |
18:1 |
|
Surface Finish |
HASL,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger |
|
Special Process |
Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control. |
PCBA technical Capacity
|
SMT |
Position accuracy:20 um |
|
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP |
|
|
Max. component height::25mm |
|
|
Max. PCB size:680×500mm |
|
|
Min. PCB size:no limited |
|
|
PCB thickness:0.3 to 6mm |
|
|
PCB weight:3KG |
|
|
Wave-Solder |
Max. PCB width:450mm |
|
Min. PCB width: no limited |
|
|
Component height:Top 120mm/Bot 15mm |
|
|
Sweat-Solder |
Metal type :part, whole, inlay, sidestep |
|
Metal material:Copper , Aluminum |
|
|
Surface Finish:plating Au, plating sliver , plating Sn |
|
|
Air bladder rate:less than20% |
|
|
Press-fit |
Press range:0-50KN |
|
Max. PCB size:800X600mm |
|
|
Testing |
ICT,Probe flying,burn-in,function test,temperature cycling |
Our service
U-C group limited with customers to provide them with the highest-quality IC assembly services to achieve their goals. Our flexibility is in meeting customer requirements and our superior customer service. We help companies introduce their new products to market in the fastest time possible by providing high quality, quick-turn assembly.We assembles ICs in prototype and production volumes to help you qualify your designs and provide quality samples to your customers.

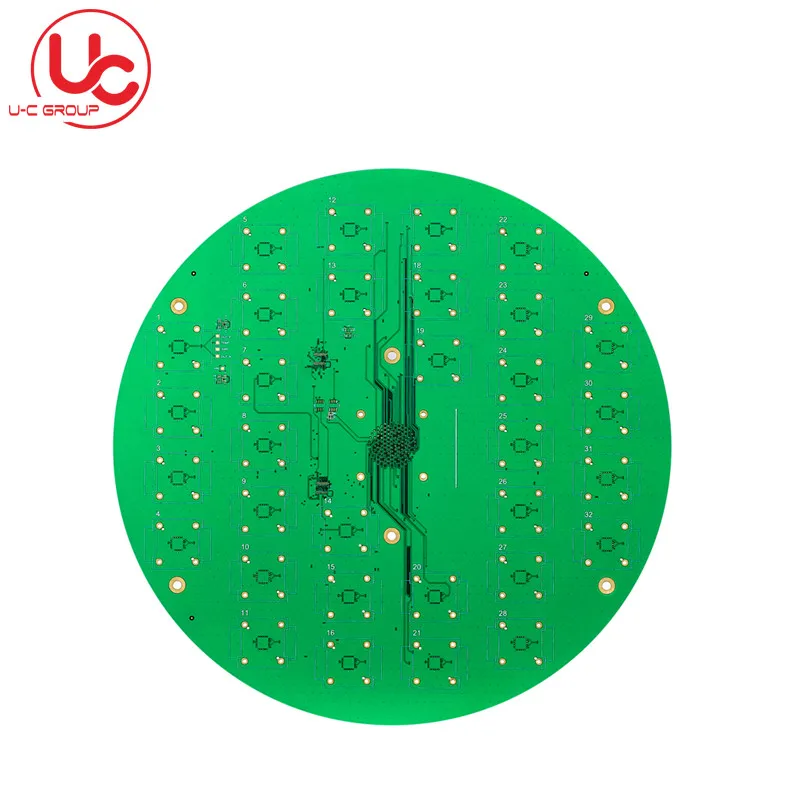

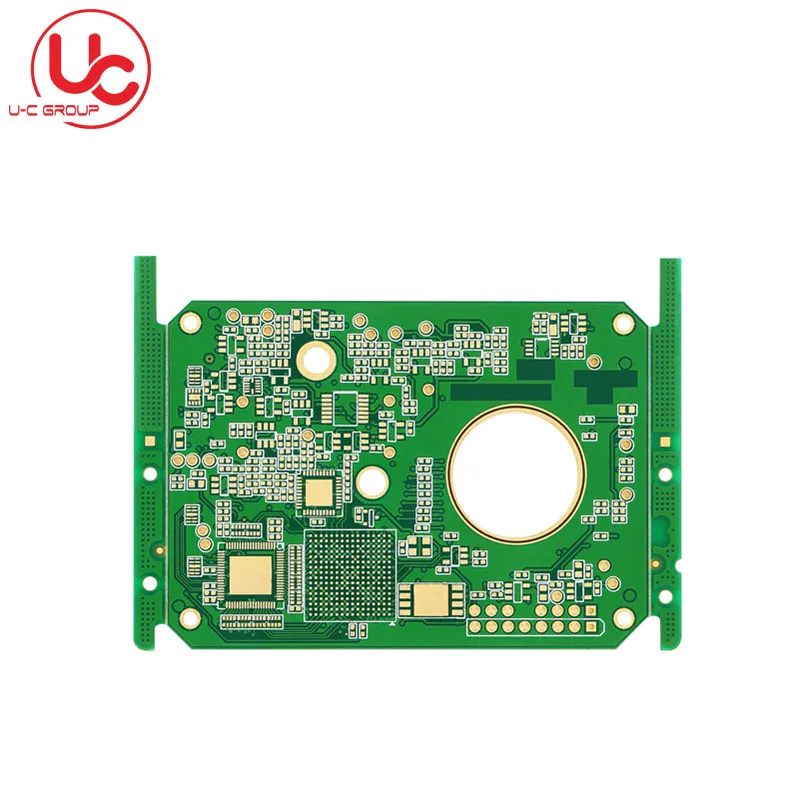

Products Show

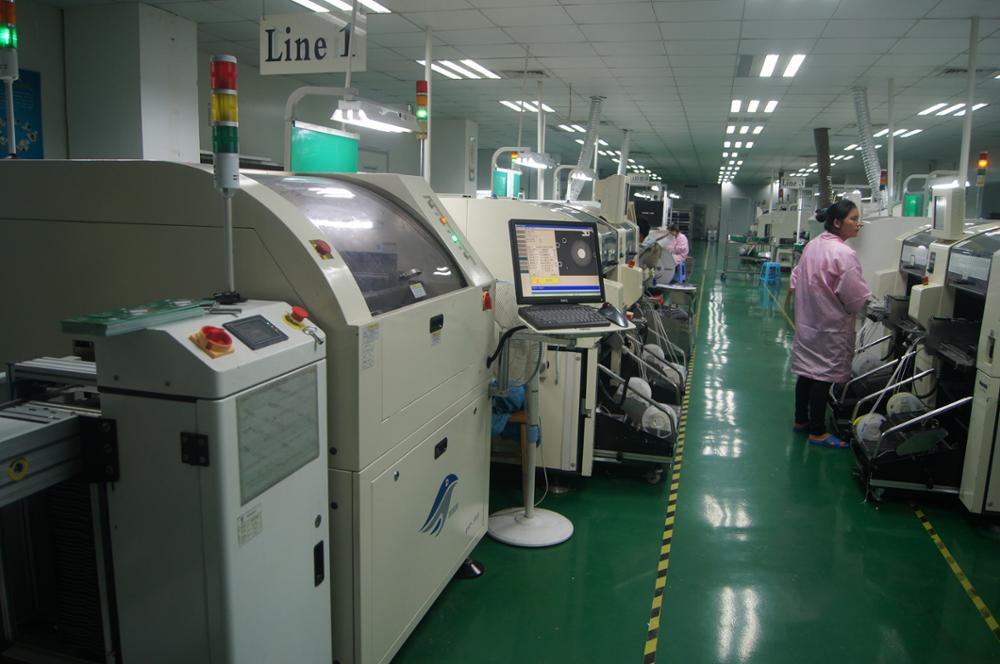

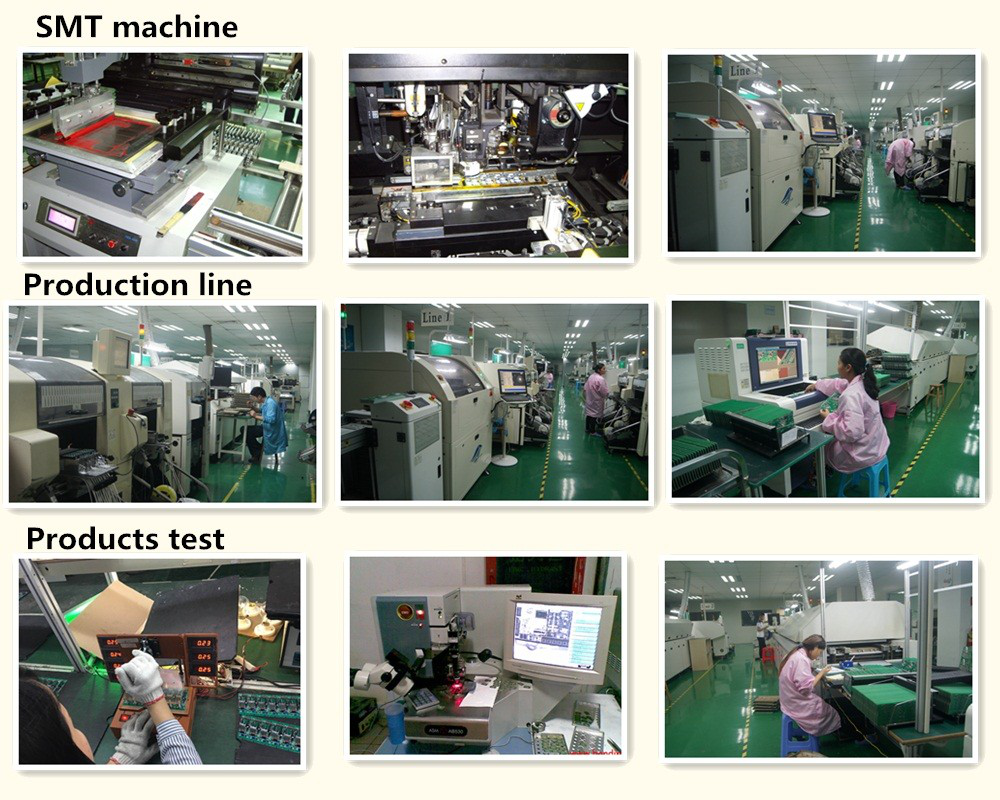

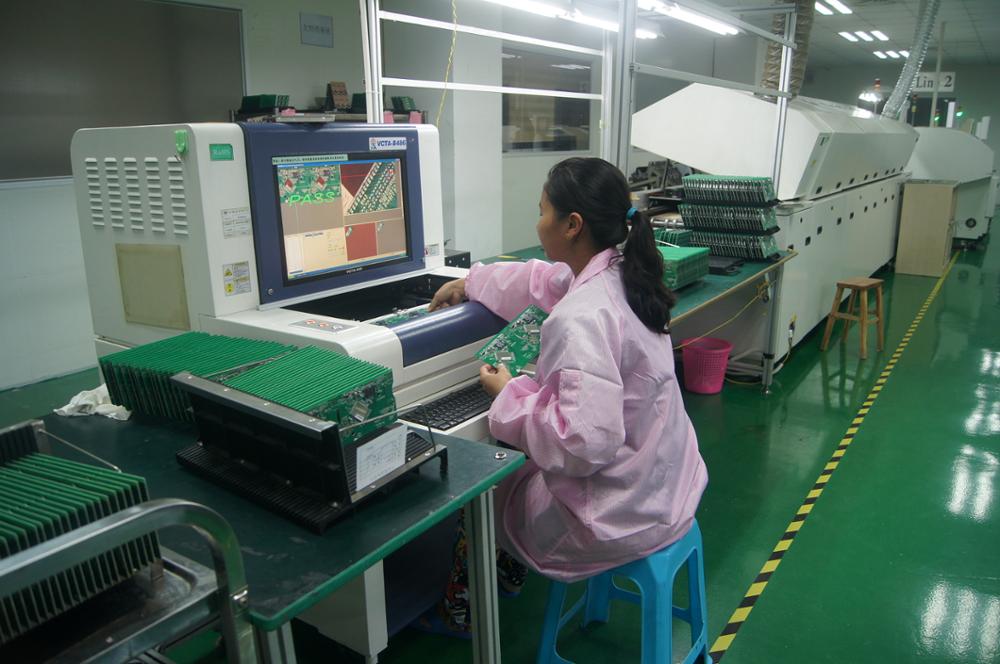

Factory Show
Packaging & Shipping
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Package:
Each products With ESD bags or do it on your request.
We provide a hard outer packing carton, to ensure that no problems during transport .
Transport:
Sample:2~3 weeks by DHL,UPS,FedEx etc.
Order :3~4 weeks depend on the quantity of order)
We can get the best price from professional shipping company with long-term cooperation
Payment:
Paypal,Western Union,T/T,Alipay,Secure Payment in Alibaba.
FAQ
Q: Are you amanufacturer?
A: Yes we are manufacturer.
Q: Do you provide samples?
A: Yes we can provide free samples, price and shipping cost open for negotiation.
Q: What certificates does this product have?
A: We have CE, FCC, ROHS certified.
Q: What about OEM and ODM?
A: We accept OEM and ODM orders, MoQ is open for discussion.
Q: What is depvery terms and time?
A: We use FOB terms and ship the goods in 7-30 days depend on your order quantity, customization.
