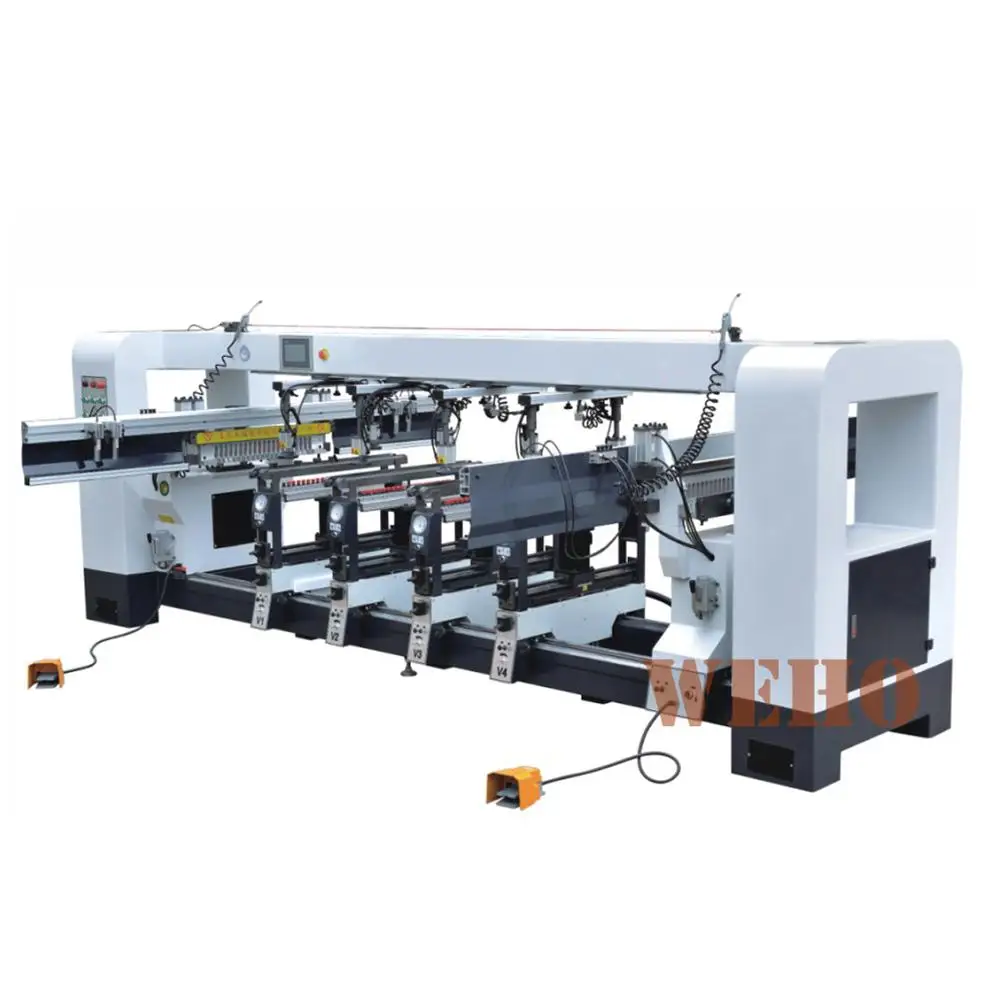

Multi spindle drilling machine for carpenter is used for drilling wood, flakeboard, medium density fiberboard and so on.
1.The imported original drill row, famous and superior original electric appliance.
2. The machine tool elements choose the superior steel materials. They have been heat-treated with high intensity and eternal non-deformation.
3. The kinetic components choose the high-grade anti-wear materials with fine durability.
4. Size positioning, prompt; accurate and convenient operation
Product Name
multi spindle drilling machine for carpenter
Model
MWZ4A
Max. drilling diameter
35mm(single spindle) 13mm(multi spindles)
Max. drilling depth
60mm
Total numbers of drilling spindles
21*4=63
Installationpitch of drilling head
10mm
Spindle speed
2840r/min
Total motor power
6kw
Overall size
2600*1100*1700mm
N/W
1000kg
Finished Products
Company Information
Our Services
Technical support:
1.Before buying the machine: sales people will introduce all information of the machine to customer, if customer come to factory, we will make sample product for customer 2.After buying the machine: if any problems of machine happen, customers can find our technical engineer by email, phone, SMS, Wechat, whatsapp etc, we will reply once we see the message. 3.We will provide free training for customer in our factory; 4. Sending engineer to customer's location is optional, but the related fees should be paid by customer
After sales service:
1.The whole machine guarantee for 12 months
2.During the guarantee period, if malfunction caused by non-artificial factor, we will provide consulting service for the customer, if the damage can not be fixed, we will send replaces parts to the customer, customer should paid the freight cost.
Packaging & Shipping
1. Package: Water proof film or wooden case (Optional) 2. Size: 3210 * 1410 * 1610mm 3. Weight: 2260 Kg
