Супер сильный стержневой магнит Неодимовый магнитный стержень
US $0.027-$0.99

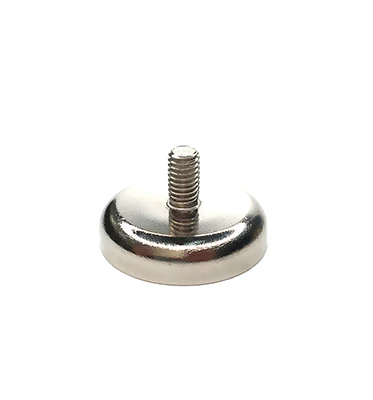

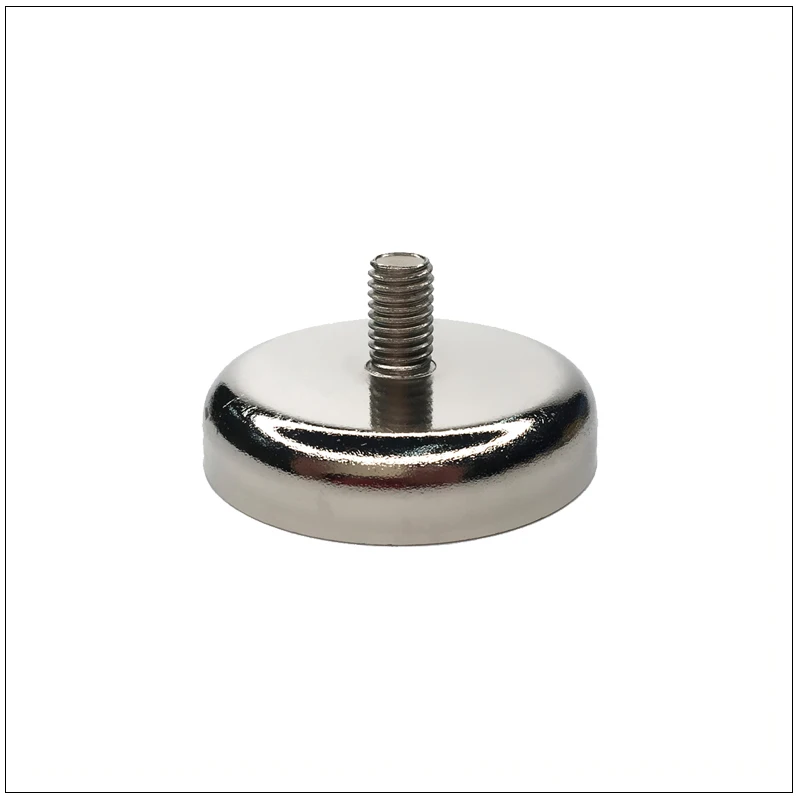

Неодимовый магнит ZXY диа20 мм с наружной
- Категории: Magnetic Materials >>>
- Поставщик: Anhui,Zhongxinying,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Parameters

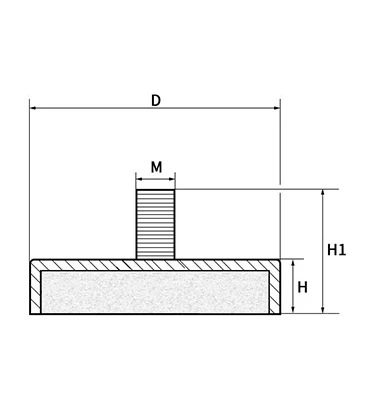

Model | D （mm） | M （mm） | H1 （mm） | H （mm） | Weight（g） | Pull force（kg） |
ZC04C10 | 10 | M3 | 12 | 5 | 4 | 1.5 |
ZC04C12 | 12 | M3 | 12 | 5 | 5 | 2 |
ZC04C16 | 16 | M4 | 14 | 5.2 | 9 | 9 |
ZC04C20 | 20 | M4 | 16 | 7.2 | 16 | 16 |
ZC04C25 | 25 | M5 | 17 | 7.7 | 26 | 22 |
ZC04C32 | 32 | M6 | 18 | 7.8 | 43 | 34 |
ZC04C36 | 36 | M6 | 17.6 | 7.6 | 54 | 41 |
ZC04C42 | 42 | M6 | 18.7 | 8.8 | 83 | 68 |
ZC04C48 | 48 | M8 | 24 | 10.8 | 130 | 81 |
ZC04C60 | 60 | M8 | 31.5 | 15 | 256 | 120 |
ZC04C75 | 75 | M10 | 35 | 17.8 | 510 | 178 |
Product Features
2. ZXY dia20mm neodymium pot magnet with male thread has wide range of applications including daily life use, heavy duty industrial use, construction use, civil engineering use, mining application etc.

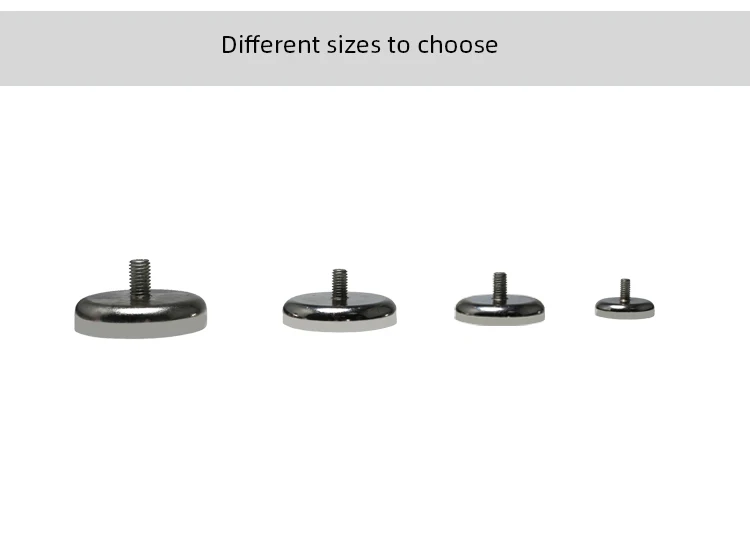

3. Different dimensions available and others can be customized.
4. ZXY dia20mm neodymium pot magnet with male thread can work under temperatures up to 80 celsius degree.

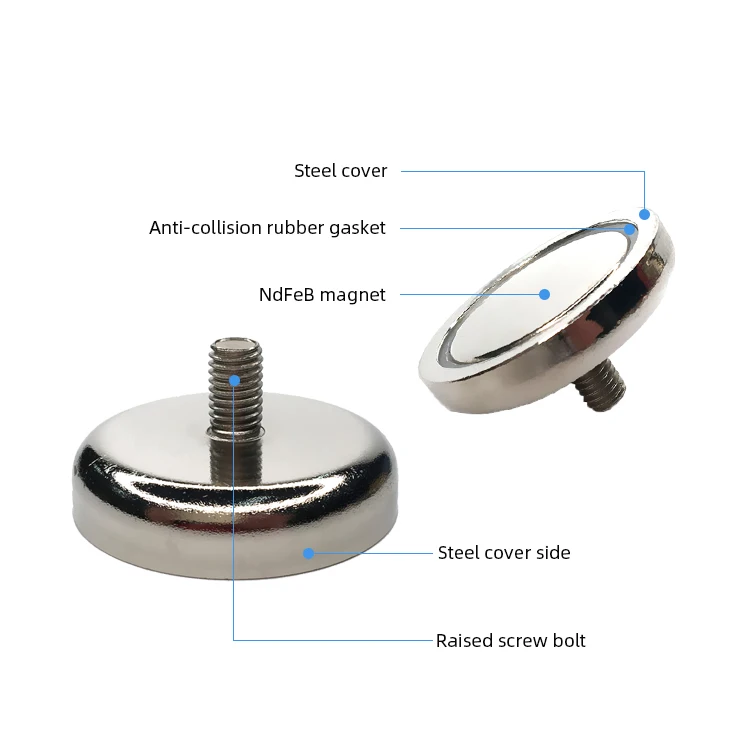

5. Standard components for assembling for ZXY dia20mm neodymium pot magnet with male thread
