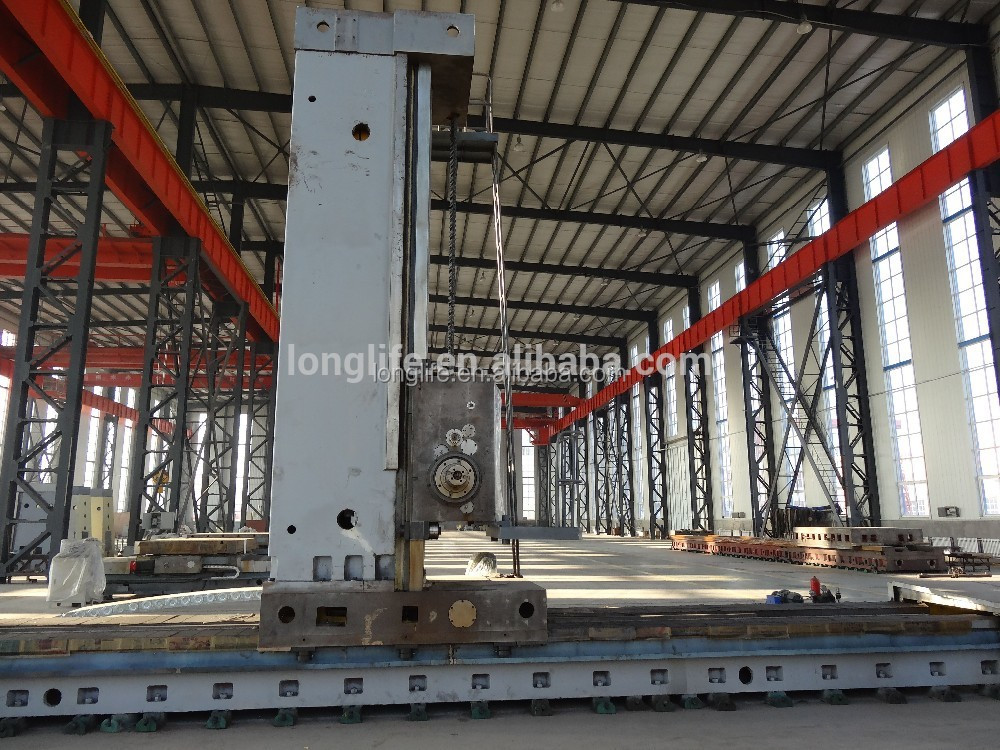

TK6916A/2 floor type cnc horizontal boring machine

Recommended Boring

Brief Introduction

Such TK6916 floor type cnc horizontal boring and milling machine has following features:

This machine is applies to the coarse and fine processing as well as drilling and reaming processing of surface and hole for large, heavy and over heavy complex components.

It is suitable for general machinery manufacturing industry, especially for single pieces and small batch production of high precision and complex components.

It has features of reducing manufacture number of process equipment and shortening production preparation period. The machine can complete the processing of milling, boring, turning, drilling and hole boring only in condition that workpiece is prepared on machine.

This machine uses circular interpolation process (x, y coordinate axes) as well as small diameter milling cutter which can process any plane curve type surface.

The adoption contouring control method for milling of inclined plane, square plane and big hole end plane narrowed operating space, improved production efficiency and relieve labor intensity.

This machine is equipped with high precision rotary work table and square-edge milling head and other functional components which can complete the processing of pentahedron.

Main Technical Data

Specifications	Unit	Parameter
1. Spindle
Diameter of boring spindle	mm	Φ160
Diameter of milling spindle	mm	Φ260
Taper hole of boring spindle		ISO50
Rotational speed of boring and milling spindle (stepless)	r/min	2~650
Feed range of boring spindle (stepless)	mm/min	0.5~3000
Rapid speed of boring spindle	mm/min	3000
Maximum axial travel of boring spindle	mm	1000
Maximum diameter of boring hole	mm	Φ750
2. Radial tool post of facing head
End surface size	mm	480×480
Feed range (stepless)	mm/min	0.5~3000
Maximum axial travel	mm	800
Rapid speed	mm/min	3000
3. Headstock
Maximum vertical travel (Y axis)	mm	4000
Feed range (stepless)	mm/min	1~3000
Rapid speed	mm/min	3000
4. Front column
Maximum horizontal travel (X axis)	mm	8000
Feed range (stepless)	mm/min	1~4000
Rapid speed	mm/min	4000
5. Platform
Dimension of platform	mm	5000×1800×400
Area (length×width)	mm	5100×4500
Maximum loading capacity	T/m2	15
6. Overall weight	T	70

Free Std Accessories

S/N	Name	Part No. (specification)	Quantity
1	Radial tool post	T6216-90001	1
2	Jaw	T6216-90002	1
3	Socket wrench (S=46)	T6216A-90350	1
4	Socket wrench (S=75)	T6216A-90351	2
5	Small adjusting shaft of spindle bearing nut	T6216-90355	1
