Небольшой простой в использовании VFD 220 В 380 преобразователь VSD
- Категории: >>>
- Поставщик: Quanzhou,Machtric,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
S800E Smal Easy Operation VFD V/F Control Frequency Converter
Why Choose Us ?

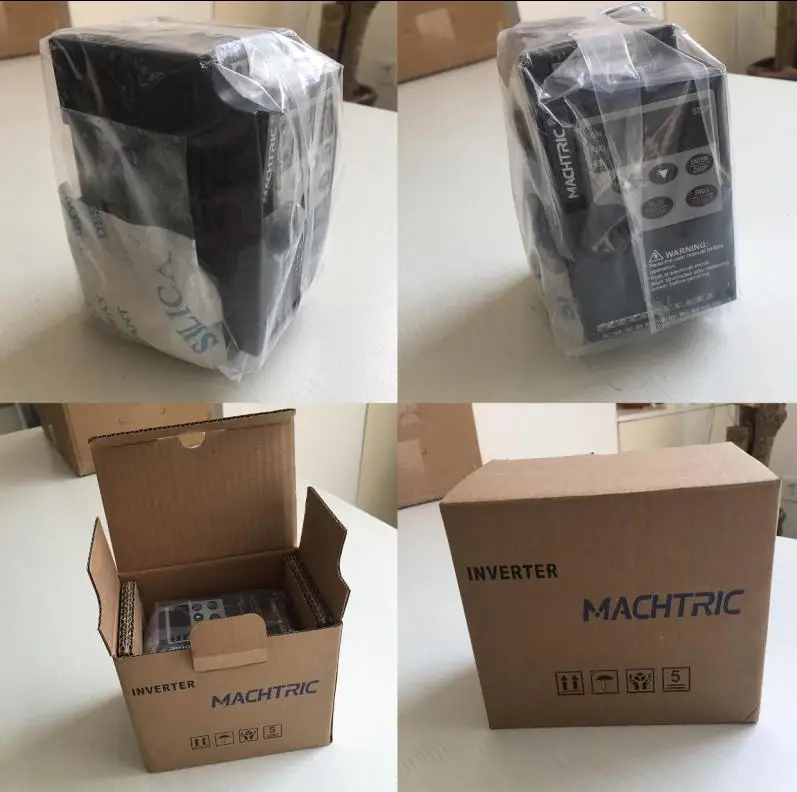

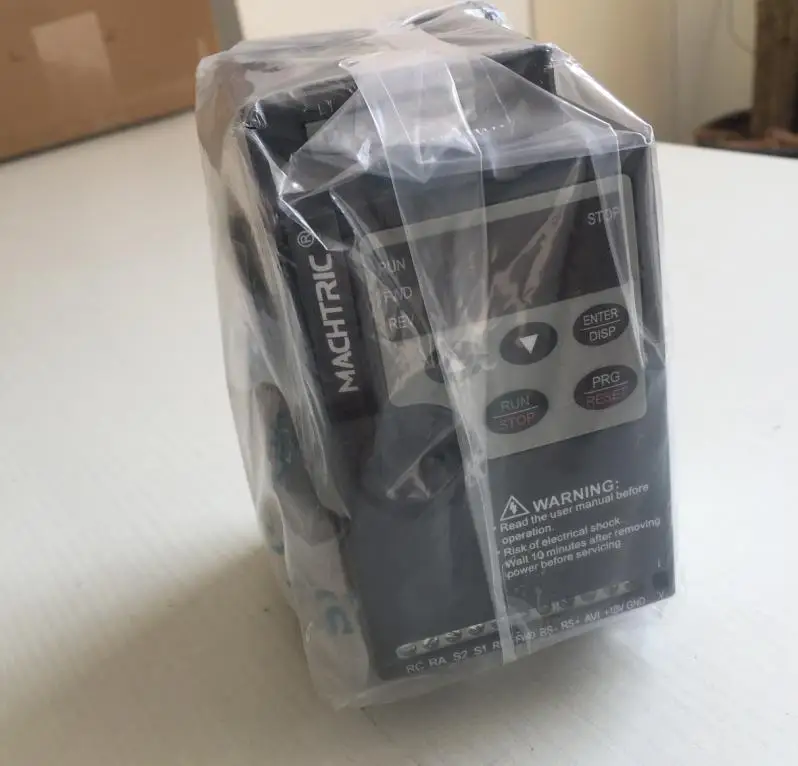

VFD Picture Show:
VFD Specification:
| Items | S800E | ||
| Power | Rated voltage, Frequency | ||
| Supply | One-phase/Three-phase AC 220V 50/60Hz | ||
| Voltage Range | |||
| 220V: 170~240V | |||
| Output | Voltage Range | 220V: 0~220V | |
| Frequency Range | 0.10~400.00Hz | ||
| Control method | V/F control, Space vector control. | ||
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. | ||
| Control SpeciAlations | Output Frequency | 0.10Hz~400.00Hz | |
| Range | |||
| Frequency Setting | Digital input: 0.01Hz, analog input: 0.1% of | ||
| Resolution | maximum output frequency | ||
| Output Frequency | 0.01Hz | ||
| Accuracy | |||
| V/F Control | Setting V/F curve to satisfy various load | ||
| Requirements. | |||
| Torque | Auto increase: auto raise torque by loading | ||
| Control | Condition; Manual increase: enable to set | ||
| 0.0~20.0% of raising torque. | |||
| Multifunctional | Four multi-function input terminals, realizing | ||
| Input Terminal | functions including fifteen section speed control, Program running, four section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions | ||
| Multifunctional | 1 multi-function output terminals for displaying | ||
| Output Terminal | of running, zero speed, counter, external | ||
| abnormity, program operation and other | |||
| Information and warnings. | |||
Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. | ||
| Other functions | PID Control | Built-in PID control | |
| RS485 | Standard RS485 communication function(MODBUS) | ||
| Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be | ||
| selected; | |||
| Digital input:Input using the setting dial of the | |||
| operation panel or RS485 or UP/DOWN. | |||
| Note:AVI terminals can be used to select an | |||
| analog voltage input(AV) and analog current | |||
| input(AI) through the switch J2. | |||
| Note: AVI terminals can be used to select an | |||
| Analog voltage input (AV) and analog current | |||
| Input(AI) through the switch J2. | |||
| Multi-speed | Four multifunction input terminals, 15 section | ||
| speed can be set | |||
| Automatic | |||
| voltage | |||

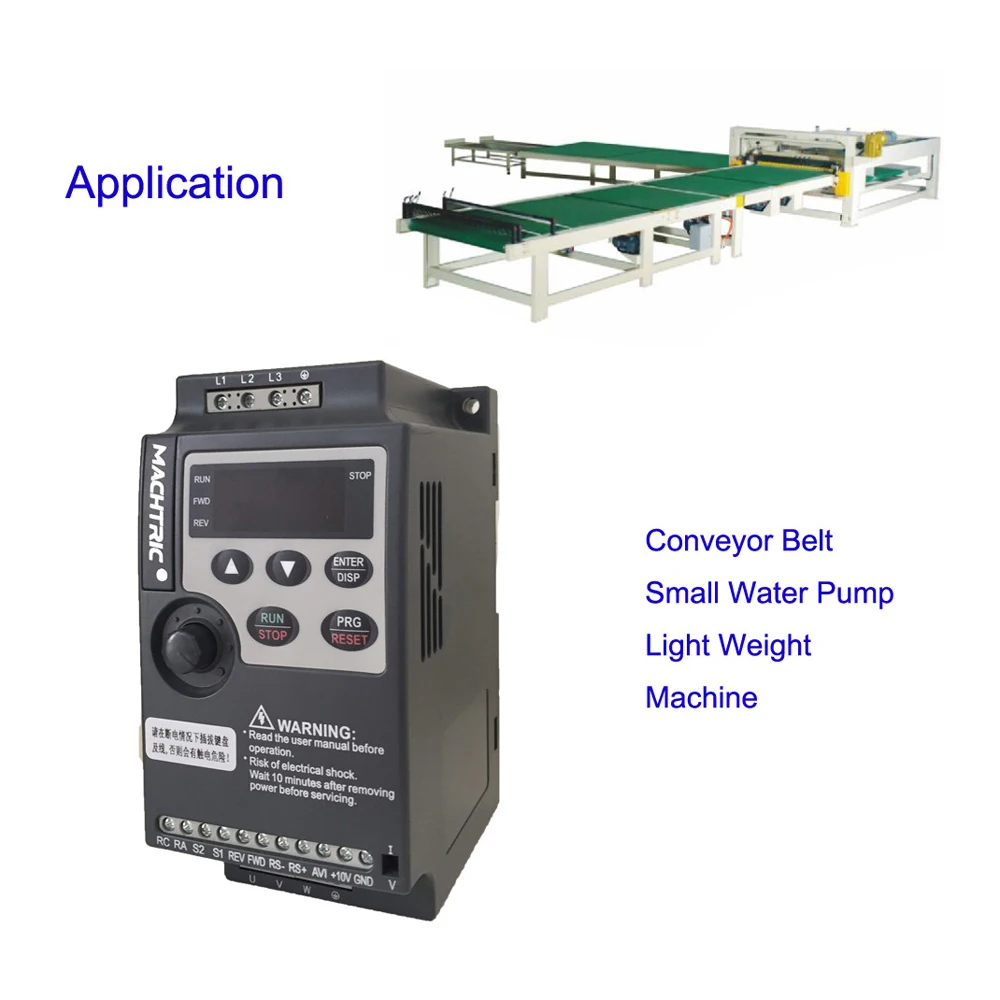

VFD Application:
