Mini Crawler Tractor 35HP
Product Description
FD356 multi-function crawler tractor is mainly used for bulldozing and level off land, snow, digging, ditch cleaning etc, with characteristics of high efficiency and big traction. After four unity before loading, it can realize loading, bulldozing, leveling, clamping, fast conversion between different practices and work more flexible.
This series product can be equipped with different farming tools, namely the hydraulic reversing clutch and the operation more easy and flexible.
Specification Detail
|
Dozer model |
FD356S-S |
|
Length(mm) |
2960(with blade) |
|
Width(mm) |
1640(with blade) |
|
Height(mm) |
2160(up to 2260) |
|
Weight(kg) |
2830 |
|
Gauge(mm) |
1150 |
|
Ground clearance(mm) |
240 |
|
Track width (mm) |
260 |
|
Pitch (mm) |
130 |
|
Traction(kN) |
24 |
(1)6 way dozer blade
|
|
|
|
Width ×Height(mm) |
1640(1740)×675 |
|
Lifting height(mm) |
500 |
|
Depth (mm) |
100~150 |
|
Cutting angle |
52.5° |
|
Max.digging depth of blade(mm) |
80 |
|
Blade Capacity |
0.67m3 |
|
Rated working pressure(MPa) |
16 |

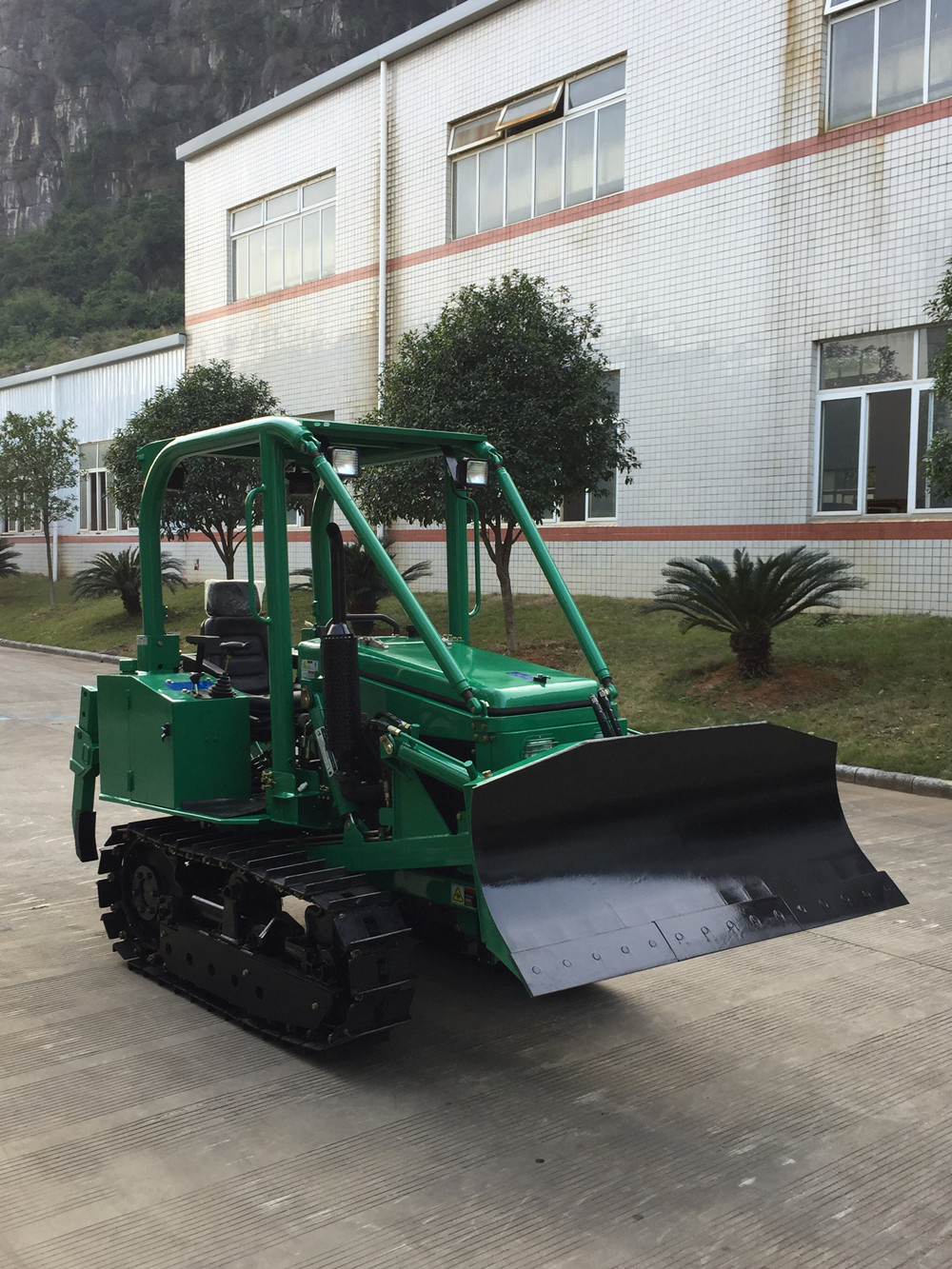

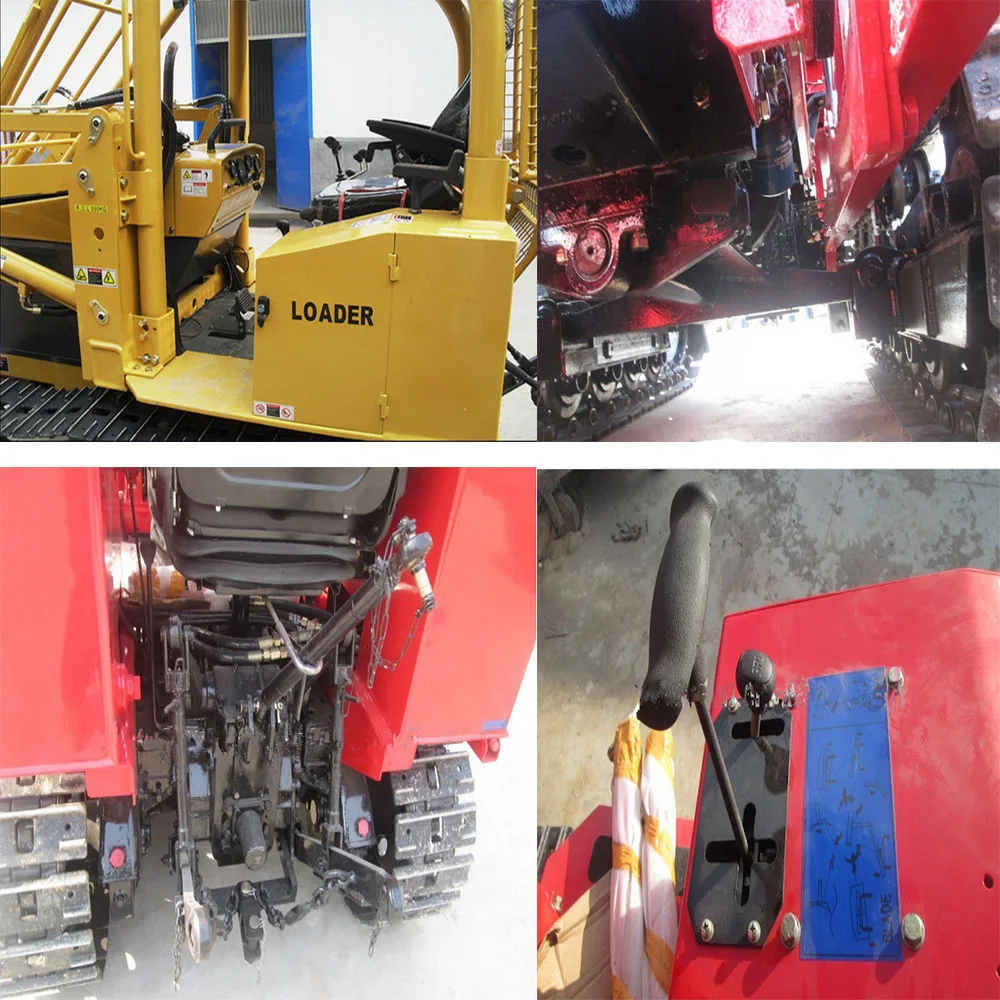

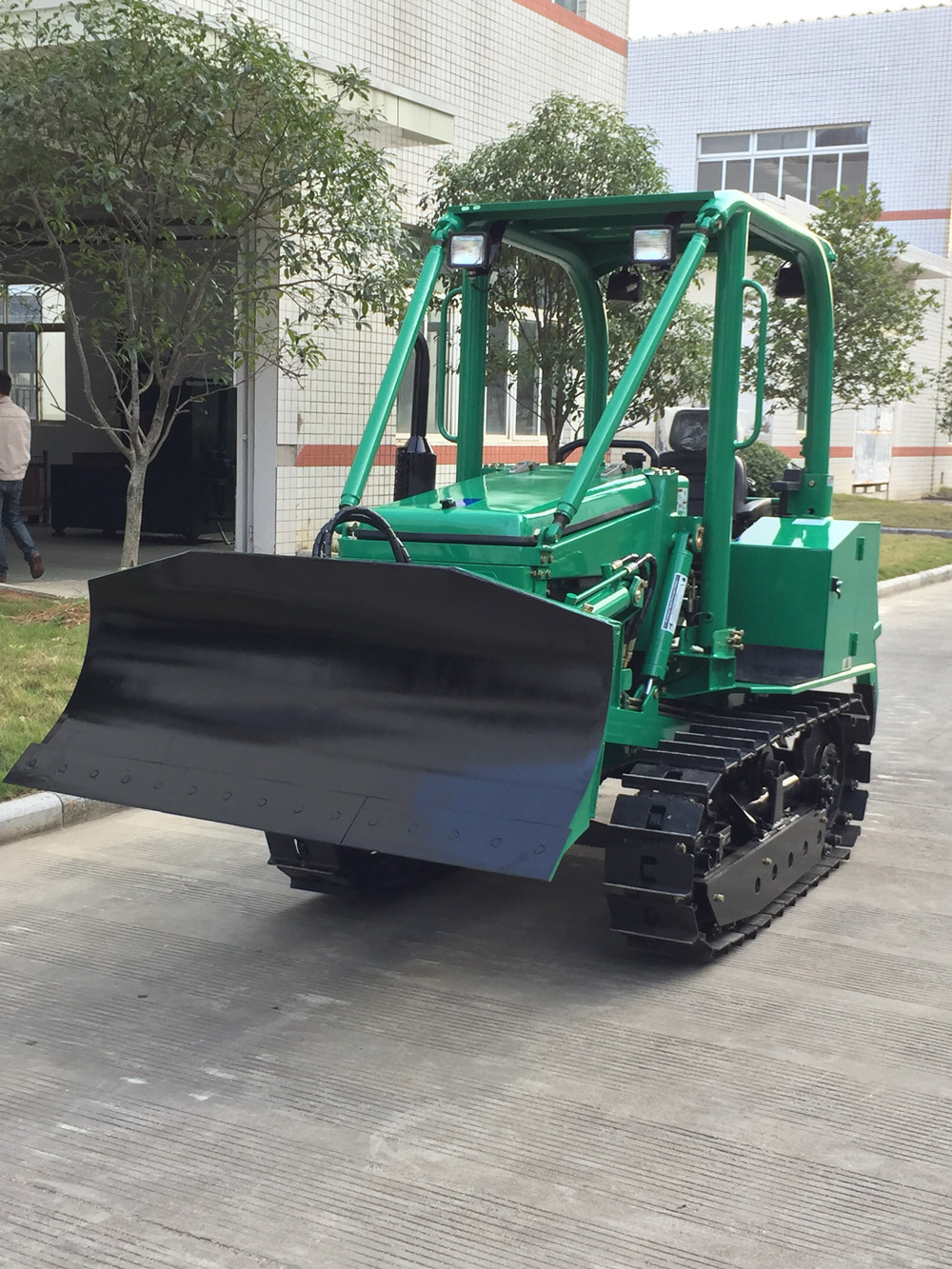

Detailed Images

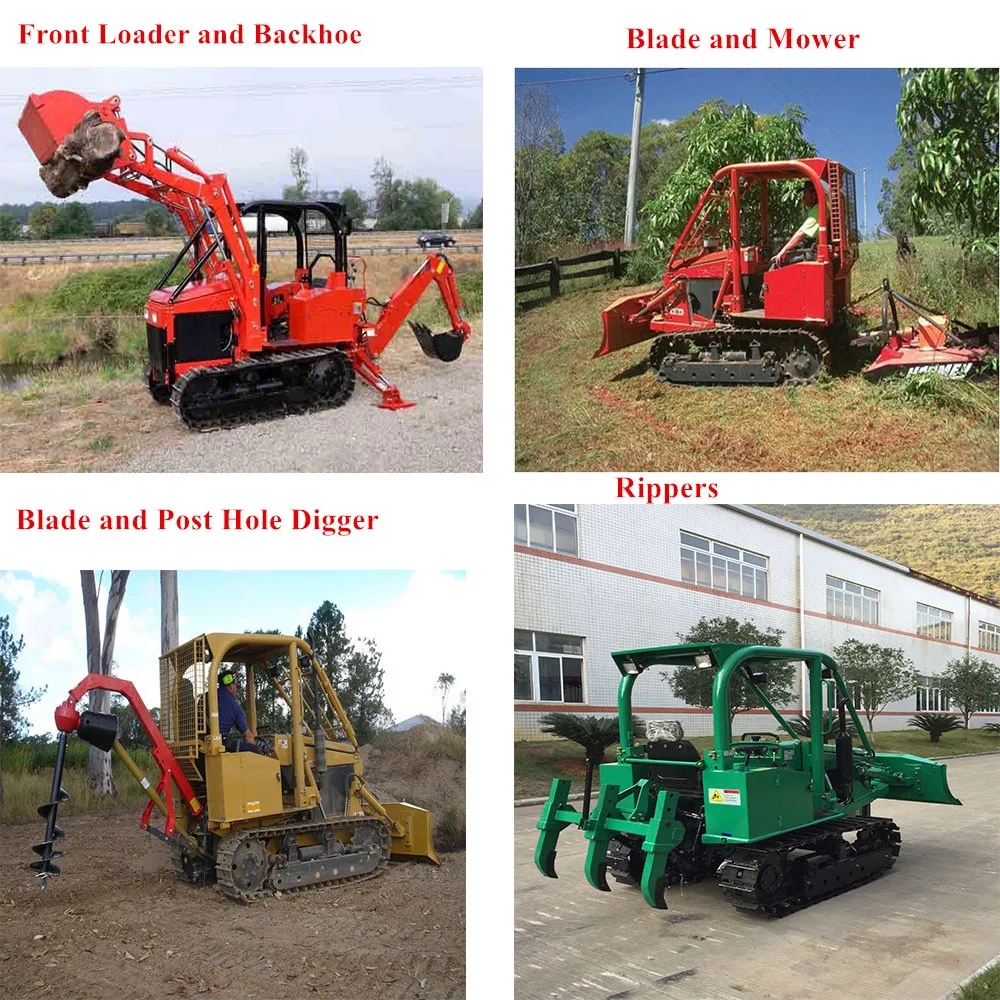

Working on Site
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()

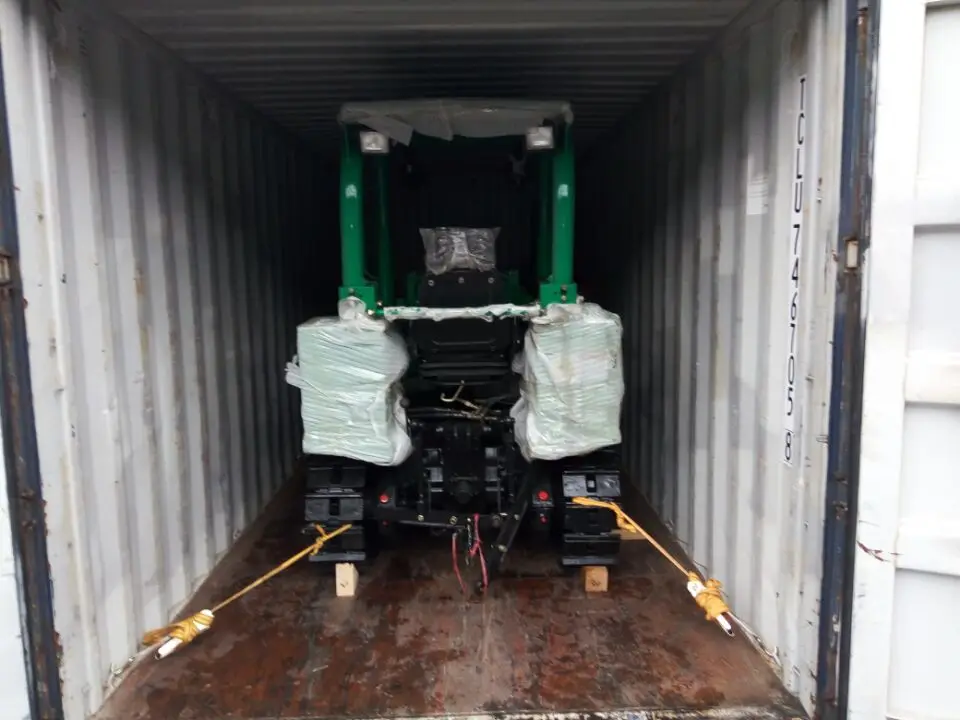

Packaging & Shipping
