Черная отожженная проволочная машина для прокатки стальной
- Категории: Winding Machines >>>
- Поставщик: Shanghai,Qipang,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Black annealed wire recoiling machine Steel wire
bailing coil machine
The Siemens PLC automatic control,touch human-machine interface ,simple operation .
The use of servo motor wiring system ,line effect is more ideal,wire winding ,paking ,in turn ,complete ,production speed .
Self-aligning line hand wall ,avoid artificial hand .sign auttomatic wire feeding machine ,manual labeling ,more safe and convenient
When there was a problem automatcally detect errors ,and issued a warning to remind the operator save manpower costs ,expand capacity promote industrial automation .
Technical parameters Model /height /inner diameter(mm)/outder diameter (mm)/wire diameter (mm)/average spool of packing materials output speed .
Quality assurance:

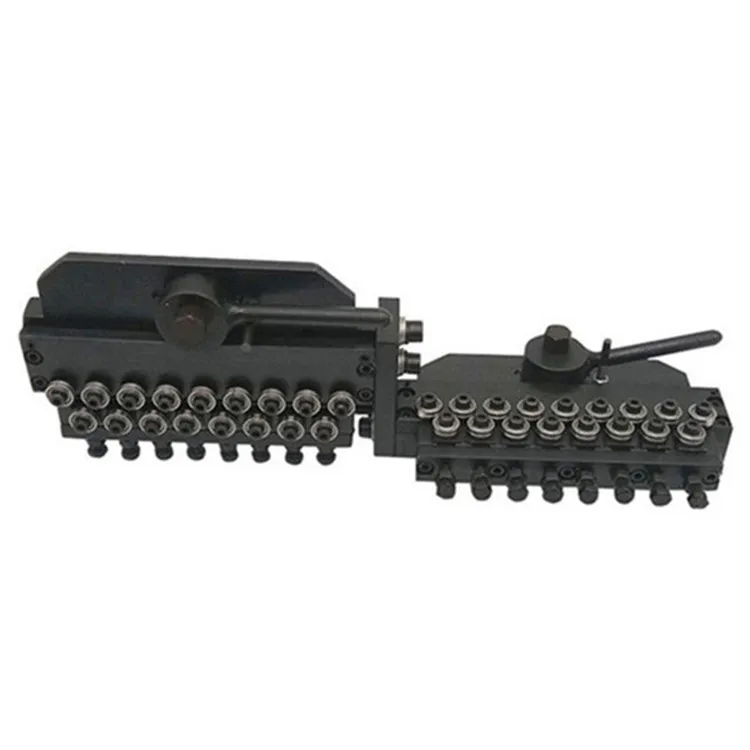

1. 1.wire straightening is equiped with world advanced computer driving production lines
2.The whole set of equipment have induction or PLC device
3 Have high quality guaranteed, exported to overseas countries

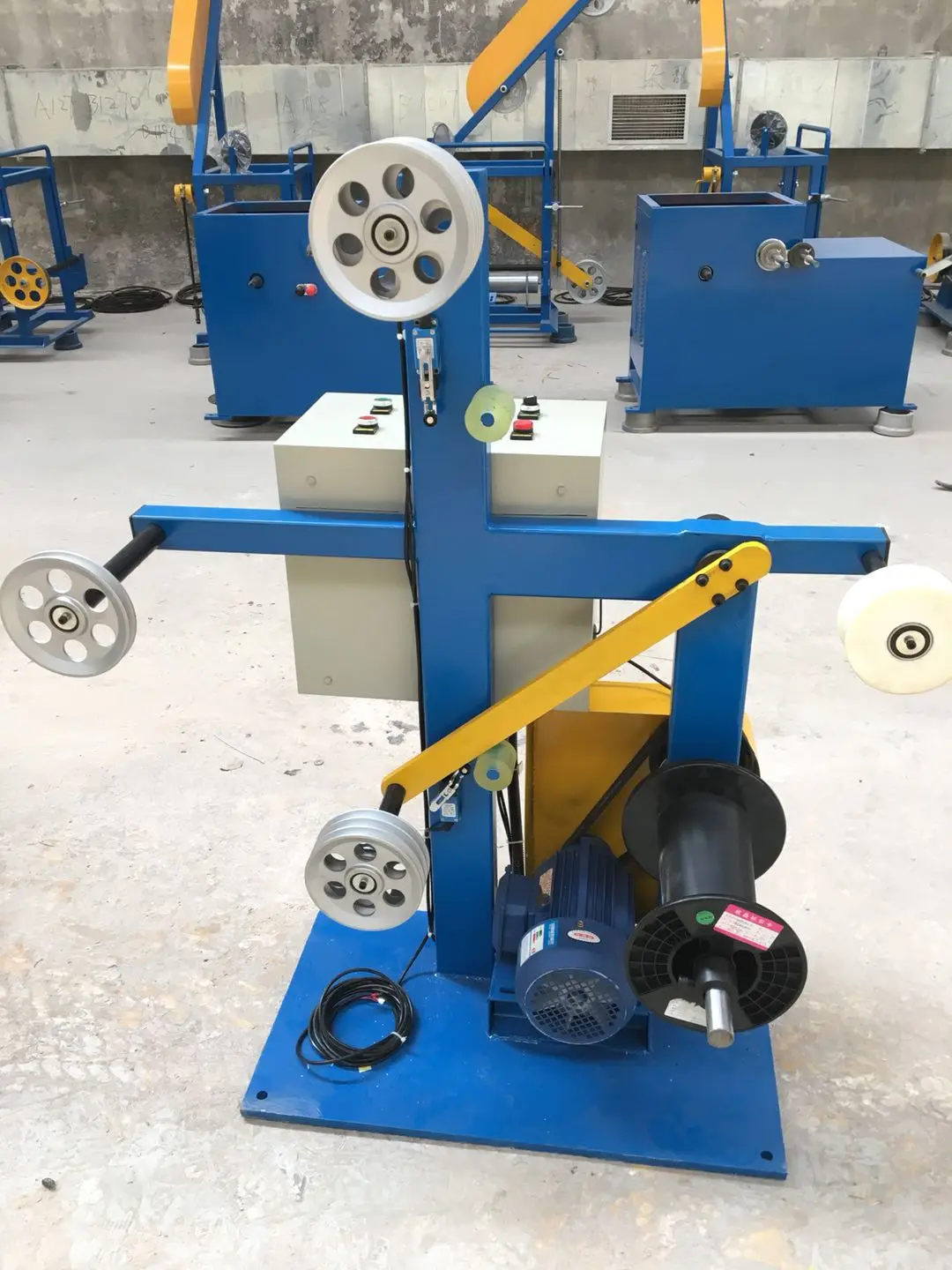

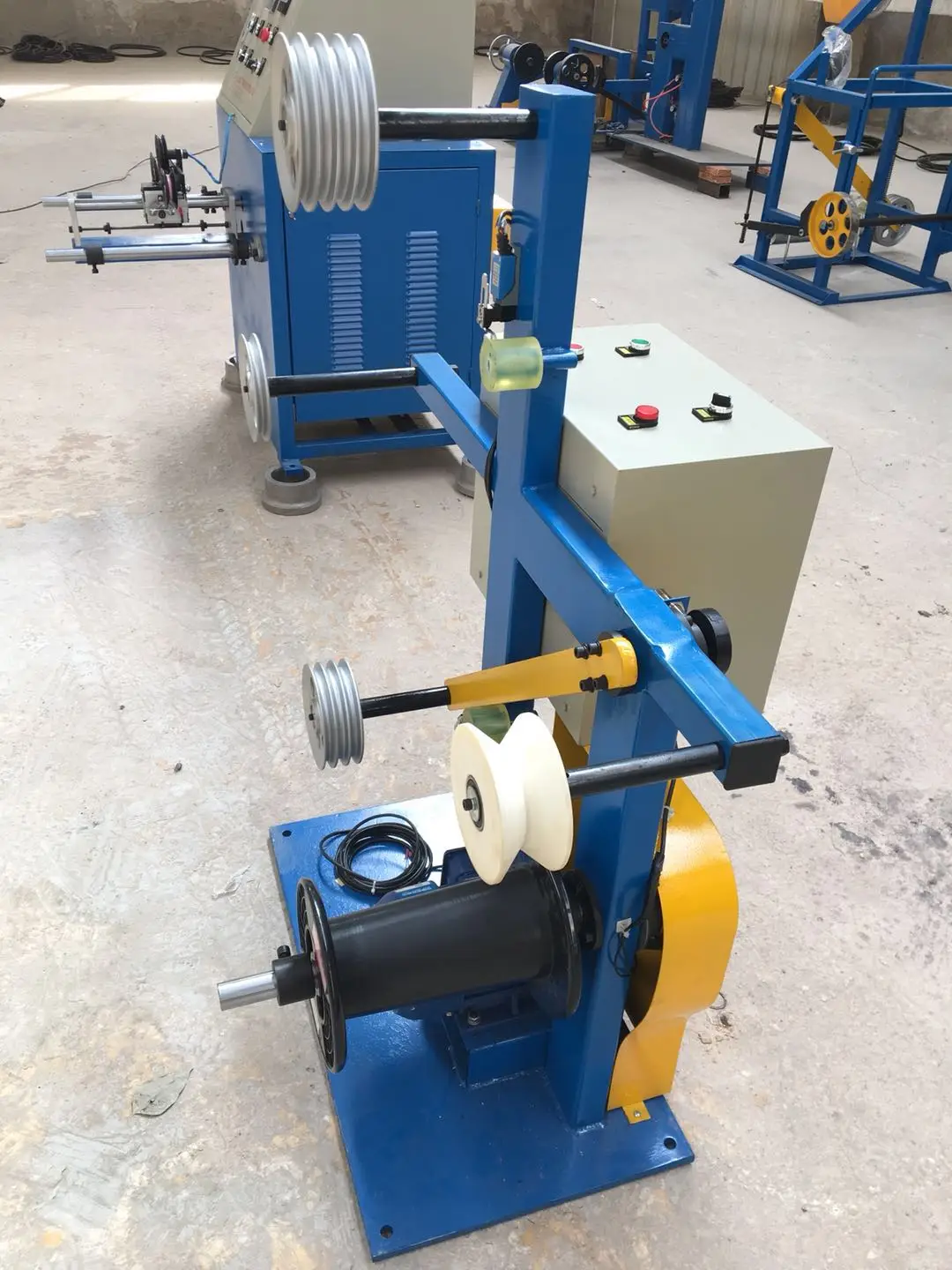

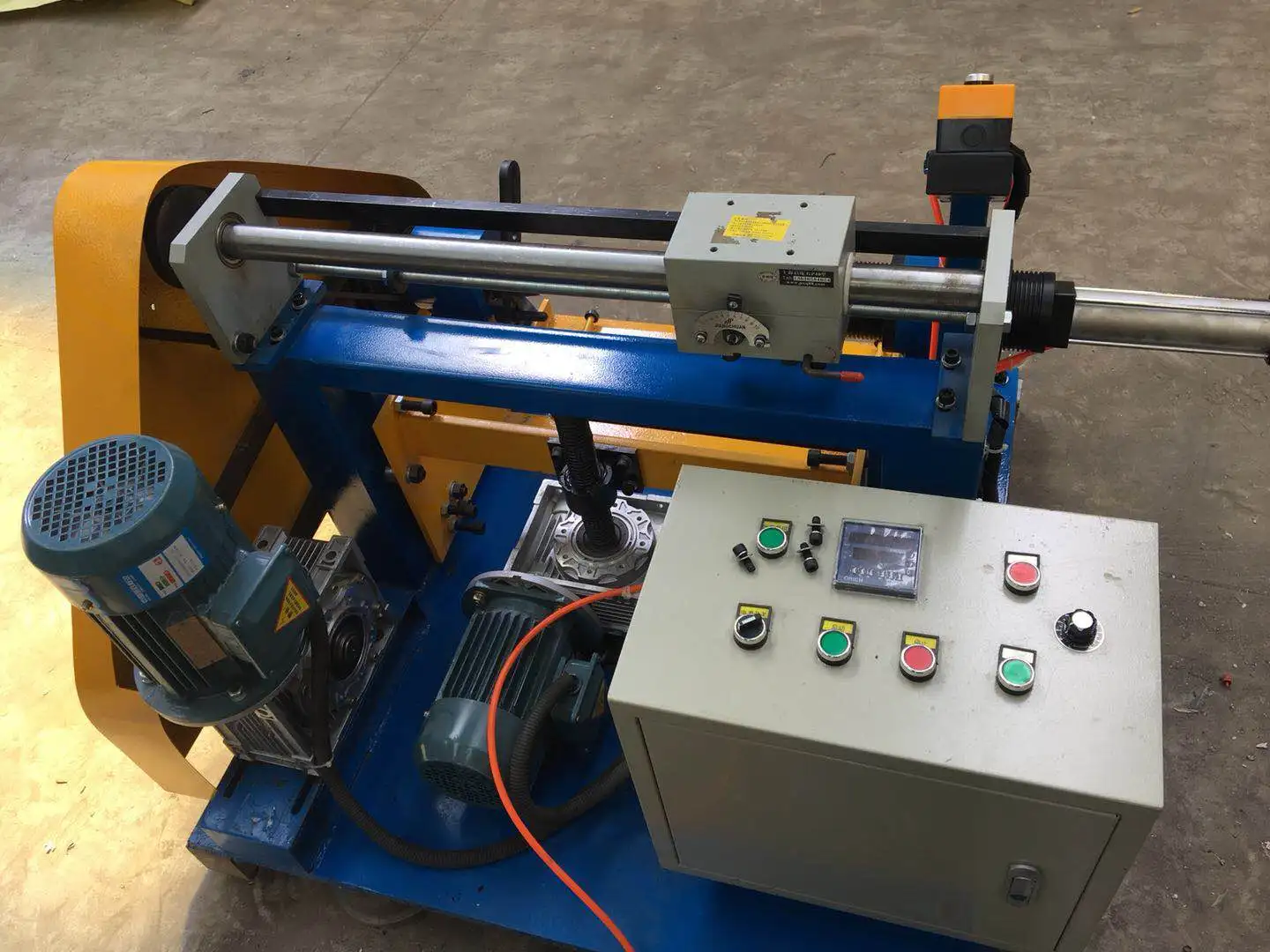

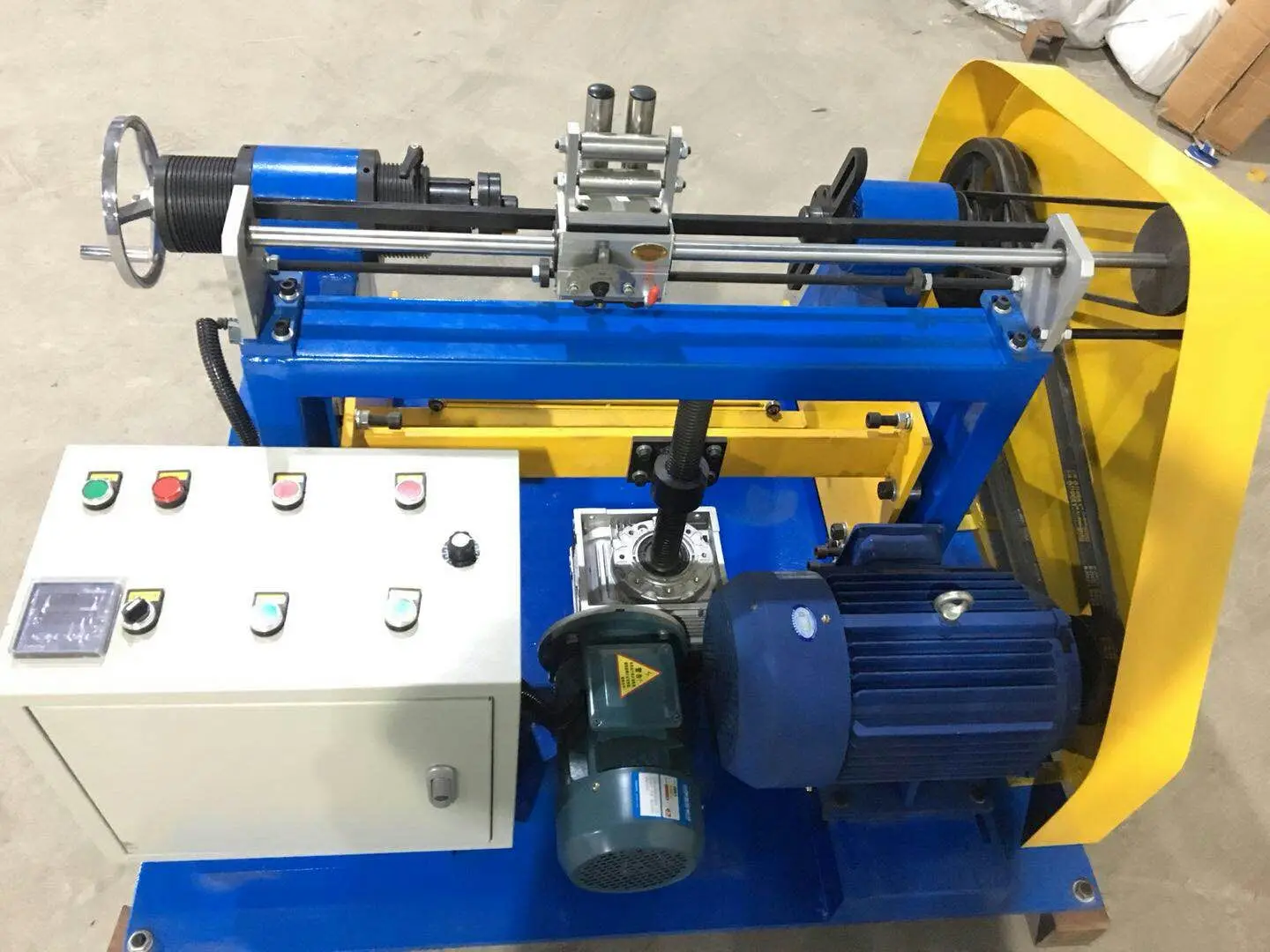

wire coil winding machine
1.automatic wire-arranging: the take-up rate is 2-3 times that of traditional models.
2.Rapid coiling installation: loop after being coiled can be removed quickly and easily, reducing labor intensity an saving time.
3.Three processes of wire coiling, reeling and plastic film packaging by one person can reduce the labor intensity and labor costs.
4.the wire tension in wire-arranging can guarantee that the wire-arranging space will not be affected by cable diameter and wire-arranging is in order and in better quality.
The use of automatic wire-arrange won’t be affected by manmade faction.
|
KG1250 wire /cable Coil winding machine |
|||
|
Wire/cable rage |
Wire :10 mm2-75 mm2 Cable outside diameter:18mm |
||
|
Pay-off reel diameter |
≤φ1250mm |
Binding wire slot qty |
3 slot |
|
Binding wire inner diameter |
φ200mm-φ250mm |
Pay-off way |
Automatic tension way |
|
Binding wire outer diameter |
≤φ700mm |
Main shaft rotary speed |
0-250r/min |
|
Binding wire height |
70mm-150mm |
Motor power |
4KW |
|
Measure way |
Data measure |
Wire arrange way |
Automatic arrange |
|
KG1400 wire /cable Coil winding machine |
|||
|
Wire/cable rage |
Wire :10 mm2-75 mm2 Cable outside diameter:18mm |
||
|
Pay-off reel diameter |
≤φ1400mm |
Binding wire slot qty |
3 slot |
|
Binding wire inner diameter |
φ200mm-φ300mm |
Pay-off way |
Automatic tension way |
|
Binding wire outer diameter |
≤φ700mm |
Main shaft rotary speed |
0-250r/min |
|
Binding wire height |
100mm-180mm |
Motor power |
4KW |
|
Measure way |
Data measure |
Wire arrange way |
Automatic arrange |
Black annealed wire recoiling machine Steel wire bailing coil machine features:
1.easy operate
2.high output
3.low labour
4.high efficiency
High-speed automatic wire-arranging coiler is suitable for coiling of 0.5-6mm2 cable wires and a small section cables. It is characterized by high production efficiency and superiority in high quality wire-arranging among its peers.
