Бесщеточный двигатель 90 мм для скейтборда электрического Мотор Ступицы

Описание и отзывы

Характеристики

90mm brushless motor for skateboard electric skateboard hub motor



Brushless motor with hall sensor assemble inside the motor,  start soothly, high efficiency

Optimized dual controller and remote control for the hub motors

Front and Rear truck for the motors

Hub motor size: D55*W74.5mm

Wheel size: D90mm*W55mm

Replaceable wheel cover



Specification:

GF055 Hub Motor Specification
Model	GF055	GF055
Rated Power	200	250
Rated Volt	24 /36	24 /36
Rated Rpm	1800	1950
Rated Current	11/7.5	13.5/9
Rated Torque	1	1.2
Max Power	400	450
Max Torque	4.5	5
Peak Current	21 /14	22 /15
Insulation Grade	E	E
Level of Protection	IP33	IP33
Leadwire length	200	200
Wheel Diameter	83/90	83/90
Wheel material	PU	PU

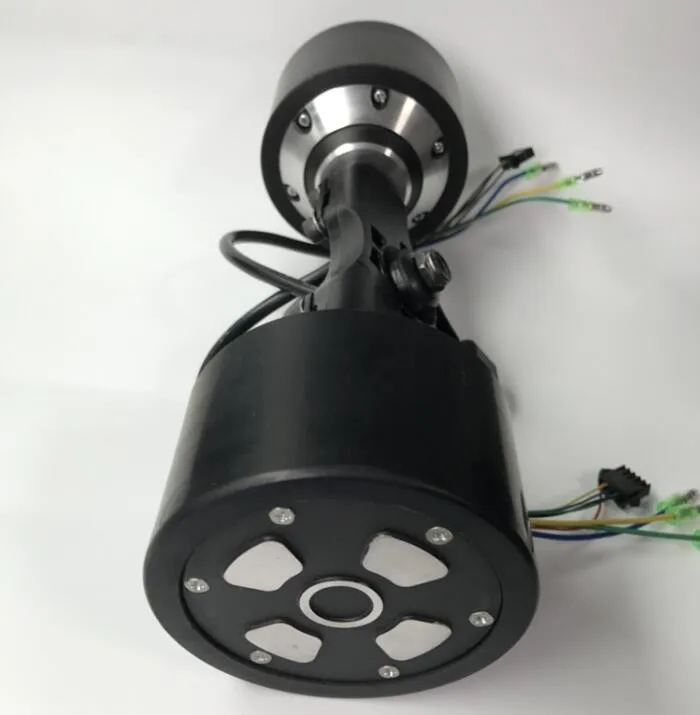

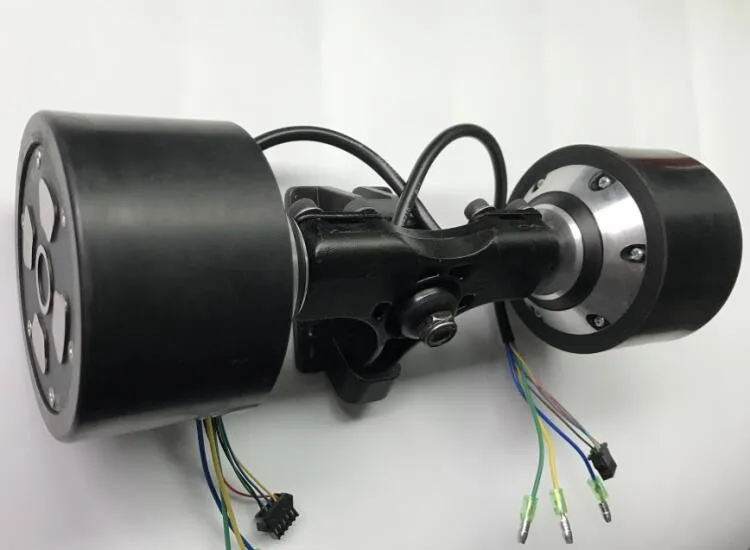

Motor Picture:

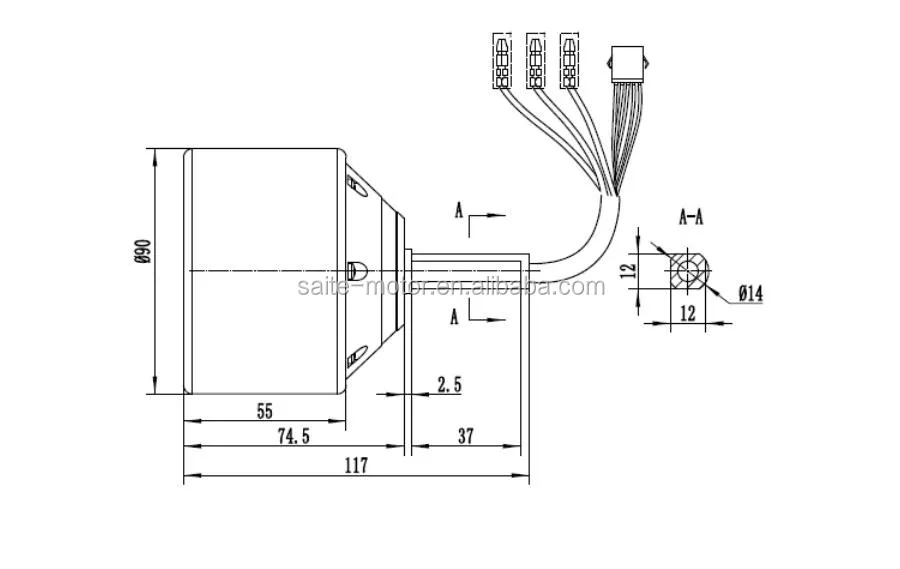

Dimension Drawing:

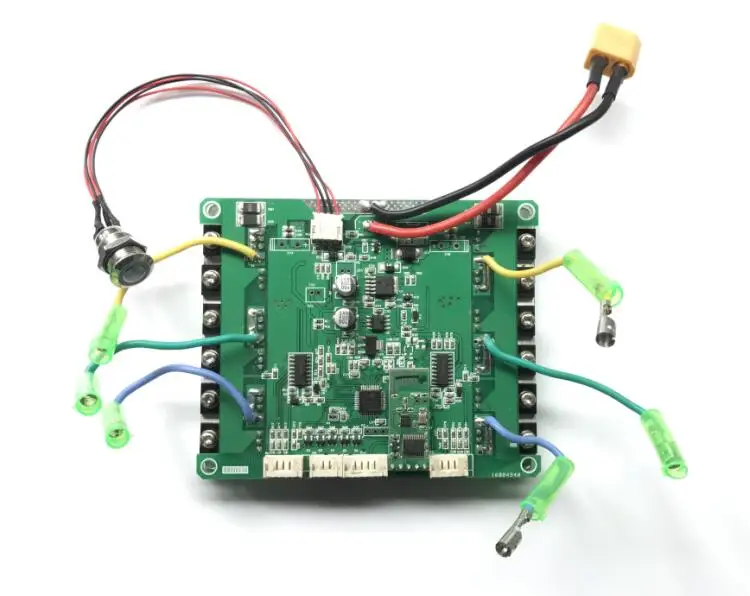

Controller:

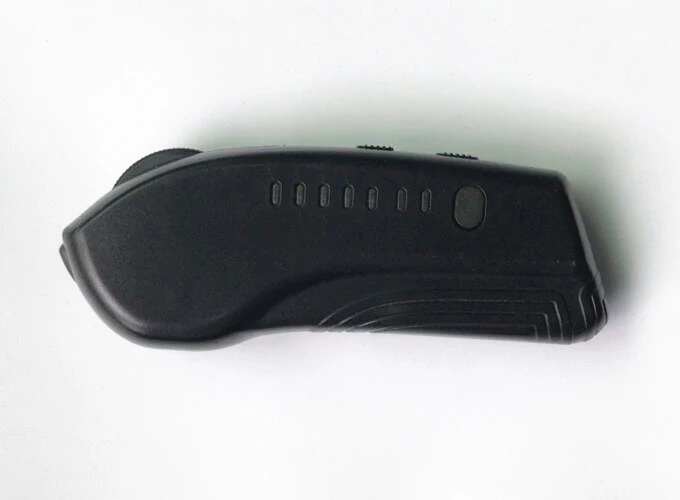

Remote Control:



Package Included:

2 x 90mm hub motor

2 x 90mm front wheel

1 x Controller

1 x Remote Control

1 x customized rear truck for hub motor

1 x front truck
