Railway bogie hydraulic damper /shock absorber



Available Application

Uzbekistan bogie ZEC160-C0, SDD19,

EMU Malaysia ETS, Malaysia Ampang Metro line, Malaysia SDD12, etc,

Turkey Ankara metro,

India EMU, India Mainline, India CKD6B,

Cuba DF7G-M,

Estonia DF7G-E,

Venezuela locomotive,

Congo CKD7C, Congo CKD5,

Myanmar CKD7B,

New Zealand CKD8F, Angola CKD8F,

Turkmenistan DF8B,

Pakistan light locomotive, heavy haul locomotive, etc.



The oil damper is a colsed hydraulic system.  When working, the damper converts the system vibration energy into heat energy scattering in the air so as to achieve the effect of vibraion reduction.





Specifications

Series	Max damping force(KN)	Max outer diameter(mm)
40	10	Φ 82
50	15	Φ 102
60	25	Φ 120



Technical characteristics

* The structure is variable damping passive damper (PSHD). It is new type of passive damper with semi-active control performance by adjusting the sequence of control valve.
* The drawing damping force and compressing damping force are basically equal, and the damping characteristics is symmetrical.
* Damping performance adjustable.
* Overload unloading, automatic protection.
* Reliable performance,easy maintenance, competitive price and quality.

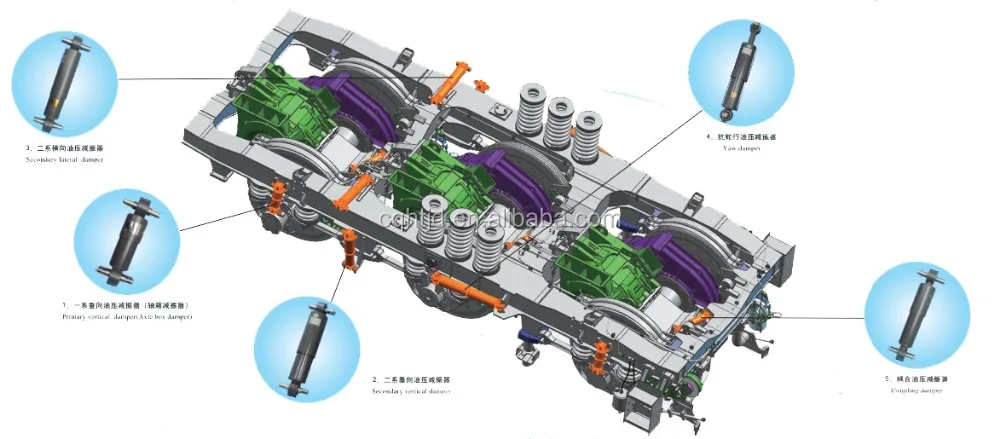

 Type



1. Primary vertical damper (axle box damper) . It is used to control vertical movement between axle box and bogie. i.e. nodding virbration.
2. Secondary vertical damper.
It is used to control vertical movement between carbody and bogie. i.e. nodding viration and bouncing vibration.
3. Secodary lateral damper.
It is used to control laeral movement between carbody and bogie. i.e. lateral vibration and yawing vibration.
4. Yaw damper.
It is used to contril hunting movenment between carbody and bogie. i.e. hunting motion.
5. Coupling dampler.
It is used to control lateral movement between motor hanging beam and bogie. i.e. lateral vibration.
