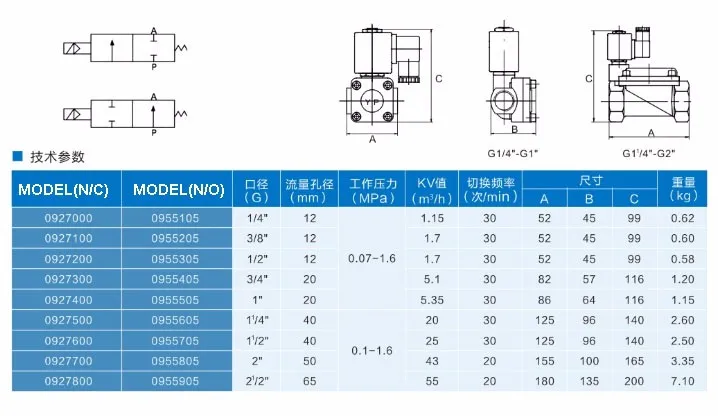

MODEL 0927000 0927100 0927200 0927300 0927400 0927500 0927600 0927700 0927800
PORT SIZE G1/4'' G3/8'' G1/2'' G3/4'' G1'' G1-1/4'' G1-1/2'' G2'' G2-1/2''
BORE(mm) 12 12 12 20 20 40 40 50 65
KV VALUE 1.15 1.70 1.70 5.1 5.35 20.0 25.0 43.0 55.0
WEIGHT(kg) 0.70 0.70 0.70 1.20 1.30 2.70 2.70 3.50 7.5
PRESSURE 0.07~1.6MPa 0.1~1.6MPa
MEDIUM AIR,WATER(OIL,STEAM)
TYPE 0927: NORMAL CLOSED
BODY MATERIAL BRASS
SEAL MATERIAL NBR/VITON(SILICAL)
TEMPERATURE NBR:-5~80C (VITON:-20~150C)
COIL 0200 DIN43650A(OPTION: EX-PROOF,WATERROOF)
Title goes here.
MODEL 0955105 0955205 0955305 0955405 0955505 0955605 0955705 0955805 0955905
PORT SIZE G1/4'' G3/8'' G1/2'' G3/4'' G1'' G1-1/4'' G1-1/2'' G2'' G2-1/2''
BORE(mm) 12 12 12 20 20 40 40 50 65
KV VALUE 1.15 1.70 1.70 5.1 5.35 20.0 25.0 43.0 55.0
WEIGHT(kg) 0.70 0.70 0.70 1.20 1.30 2.70 2.70 3.50 7.5
PRESSURE 0.07~1.6MPa 0.1~1.6MPa
MEDIUM AIR,WATER(OIL,STEAM)
TYPE 0955: NORMALOPEN
BODY MATERIAL BRASS
SEAL MATERIAL NBR/VITON(SILICAL)
TEMPERATURE NBR:-5~80C (VITON:-20~150C)
COIL 0200 DIN43650A(OPTION: EX-PROOF,WATERROOF)
