 Vegetables Vacuum Cooling Machine for Leafy Vegetables


company introduction (1).jpg









Product Description





ICEUPS will design and offer the most suitable machine to clients'requirement



* Vacuum Cooler Machine Condenser System Type:
1) Air condenser:The simplest construction, suitable for small system.Easy to integrate.
2) Water condenser: Low cost, efficient and easy to install. Perfect for most districts climates.
3)Evaporative condenser: Optional system for dry climates, or if water availability is limited.


*Door type of Vacuum Cooler Machine


1) Standard swing door: The simplest construction, manual operation. The ramp for this system is relatively long, and is mounted inside the cooling chamber.
2)Horizontal sliding door: This eletrical driven door is optimal if the cooling skid is placed ,besides the vaccum chamber (one pallet modle and more than 6 pallets systems).
3)Upward lift door:Suggested solution for all systems from 2-6 pallets. Easy installation , easy ramp construction.


Technical parameter of Vacuum Cooler:
ICEUPS standard range consists of models:1pallet up to 10 pallets, and produce weight ranging from 300 to 5,000 kg. The number of pallets defines the chamber dimensions, and the number of vacuum pumps needed to create the vacuum.










 vacuum cooler 6





234520180523182043

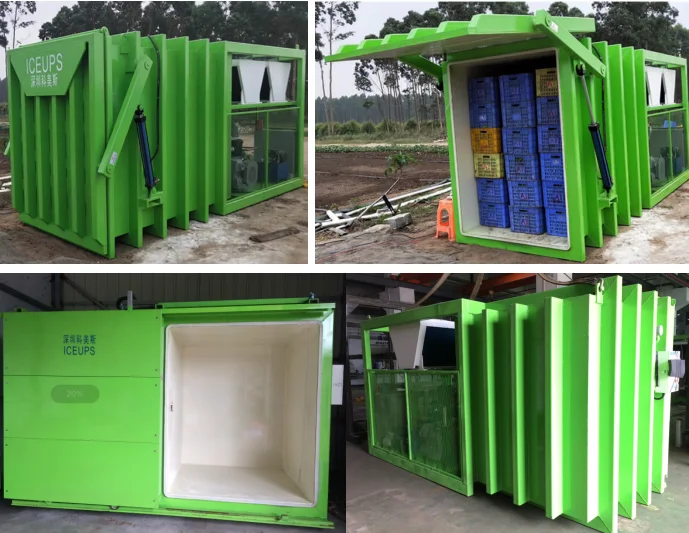

Vacuum Cooler Machine Picture

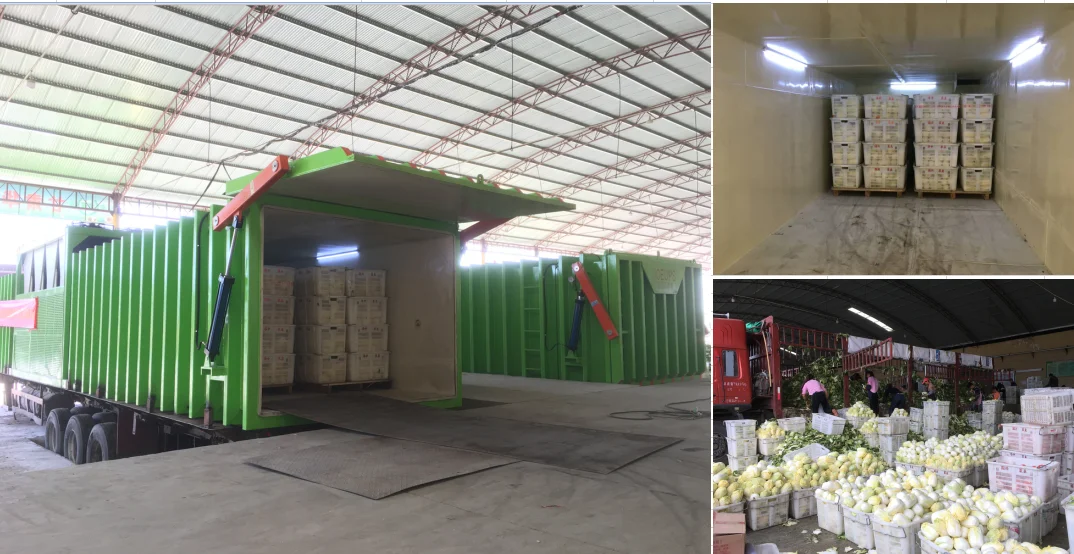

I Vehicle mounted double chamber type


Vacuum cooler 11





II Landed two chamber type


Project 6





III One chamber type





 12






Application F

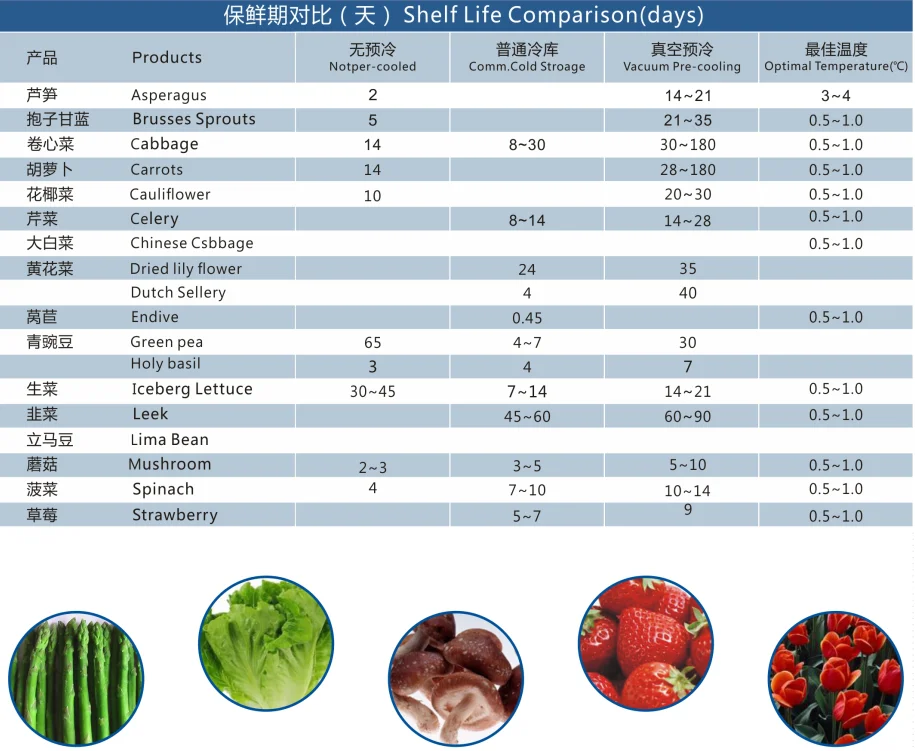

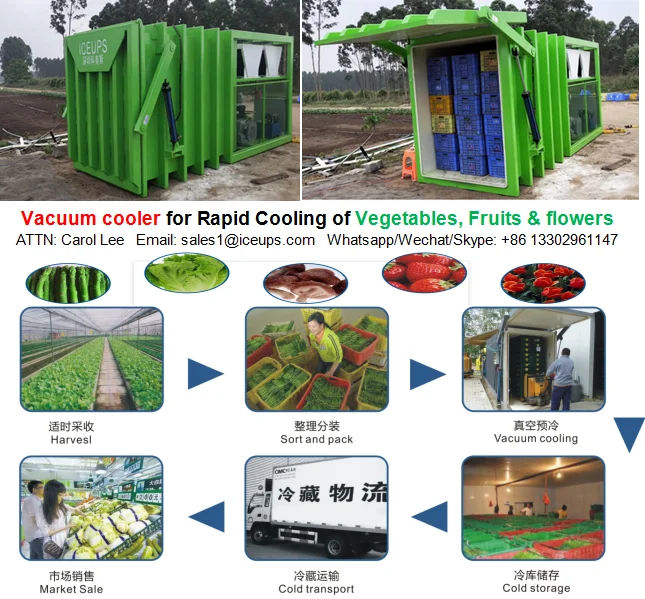

 Product Application of Vacuum Cooler



1.Vacuum Cooler is the quickest and most cost-effective cooling system for vegetable, fruits, flowers & more.



2.Vacuum cooler, which can strongly improve your product quality and at the same time reduce your cooling costs, is now becoming an acceptable investment for almost all vegetable growers!



3.Vacuum Cooler cools fresh product quickly and uniformly in large loads within 15-30mins/cycle, also suitable for packed produces.

ICEUPS will design and offer the most suitable machine according to clients'requirements.
Vacuum Cooler Machine Condenser System Type:
1) Air condenser:The simplest construction, suitable for small system.Easy to integrate.
2) Water condenser: Low cost, efficient and easy to install. Perfect for most districts climates.
3)Evaporative condenser: Optional system for dry climates, or if water availability is limited.


vacuum cooling machine.jpg


Door type of Vacuum Cooler Machine


1) Standard swing door: The simplest construction, manual operation. The ramp for this system is relatively long, and is mounted inside the cooling chamber.
2)Horizontal sliding door: This eletrical driven door is optimal if the cooling skid is placed ,besides the vaccum chamber (one pallet modle and more than 6 pallets systems).
3)Upward lift door:Suggested solution for all systems from 2-6 pallets. Easy installation , easy ramp construction.









Certificate


certificates2015-7-10





Packaging & Shipping






* General Container


* Open Top Container


* Platform Based Container



vacuum cooler shipment
