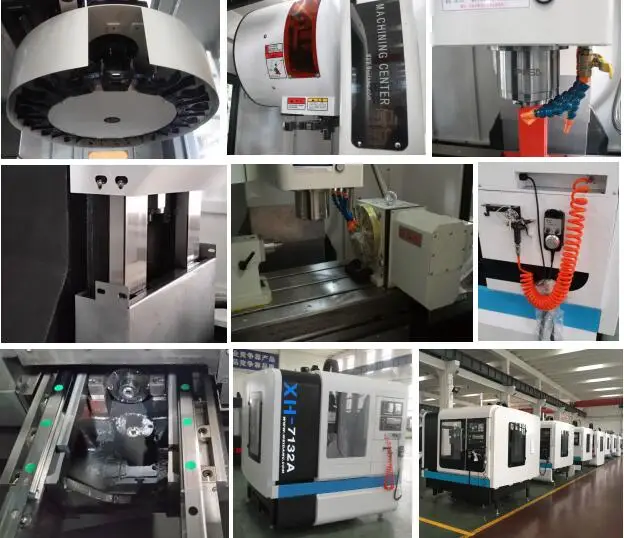

XH7132A tengzhou WEIDA precision machine cnc mini milling with tool changer









Specification

		XH7132A
Table size	mm	920x320
T slot  no./width/distance		3/14/85
Max. load of worktable	kg	300
Longitudinal travel	mm	620
Cross travel	mm	350
Vertical travel	mm	500
spindle nose to table surface	mm	120-620
spidle axis to column surface	mm	420
Spindle  taper		BT40
Speed Range	RPM	40-6000
spindle motor power	kw	5.5
cutting feed  X/Y/Z	mm / min	1-10000
rapid feed  X/Y/Z	m / min	18/18/18 (box guide ways) 30/30/18(linear guide ways)
tool magazine capacity	piece	16
tool magazine type		drum-type
Max. tool diameter	mm	Φ130(adjancent tool empty)
Max. tool length	mm	300
Max. tool weight	kg	8
Tool changing time (tool-tool/cut-cut)	s	3/7
positioning accuracy	mm	±0.005/300 JIS
repeat positioning accuracy	mm	±0.003 JIS
air pressure	Mpa	0.5-0.7
overall dimensions(LxWxH)	mm	2180x2052x2600
N/W	kg	3100

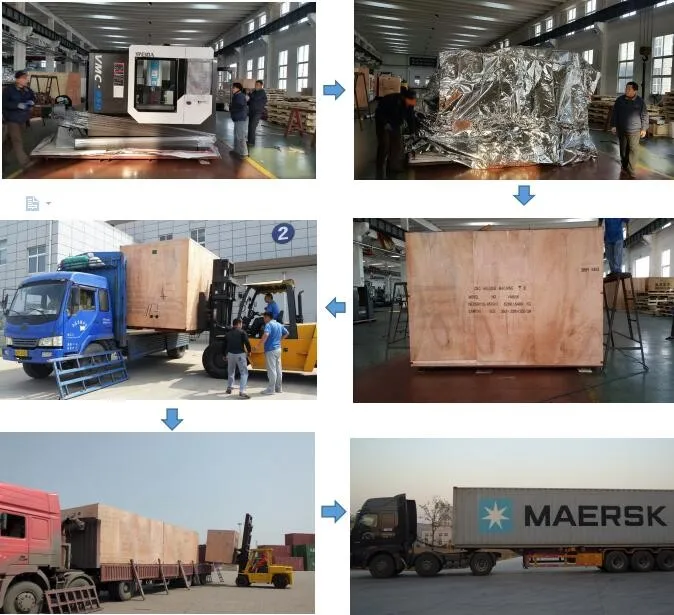

Our package for the machine is plywood case, this is the case without fumigation. To European market, all the wooden case should be fumigated. Our package is very convenient. And for customers, it can save a lot fumigation cost. The package is suitable for sea transportation.

Inside our package, to protect the machine well, we will use plastic cover to protect it which is water proof. And for Cnc machines, besides plastic cover, it’s also vacuum packing inside. So do not worry about our package. We will protect the machine well when delivery.

Detail package information as following:

Machine: XH7132A tengzhou WEIDA precision machine cnc mini milling with tool changer

Type of package: Plywood case

Packing dimension:  227x240x255cm

Suitable container:40HC container

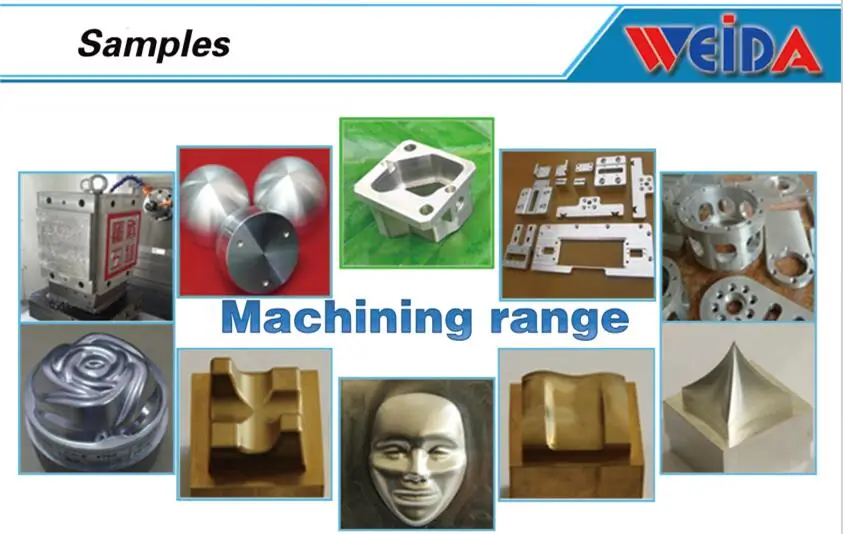

Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams,

molds, connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc.,

for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and

machining center can meet the basic processing requirements.

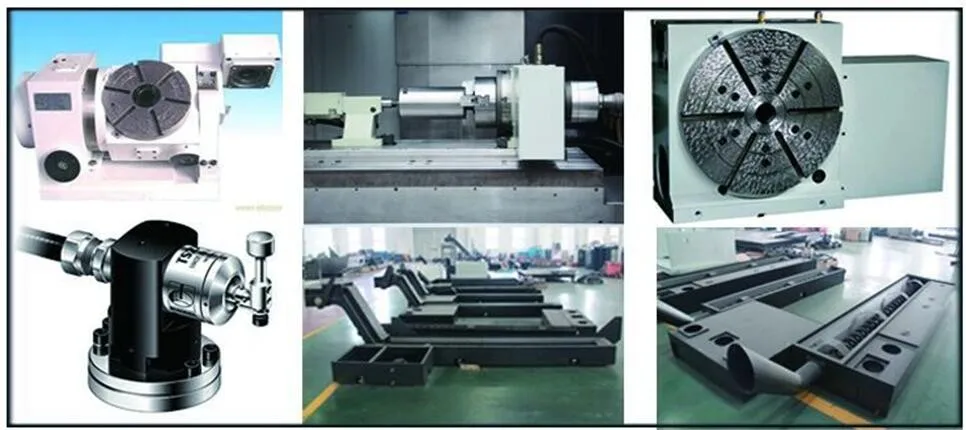

Optional accessories

XH7132A tengzhou WEIDA precision machine cnc mini milling with tool changer can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor. You can choose all the optional accessories according to your demand.

All our machines have been passed CE certification,such as cnc vertical center machine,vertical machining

center,drilling machines etc.. Besides, we also have ISO9001 certificate. Our company complys with European

standard. We always export our machines to European market,such as Poland, Russia, Italy, Germany,America etc.

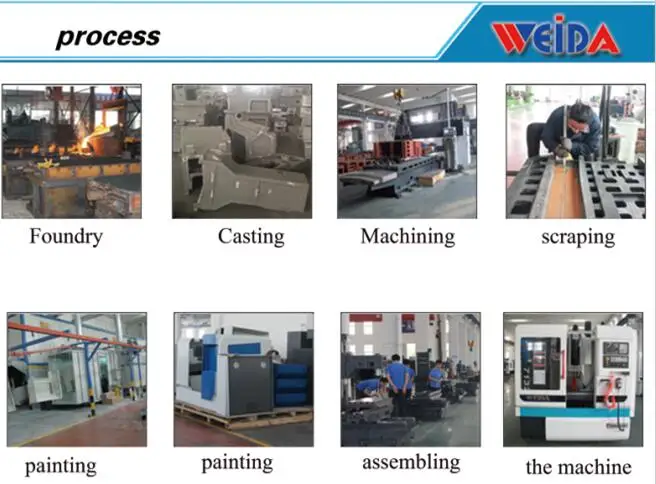

From the moment we recieve your confirmed order,we will begin to arrange the production. First, we will prepare

the castings. We have our own castinng factories,we can make sure its quality.Casting will decide your machine

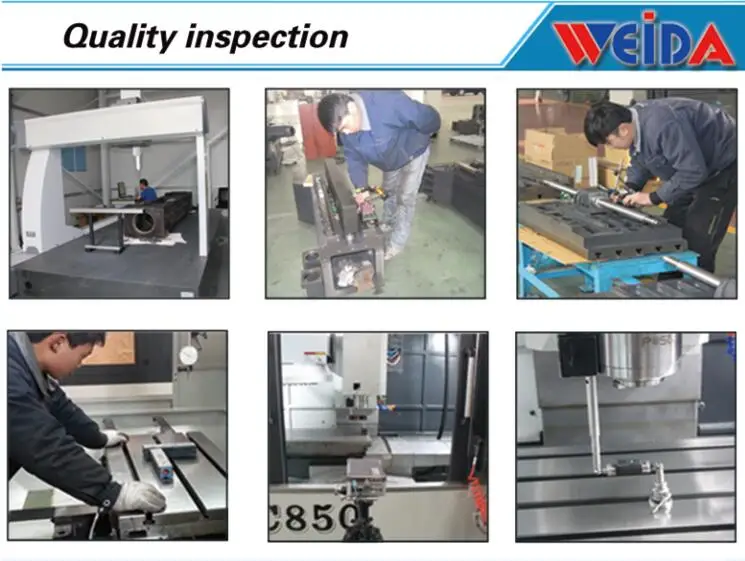

quality. When all the parts are ready, we begin to assemble it. During assembling, we will test every step to control

machine's quality. Large parts and protections will be assembled first, then next is painting. After painting, electrical

will be installed, finally, the machine will be assembled well and  tested. We will control each step, so finally, there

should be no problem for assembled machine. We will deliver an qualified machine to you.

Processing equipment

We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal

machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine,

Shanghai cnc gantry guide rail grinding machine, Beijing cnc gantry type boring milling machine and automatic

powder coating line .Besides, Cnc machine tool project laboratory with with advanced testing equipments is built for quality control.



Every year, we will attend many exhitions at home and abroad. At home, we will attend CIMES,CCMT,

 CANTON fair etc..At abroad, we will attend EMO held in Hannover or Milano, Metalloobrabotka in Moscow,

and other exhibitions,such as Mexico,Turkey,Colombia, Brazil,Indonesia,Thailand, Iran exhibitions etc.

Our machines are sold well and known by many famous customers.

We are always trying our best to exhibit best machine to you. We warm welcome to make business with you if you

are willing. We will be your good supplier. Because we have good quality machine and good service.

Every year, there will be many customers from different countries to visit us. Some of them are our regular

customers. We meet with each other as good friends and talk about our cooperation for next year. Some customers

are our potentional customers, they visit us to see our factory for future cooperation. Everyone will satisfy with our

factory after visiting. Because we are a large manufacturer with good reputation. We have the alibity to supply best

machines . So we warm welcome for everyone's coming. After visiting, you will trust us.
