High Speed Flex Banner printing machine 3.2M allwin solvent printer install 8 head Konica Minolta 512i digital printer price
Key Features：
1)： Stepless height adjustable of printhead.
2)：Auto-Cleaning System
3)：Adopt KM512i/30PL printhead which can achieve high quality printing for short distance observation
Specifications
Equipment model | BH-KM3208 |

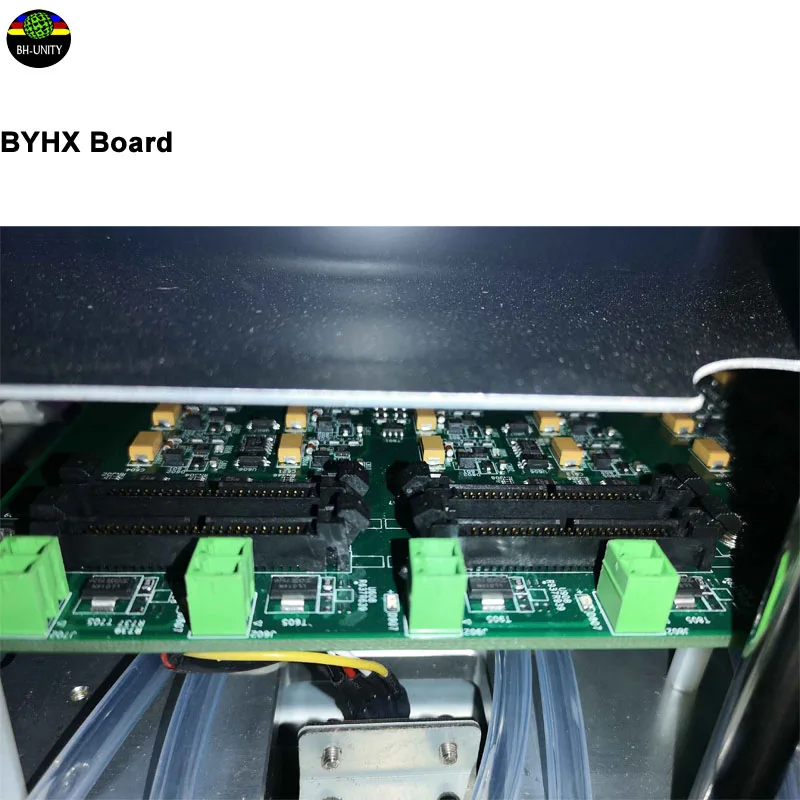

Control board | BYHX |
Carriage motor | Panasonic 400w Carriage motor |
Drag chain | Germany IHUS Drag chain |
Carriage belt | ITALYA MEGADYNE |
Linear guide | Japan THK linear guide with mute the slider |
Printer frame | High quality & strong Printer frame |
Beam | Aluminum beam (straightness 0.1mm、flatness 0.05mm) |

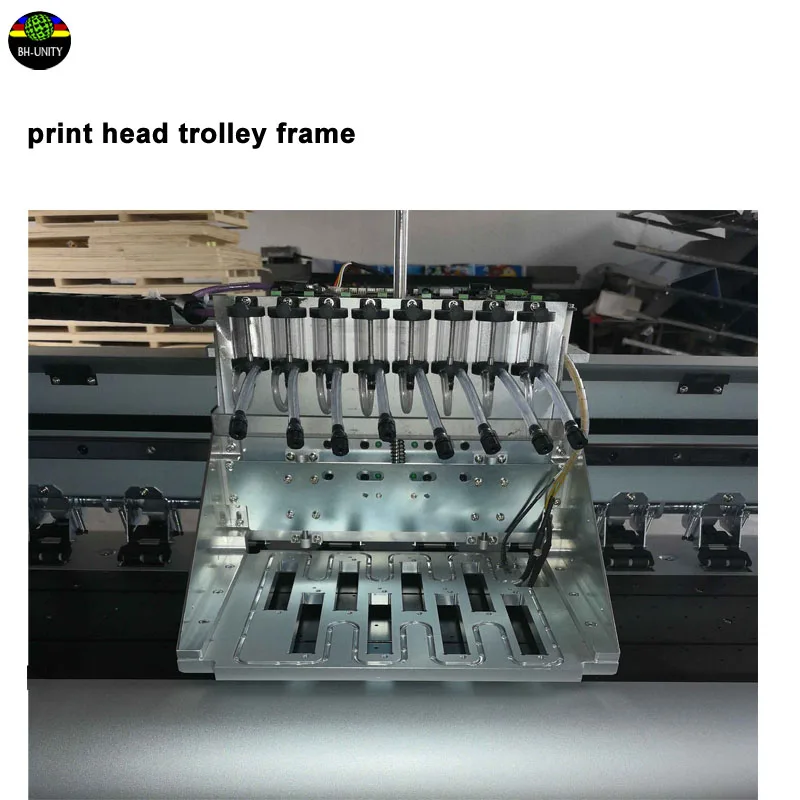

Carriage | Lift type carriage |
Head type | KM512i-30Pl |
Head height | 1-10mm |
Maximum printing width | 3200mm |
Apply the ink | Solvent ink |
Applied materials | Light box cloth/coiled material |
The ignition frequency | 20KHZ |
The printing speed | 2Pass 3Pass 6Pass 8Pass |
The printing speed | (4H) 140m²/h 90m²/h 45m²/h 35m²/h |
(8H) 280m²/h 180m²/h 90m²/h 70m²/h | |
Print accuracy | 480×360dpi 480×540dpi 720×1080dpi 720×1440dpi |
RIP software | MainTop/Photoprint |
Nozzle moisturizing | Industrial nozzle special device |
Drying system | Intelligent infrared heating & Drying system |
Feed/collect system | Auto Feeding & collecting system |
Environmental conditions | Temperature：16-30 Relative Humidity：40%-60% |
Power supply/power | AC220/1500W(print) 3000W(Dry) |
Product size(mm) | 5000×1200×1700mm |
Product weight | 980kg |
Products Description

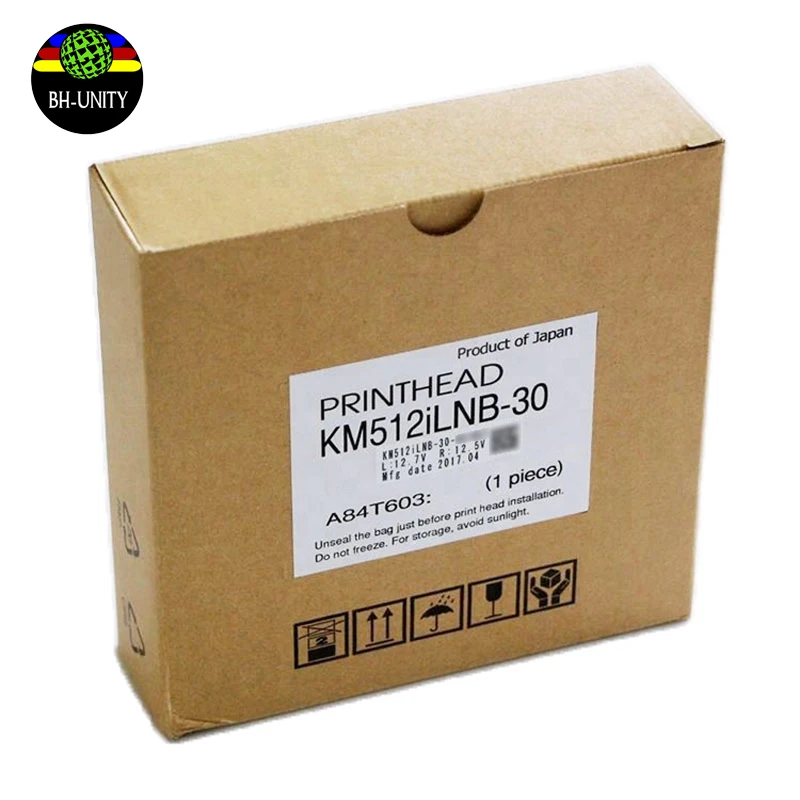

konica 512i LNB printhead

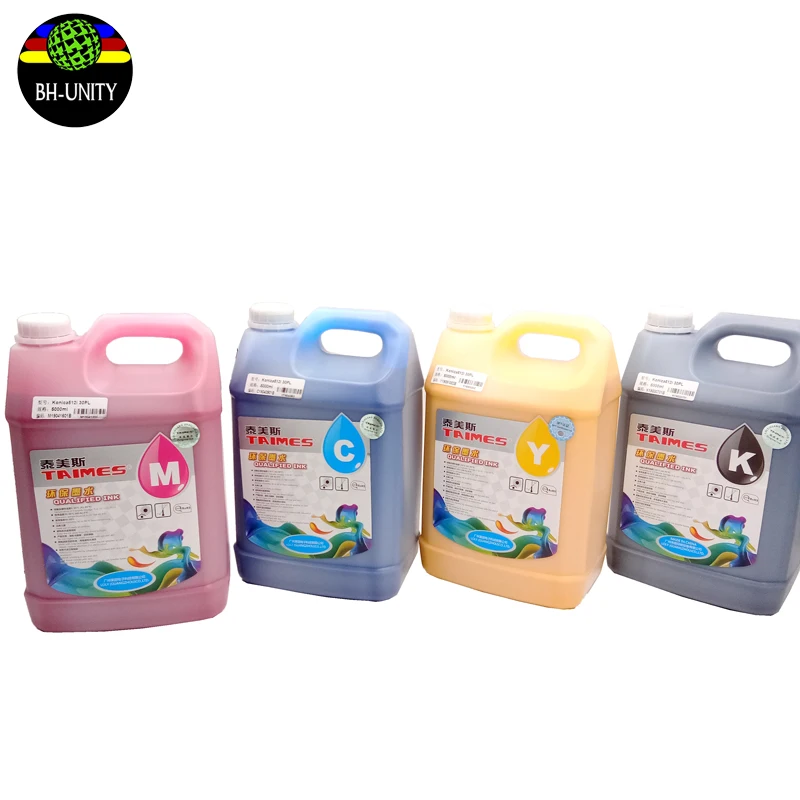

Solvent Ink
Widely Applications
Factory & Production Process
Packaging & Shipping
Machine Size | 5000×1200×1700mm |
Net Weight | 980kg |
Packaging Details | The normal package is wooden box |
Our Serives
Pre-Sales Service
*24 hours Inquiry and consulting support
*Printer video and pictures available
*View our Factory
* Punctual delivery
After-Sales Service
*Video training how to instal the machine, training how to use the machine
* One year warranty
* Remote guidance
