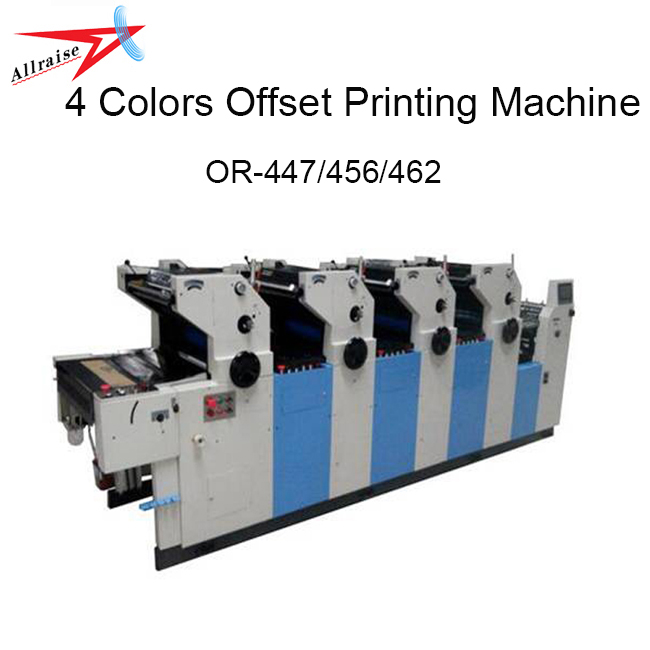

OR-447 Soft Cover 4 Colour Offset Press Printing Machine
Specification
Product name | OR-447 Soft Cover 4 Colour Offset Press Printing Machine |
Max sheet size | 470*345mm |
Max printing area | 450*365mm |
Paper sheet weight | 28-250g/m² |
Printing speed | 7000sheets/hour |
Plate size | 470*395*0.15mm |
Blanket size | 470*420*1.95mm |
Ink roller | 14pcs (3 Forme Inking Rollers) |
Dampening roller | 5pcs (2 Forme Inking Rollers) |
Power Of main motor | 4KW |
Power of air-pump motor | 1.5KW |
Voltage | 220V/50HZ |
Machine weight | 2000kg |
Overall dimensions | 3930*900*1400mm |
Brief
This machine is better than heavy-duty machine in printing thin paper.It can do single- color printing,2.3.4-color printing and skipping printing.It adopts automatic pneumatic feeding water,ink and pressure.It can be assembled according to the customer's requirement. Traditional two-times small cylinder or new one big cylinder transfer way is optional.Heavy-duty transfer paper gripper can make the maintenance much easier.

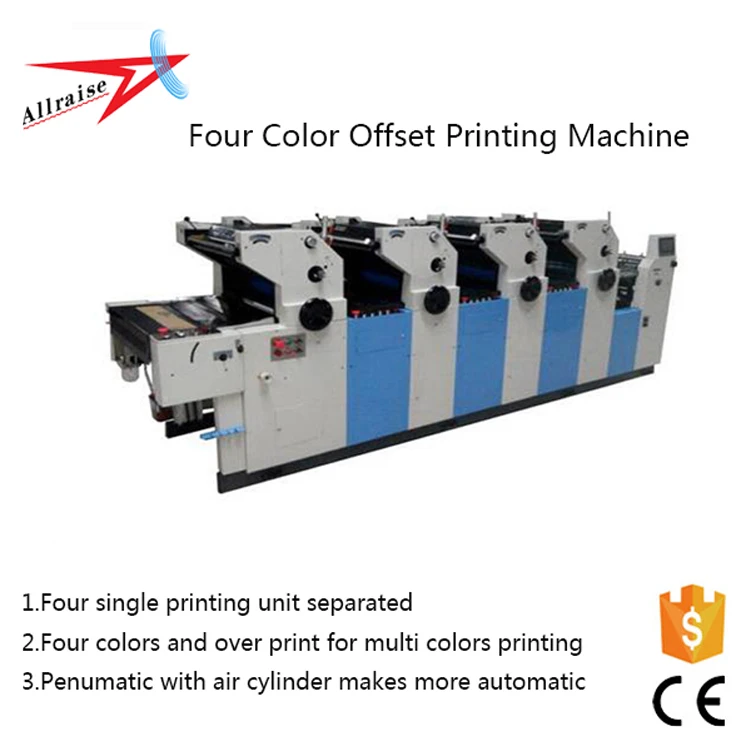

Main Features
1. Four single printing unit separated.
2. 4 color and over print for multi colors printing.
3.Pneumatic with air cylinder makes more automatic.
4.New structure of paper transfers stable and quick dry.
5.3 forme ink rollers and 2 forme dampening roller model.
6.Common use for posters, magazines, book, brochures,catalogs printing.
If you want to know more products,Please click here !
Whatsapp:+8615617847962
Shipping (Normally arrive port time in working days) | |||||
Destination | Express/Courier | Ship by sea | Ship by air | Ship by EMS | |
North America | 3-7 days | 15-25days | 5-7 days | 10-12 days | |
South America | 3-7 days | 15-25days | 5-7 days | 10-12 days | |
European Countries | 3-7 days | 25-35days | 5-7 days | 10-12 days | |
Africa Countries | 3-7 days | 45-65days | 5-7 days | 10-12 days | |
The Middle East | 3-7 days | 15-25days | 5-7 days | 10-12 days | |
Australia | 3-7 days | 15-25days | 5-7 days | 10-12 days |
Zhengzhou Allraise Machinery Company Ltd have been designing, developing, manufacturing and marketing Machinery for more than 10 years. After these
years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system. So choose us, equaling to choose the competitive price and stable quality both.
Welcome to contact me, expect to cooperate with you Sincerely!
