Высокоскоростная машина для ротогравировки рулонов пластиковых

Высокоскоростная машина для ротогравировки рулонов пластиковых

Категории: Машины для ротационной глубокой печати >>>
Поставщик: Zhejiang,Deguang,Machinery,Co.,Ltd.

Цена:55 000,00 $ - 60 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

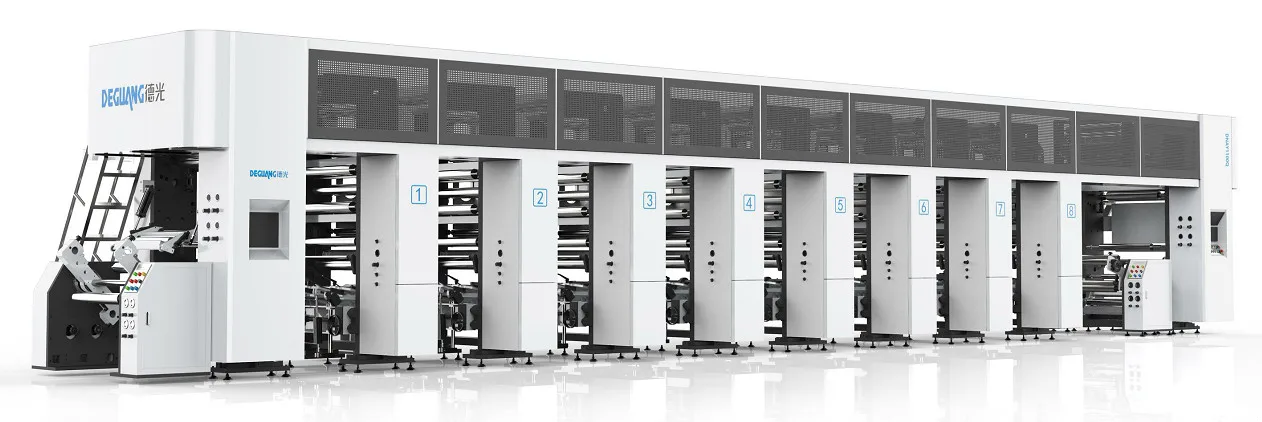

High Speed Plastic Label Roll Rotogravure Printing Machine

Application:

This machine is suitable to print bopp, pet, cpp, pe, pvc, nylon, paper etc.,
it is widely used in soft packaging like food bag, shopping bag, shrink sleeve label etc.

Feature:

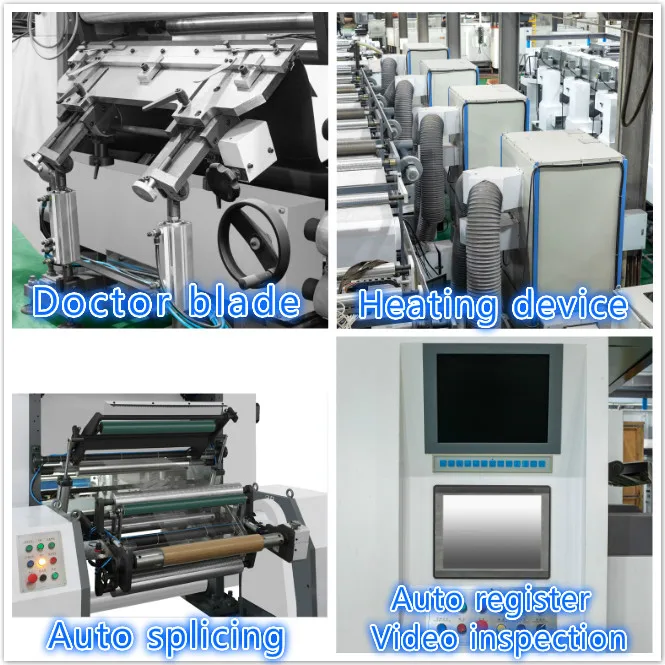

1. Seven motor control system

2. Chassis without connection which is stable during high speed running
3. Unwind and rewind each controlled by two servo motor, automatic splicing
4. Infeed and outfeed controlled by servo motor

5. Horizontal and vertical automatic register, video inspection monitor installed
at both unwinder and rewinder side which is convenient for operation
6. Pneumatic ink circulation, pneumatic doctor blade, pneumatic pressing roller

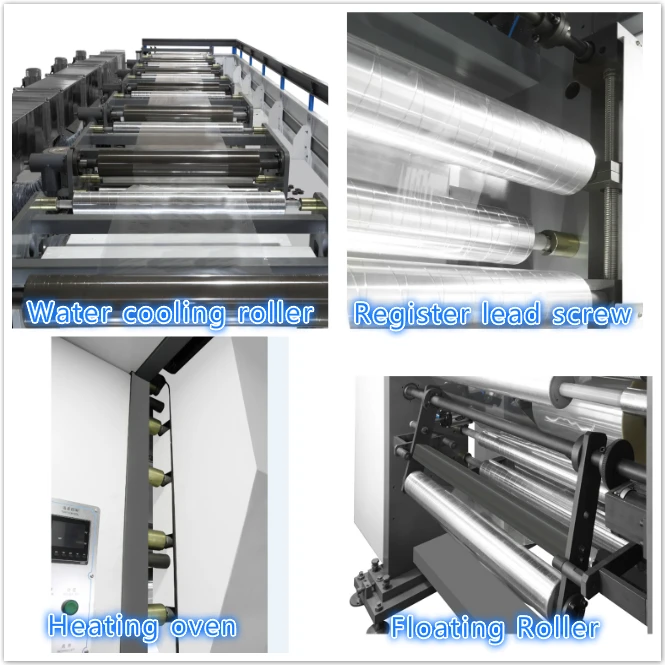

7. Water cooling and air cooling
8. Floating roller to adjust tension
9. Heating by electric or hot air or gas or thermal oil

Specification:

Model	DNAY800C	DNAY1100C
Colors	8 colors	8 colors
Printing width	800mm	1100mm
Material width	850mm	1150mm
Printing material	bopp, pet, cpp, pe, pvc, nylon, paper
Max printing speed	180m/min	180m/min
Max mechanical speedd	200m/min	200m/min
Register accuracy	±0.1mm horizontal and vertical
Unwind and rewind diameter	600mm	600mm
Paper core diameter	76mm	76mm
Printing cylinder diameter	100-400mm	100-400mm
Power	210kw	210kw
Weight	34000kg	36000kg
Dimension	1850035003000mm	1850038003000mm
