China factory supply YGM 130/95/85  high-pressure grinding mill

more than 30 years experience

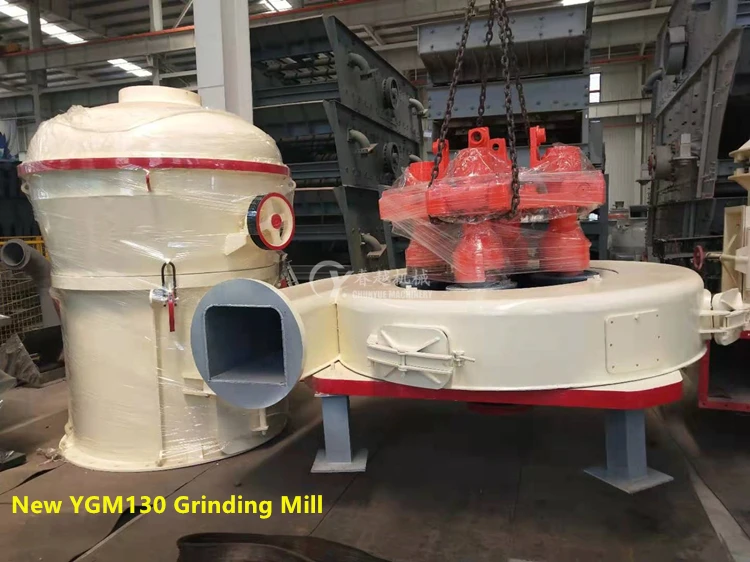

Introduction of ygm130 grinding mill

In the main frame, a 1500-2000kg powered pressure spring is fixed to the roller suspender, after the grinding machine is put into effect, the rollers rotates aound the shaft, and rolls closely against the ring effected by the high pressure spring and centrifugal force. The rolling pressure is 1.2 times higher than that of the tradiontal raymond grinding machine under same powder and the output is rasied to asubstant degree.



Technical parameter of grinding ygm130 mill:

Machine name: high pressure raymond mill

model: YGM130

grinding rollers numbers: 5

grinding ring numbers: 1

grinding roller inside diameter: 410X210mm

grinding ring size: 1280X230mm

max feeding size:30mm

output size: adjustable 0.95-0.033mm

power: 75+75+7.5kw

capacity: 3-9.5tons per hour



Other models from our factory for your selection:

Our experience from more than 200 successful cases:

\\

Most of dry materials can be grinded by grinding mill ygm, this machine can accept max 6%  moisture. If your materials is not dry enough, it need to reduce moisture before grinding.
