Product Description
12m Rotating Lighting Telescopic Mast
Product property
Our product has the advantages of large load, low noise, fast
lifting, strong buffering performance, stable performance
and the like.
The application and prospect
The Lighting Pneumatic Telescopic Mast plays an important role in natural disasters, emergency rescue at night, and lightning at the Golf course and large football field.
Specifications | |
Closed length | 2.65m |
Extended length | 12m |
Payload | 20kg |
Number of sections | 7 |
Max Working pressure | 0.20MPA |
Collar style | locking collar |
Working Temperature | -40--+40C |
Max outer diameter | 160mm |
Diameter of bottom plate | 235mm |
Diameter of top plate | 120mm |
Material | Main Pole: Aluminum magnesium alloy 6063B |
Color | Light brown |
Detail
Mast material is aluminum alloy 6063-T5
Tube surface treatment is Hard anodizing
Color:Bronze and origin silver color for choose.

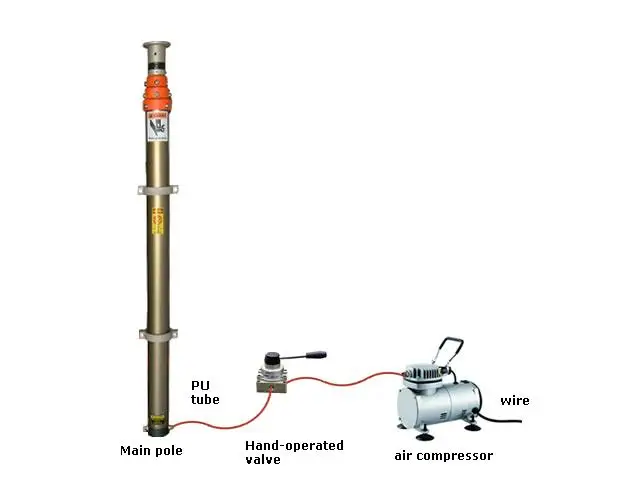

Acessories for 12m portable field locking telescopic pneumatic mast .
Operation steps
1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
9. when lift down the mast, please pull down the lifting control valve handle bar..
