Модуль ЖК-дисплея COB 16x2 STN
US $0.30-$1.00
Подойдет как для повседневной носки так модуль FSTN положительный графический ЖК-дисплей cog ST7565P-G 132x64 точечно-матричный
- Категории: >>>
- Поставщик: Formike,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification

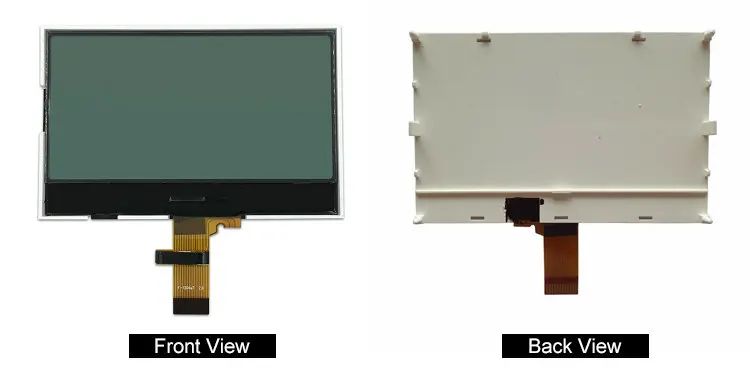

Product Name | Mono module FSTN positive graphic lcd cog ST7565P-G 132x64 dot matrix display |
Display format | 132x64dots |
Display mode | FSTN, Positive, Transflective |
Backlight | white led backlight |
Module Size | 86.24x55.71x10.4mm |
Viewing Area | 79.56x40.12mm |
IC Driver | ST7565P-G |
Interface | I2C |
Viewing Angle | 6 O'clock |
Working Temperature | -30℃~+70℃ |
Product Description
Packing & Delivery
Standard carton, carton size: 53x35.5x25.5cm
Related Product

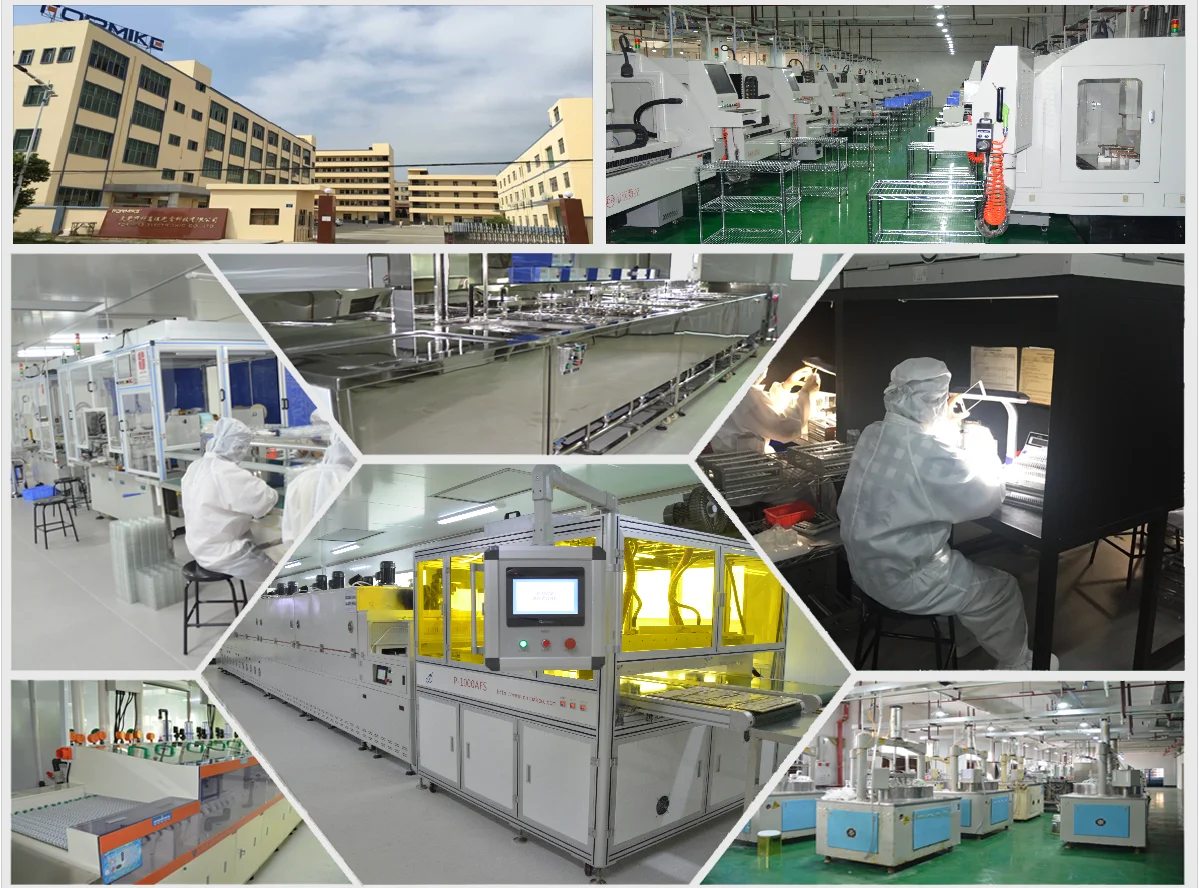

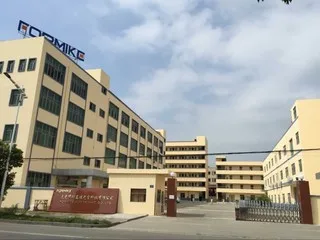

Company Profile
Formike group, 20-year manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and custom LCD solution, phone parts and wifi modules.
1) TFT display from 1.4 inches to 10.4 inches
2) Monochromic display from TN, HTN, STN and FSTN LCD panels, as well as graphic, character and digital/segment LCD modules
3) Front/printed glass from 0.2mm to 3.0mm thickness, tempering by ourselves
4) LED backlight brightness of more than 10,000cd per square meter
5) Capacitive touch can be 10 multi-touch points
6) Optical bonding can be applied from cellphones and industry
7) More than hundred kinds of wifi mdoules whichever you want
8) No MOQ for Bezel and 3 days for delivery
1) TFT display from 1.4 inches to 10.4 inches
2) Monochromic display from TN, HTN, STN and FSTN LCD panels, as well as graphic, character and digital/segment LCD modules
3) Front/printed glass from 0.2mm to 3.0mm thickness, tempering by ourselves
4) LED backlight brightness of more than 10,000cd per square meter
5) Capacitive touch can be 10 multi-touch points
6) Optical bonding can be applied from cellphones and industry
7) More than hundred kinds of wifi mdoules whichever you want
8) No MOQ for Bezel and 3 days for delivery
FAQ
1.Q: Order process
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confim the analysis report → Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confim the analysis report → Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
