Пассивный Инжектор POE 12 Вт 24 В постоянного тока 0 5 А гигабитный Ethernet-адаптер RJ45 Настольный тип коммутатор Ethernet источник

Описание и отзывы

Характеристики

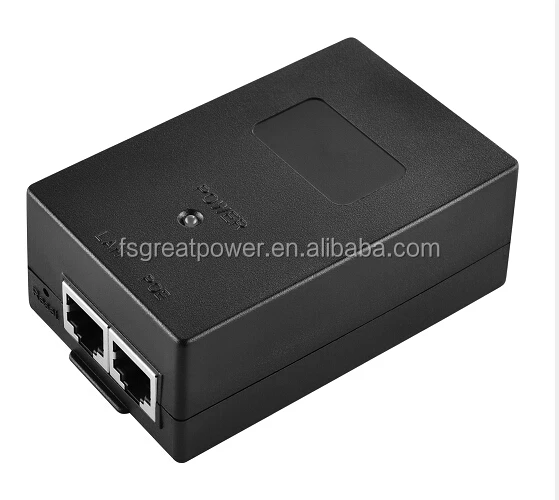

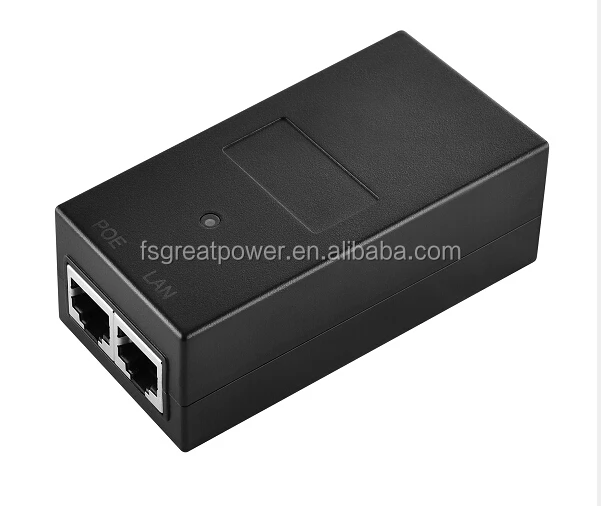

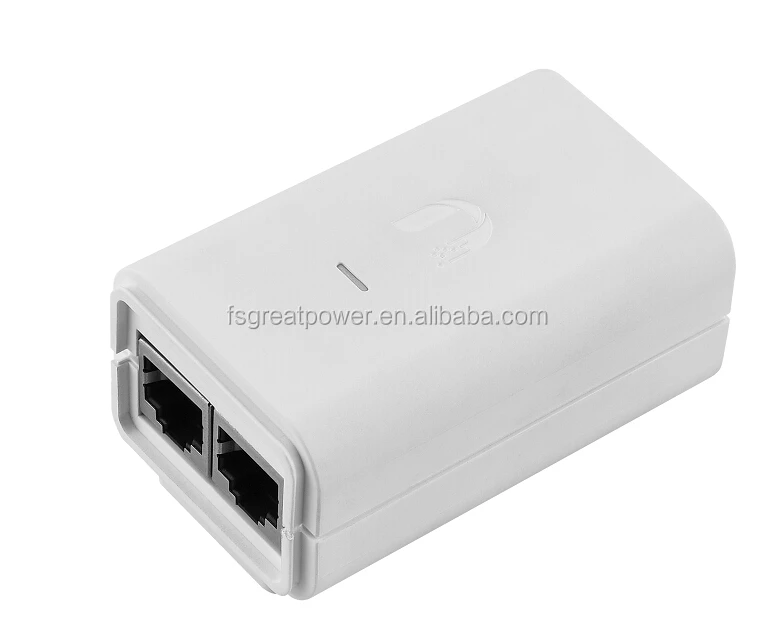

 passive  POE injector / Power-Over-Ethernet ( RJ45 POE) adapter / POE Splitter  POE power supply for  POE Switch/ Security Cameras /IP phone



Model Number	GRT-240050A
Input  Voltage	100-240Vac, 50~60Hz (92~264Vac)
Input Current	0.6A(RMS) max.
Input Type (fixed plug)	Desk-top type, IEC320-C6 or C8
Output Voltage / Power	24Vdc 0.5A 12W
Output type	Single outputa 1*RJ45 connector ---POE 1*RJ45 connector ----LAN
Ethernet speed Pin assignment	10/100Mbps:Midspan (45/78) Or Endspan (12/36), 2 pairs 10/100/1000Mbps  Midspan (45/78) Or Endspan (12/36), 2 pairs
Network Protocol (IEEE802.3)	Non-compliance IEEE802.3
Material	Plastic
Approval	CE/ROHS/FC
Warranty	3years
Output Ripple	1% Max
Efficiency	≥80%
Response Time	<1ns
Combined Load Regualtion	±3%
Combined Line Regualtion	±5%
LED indicator	Power on, Green   (With Plastic enclosure)
Operating Temp	0 to 40℃ (32 to 104℉)
Storage Temp	(-)20 to 85 ℃  ( -22 to 158 ℉)
Operating Humidity	10~ 90% Non condensing
Shipment	By Sea or By Air Express: DHL/UPS/TNT/FEDEX ect
Package	Inner white box + Outer box
Carton Size:	460*390*200mm  (L*W*H)
Qty/ Carton	100pcs

* Support long distance for data, upto 100meters

* Data and Power passed by the ethernet cable

* Full protection:Overload/Over current/ Over voltage/ Short circuit

* Application: IP Phone, Voip Phone, Wireless Networks Access Points, IP print servers, Blue tooth access points , Security Cameras, smart door systerm  and more















About GREAT:



*. Offer OEM service, accept print your own logo and special requirements for package and others



*. Experienced Techncial team, to provide kinds of solutions



*. Provided authorized certifications



*. 100% Full Burn-In Testing, stictly inspect and control during production



*. 1-3 Year warranty

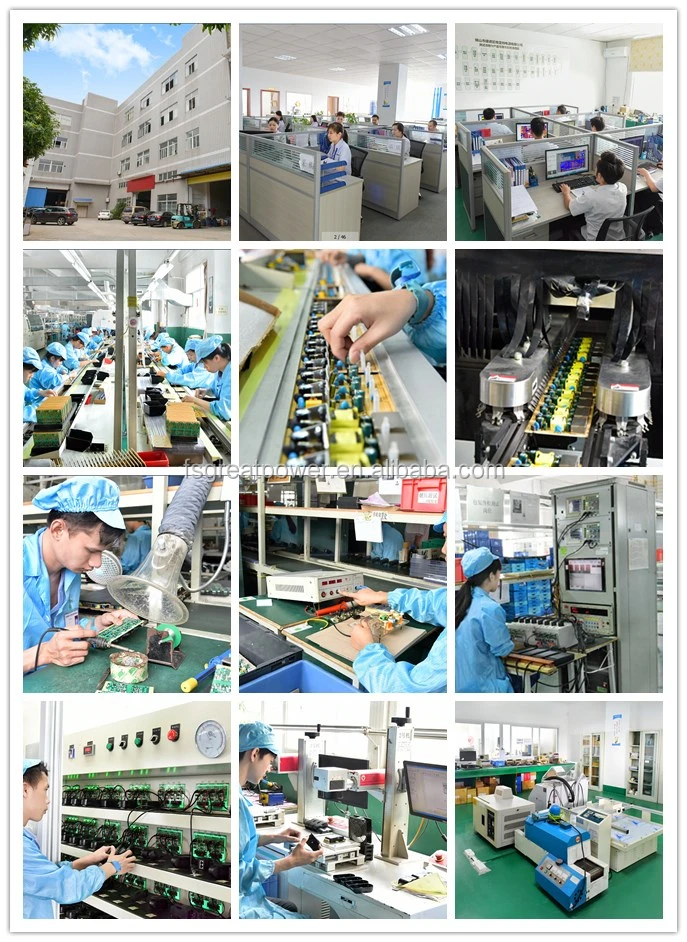

*. Owned kinds of Testing machines: Burn-in Room,High & Low  Temperature Tester, Performance testing instrument, Salt spraying tester,Drop tester ect.
