Лидер продаж акриловая клейкая перекрывающаяся застежка с двойным замком 3M SJ3550 от компании Richeng круглый
- Категории: Hook & Loop Tape >>>
- Поставщик: Shenzhen,Richeng,Electronic,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Details description
3M™ Dual Lock™ Reclosable Fastener SJ3550
- Black, interlocking mushroom-shaped heads (250 stem density per square inch) provide strong, reliable and durable fastening that can be opened and closed multiple times
- Mates with Type 170, Type 250 or Type 400 stem densities to provide different strength combinations
- White, acrylic, conformable foam tape bonds well to a variety of substrates including metals and plastics such as acrylics, polycarbonate and ABS
- Strong fastener secures with an audible snap, verifying closure
Specifications
Attribute Name | Value |
|---|---|
Adhesive Type | General Purpose Acrylic Adhesive |
Applications | Attaching City Bus light fixtures, Ceiling Attachment, Privacy Curtain Rail Attaching, Sunroof Trim Attachment, Wall Headliner Attachment, Wall Panel Attachment |
Brand | Dual Lock |
Closure Life | 1000 |
Color | Black |
Engaged Thickness | 0.23 Inch |
Flame Retardant | No |
Indoor/Outdoor | Both |
Industries | Automotive, Construction, Electronics, Furniture, General Industrial, Medical, Military & Government, MRO, Packaging, Retail, Specialty Vehicle, Transportation |
Length | 50 Linear Yard |
Length (Metric) | 45.72 m |
Low Profile | No |
Maximum Operating Temperature (Celsius) | 93 Degree Celsius |
Maximum Operating Temperature (Fahrenheit) | 200 Degree Fahrenheit |
Primary Liner | Clear Polyolefin |
Primary Liner Thickness | 4 mil |
Product Form | Roll |
Solution for | Wireless Network: Infrastructure Accessories |
Stem Density | 250 |
Substrate 1 | Glass (Inked Glass - Ceramic), Metal (Aluminum - Powder Coated - Copper - Stainless Steel - Zinc/Galvanized), Plastics/Composites (ABS - Carbon Fiber - Acrylic - Fiberglass - Polycarbonate - Polyester - Polyimide - Polystyrene - Rigid Vinyl) |
Substrate 2 | Glass (Inked Glass - Ceramic), Metal (Aluminum - Powder Coated - Copper - Stainless Steel - Zinc/Galvanized), Plastics/Composites (ABS - Carbon Fiber - Acrylic - Fiberglass - Polycarbonate - Polyester - Polyimide - Polystyrene - Rigid Vinyl) |
US Govt Contract Number | GS-15F-1429H |
Volatile Organic Compounds (VOCs) | See Safety Data Sheet, Regulatory Data Sheet |
Width | 0.5 Inch, 0.75 Inch, 1 Inch, 1.5 Inch, 2 Inch, 3 Inch, 6 Inch |
Width (Metric) | 12.7 mm, 152.4 mm, 19.05 mm, 25.4 mm, 38.1 mm, 50.8 mm, 76.2 mm |
3M™ Dual Lock™ Reclosable Fastener SJ3550 | 3M United States
Details
- Black, interlocking mushroom-shaped heads (250 stem density per square inch) provide strong, reliable and durable fastening that can be opened and closed multiple times
- Mates with Type 170, Type 250 or Type 400 stem densities to provide different strength combinations
- White, acrylic, conformable foam tape bonds well to a variety of substrates including metals and plastics such as acrylics, polycarbonate and ABS
- Strong fastener secures with an audible snap, verifying closure
- An alternative to screws and bolts, this hidden fastener provides a snug fit and smooth aesthetic appearance
- Features good temperature resistance of 200°F (93°C)
- Best suited for indoor and outdoor use
3M™ Dual Lock™ Reclosable Fastener SJ3550 is the convenient alternative to traditional fastening methods, such as screws, nuts or bolts. It is designed to deliver a durable, reclosable fastening solution (which can be opened and closed multiple times) which bonds to a variety of substrates including metals and plastics such as acrylics, polycarbonate and ABS.
3M™ Dual Lock™ Reclosable Fasteners are available in three stem densities to customize for the strength requirements of your project
- Access panels
- Graphic attachment
- Specialty vehicles (interior attachments)
- General industrial attachment
- Small components
Design Flexibility
3M™ Dual Lock™ Reclosable Fastener SJ3550 consists of interlocking mushroom-shaped heads that easily slide over each other, allowing for positioning of parts before being snapped together. This fastening process creates a durable attachment and provides fast product assembly with great design flexibility. Our reclosable fasteners can also engage with different stem densities for varying levels of strength and system performance.
3M™ Dual Lock™ Reclosable Fasteners sound an audible snap when secure, which verifies closure of the attachment. To disengage, simply peel the pieces apart by hand. Our fasteners maintain their strength throughout multiple attachments and detachments. A lightweight alternative to metal fasteners, this product remains hidden beneath surfaces and does not interfere with the integrity of your material—providing aesthetic improvements and design flexibility.
Hundreds of Reattachments in a Snap

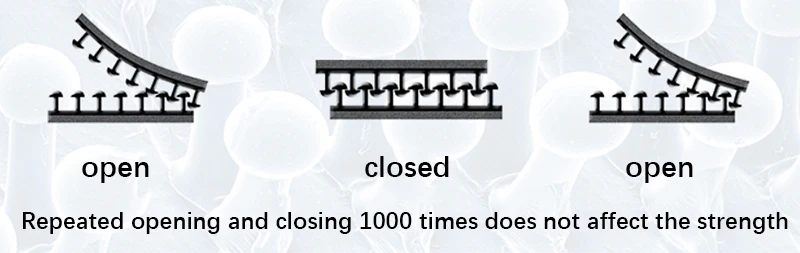

When two pieces of 3M™ Dual Lock™ Reclosable Fasteners mate, the stems flex and the mushroom heads slide past each other. After passing the opposing mating piece, the stems snap back into their original position and the opposing mushroom heads interlock. These fasteners can provide high tensile strength but can be opened by simply cleaving or peeling open the closure. This product is well suited for many indoor and outdoor applications where a high strength and versatile reclosable fastening system is required.
Advantages
Similar products

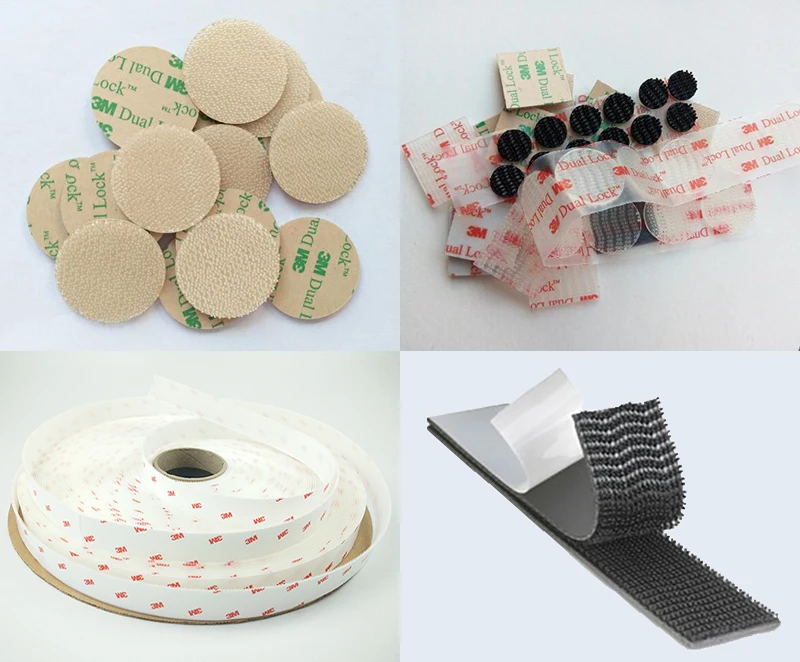

We have many kinds of dual lock tape. Please feel free to contact us if you need other types of dual lock tape
Our Services
We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.
Company Information
SHENZHEN RICHENG is established in April 2012, we are specialized in selling 3M brand products, including 3M double sided tape, VHB tape, PE/PU foam tape, 300LSE/ 200MP tape, 3M bumpon, 3M dual lock, 3M masking tape, 3M electrical tape, 3M adhesive /glue and so on.
We also have different cutting machines and professional team to offer good die cutting service according to your request and drawing.
Contact us
Q1. If you can provide samples?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1 day, mass production time needs 1-3 days for order quantity more than 1000 rolls
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. What is the customer order process
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
