Product Overview
Japan Warrior Viscosity Controller
Samurai viscosity controller
Samurai is committed to the "viscosity controller: development and production, its excellent quality, comprehensive after-salessupport, better service for the soft packaging industry.
Performance introduction: The machine is suitable for printing industry automatic dilution ink, and glue viscosity, simple and convenient use, withoutmanual adjustment ink, just according to product requirements, set a good viscosity value, pulse detector testing viscosity,pneumatic diaphragm pump cycle ink and glue, safe, reliable and accurate detection of viscosity, using viscosity controllerautomatic tracking monitoring, printing, composite, the viscosity of the coating.
Samurai is committed to the "viscosity controller: development and production, its excellent quality, comprehensive after-salessupport, better service for the soft packaging industry.
Performance introduction: The machine is suitable for printing industry automatic dilution ink, and glue viscosity, simple and convenient use, withoutmanual adjustment ink, just according to product requirements, set a good viscosity value, pulse detector testing viscosity,pneumatic diaphragm pump cycle ink and glue, safe, reliable and accurate detection of viscosity, using viscosity controllerautomatic tracking monitoring, printing, composite, the viscosity of the coating.

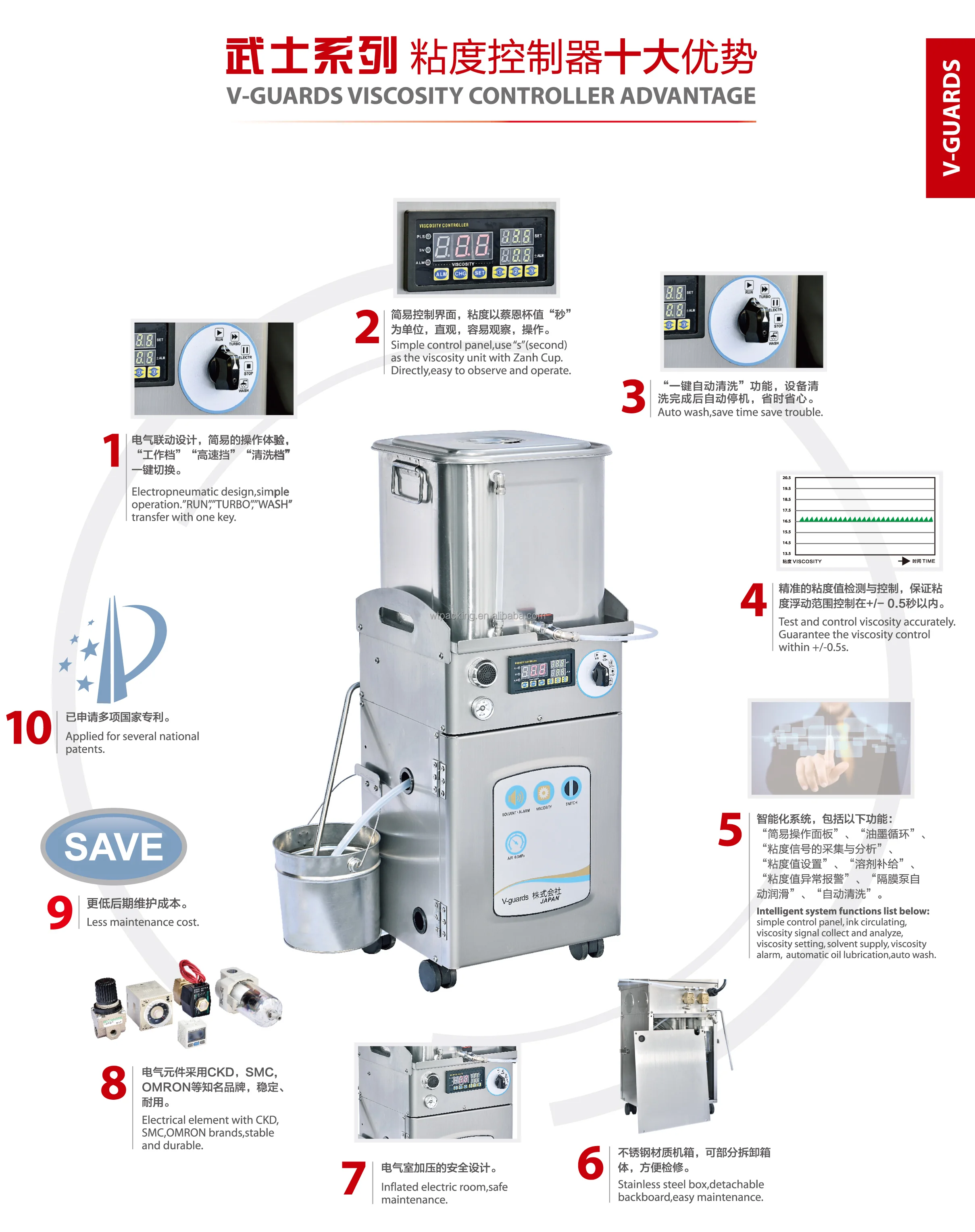

advantages
* improve printing quality, save labor and less ink
* automatic cleaning system: 70 seconds extreme cleaning, no human operation required
* automatic tracking: when the actual viscosity exceeds the preset value. The system sends its own alerts
* the design operators of the five modes choose different gears according to the requirements, which makes the operation easier
*2% control accuracy viscosity fluctuation range can be controlled within 0.5 seconds
* the minimum volume of similar products is designed for easy placement
* improve printing quality, save labor and less ink
* automatic cleaning system: 70 seconds extreme cleaning, no human operation required
* automatic tracking: when the actual viscosity exceeds the preset value. The system sends its own alerts
* the design operators of the five modes choose different gears according to the requirements, which makes the operation easier
*2% control accuracy viscosity fluctuation range can be controlled within 0.5 seconds
* the minimum volume of similar products is designed for easy placement
FEATURES AT A GLANCE
Model：V-10
Dimension: 300x320x750mm
Solvent tank: 12L capacity, 304 stainless steel barrel
Solvent tank: 12L capacity, 304 stainless steel barrel
Control range: Zahn Cup 13-30 sec
ln-tube: 6.5x10mmx2.5m
Out-tube: 8x12mmx2.5m
Ink circulation: 1.5-4.5L/min
Air consumption: 40L/min
Working pressure: 0.3Mpa
Working voltage: 220V,40W
Application: Roto-gravure or Flexo Printing
(Sub Tank under 20L)
ln-tube: 6.5x10mmx2.5m
Out-tube: 8x12mmx2.5m
Ink circulation: 1.5-4.5L/min
Air consumption: 40L/min
Working pressure: 0.3Mpa
Working voltage: 220V,40W
Application: Roto-gravure or Flexo Printing
(Sub Tank under 20L)
Model：V-15
Dimension: 300x320x750mm
Solvent tank: 12L capacity, 304 stainless steel barrel
Control range: Zahn Cup 13-60 sec
ln-tube: 11x16mmx2.5m
Out-tube: 25x16mmx2.5m
Ink circulation: 7.5-19L/min
Air consumption: 160L/min
Working pressure: 0.3Mpa
Working voltage: 220V,40W
Application: Roto-gravure or Flexo printing
Laminating,Coating
(Sub Tank over 40L)
Solvent tank: 12L capacity, 304 stainless steel barrel
Control range: Zahn Cup 13-60 sec
ln-tube: 11x16mmx2.5m
Out-tube: 25x16mmx2.5m
Ink circulation: 7.5-19L/min
Air consumption: 160L/min
Working pressure: 0.3Mpa
Working voltage: 220V,40W
Application: Roto-gravure or Flexo printing
Laminating,Coating
(Sub Tank over 40L)
Model ：V-20
Dimension:780*380*300mm
Appearance:304 Stainless Steel
Control Range:NO.4:13~50s
Control Precision:0.5s
Suction Hose:25*19mm*2.5m
Delivery Hose:25*16mm*2.5m
Circulation Volume:19~54 L/min
Air Consumption:160 L/min
Working Pressure:0.6MPa (Or: 6kg / 6Bar)
Working Voltage:220V
Max. Volume of Sub-tank:80L
Appearance:304 Stainless Steel
Control Range:NO.4:13~50s
Control Precision:0.5s
Suction Hose:25*19mm*2.5m
Delivery Hose:25*16mm*2.5m
Circulation Volume:19~54 L/min
Air Consumption:160 L/min
Working Pressure:0.6MPa (Or: 6kg / 6Bar)
Working Voltage:220V
Max. Volume of Sub-tank:80L
