LED Solar Street Light Lamp



About solar street light working principle:

The solar street light relies on solar energy, which is clean, endless and environment-friendly. The system is mainly composed of solar panel, light source, controller and battery. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloudy condition, the battery shall supply power for normal lighting. The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.



Company Information





We Are Manufacturer

Since 1998, we’ve manufactured solar street light for over 15 years.

We manufacture main components from LED source, light fixture, solar panel, pole and even painting powder to control the cost and quality.

We produce solar LED street light from 5W-100W and pole height from 3M-12M

We are capable to produce 10,000 LED solar street lights per month



Components	Parameters
Solar Module	Pmax(W)	30-400W
	Vmp (V)	35.0V
	Imp (A)	2.86A
Light Fixture	Material	Aluminum die casting & Toughened glass
	Operating Temperature	-40°C~75°C
	Protection Level	IP65
LED Light Source	LED Chip	BRIDGELUX / Cree (Top brand in U.S.A.)
	Color Temperature	3800-6500K(white)
	Luminous flux	5300 LM
	Operating temperature	-40°C~75°C
	Current Source	DC 12V/24V
	Power	15W/18W/21W/24W/30W/36W/42W/48W/54W/60W
Lighting Pole	Height	3m/ 4m/ 5m/ 6m/ 7m/ 8m/ 9m/ 10m/ 11m/ 12 m
	Material	BAOSTEEL GROUP Q235/345/GR60
	Surface Treatment	Hot-dip galvanizing, Static spray,
	Size	φ60-φ200,δ3-5m, vary according to models
	Flange Plate	300*300*16, vary according to models
Battery	Capacity	200AH (100AH*2pcs)
	Type	Gel/AGM Battery
	Dimension	546*1203*30
	Weight	28Kg
Controller	Rated voltage and current	12V/10A or 24V/10A waterproof
	Weight	0.165Kg
	Two times rainy day backup &Protective Function	Two times of rainy day backup. Good protection: overcharging, discharging, voltage surge, reverse polarity, etc.
Accessories	Cable	2.5 mm2, 15m
	Battery Box	200AH ABS battery box or metal box with hot-dip galvanizing spray treatment
	Foundation Kit	Dismountable foundation kit, saving in shipping

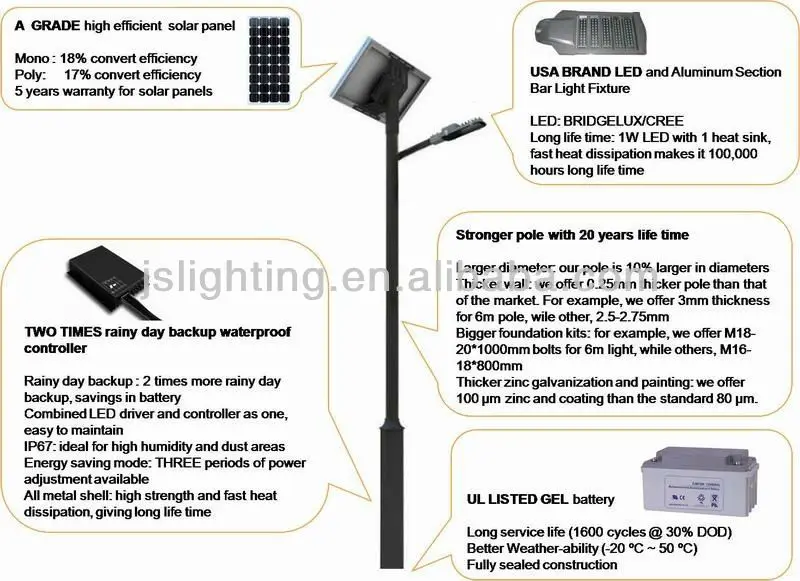

Solar Street Light Details



A GRADE high efficient solar panel

Solar panels are made of monocrystalline or polycrystalline silicon solar cells, series connection or parallel connection,

then hotpressed and sealed by tempering glass and EVA,TPT, equipped with aluminum alloy frame, have the characteristic of the windresistant, hail resistant and easy installation. The panel is widely used in solar lighting, lamps, household power supply, road transport, building and photovoltaic power station, etc.

Mono: 18% convert efficiency

Poly:  17% convert efficiency

5 years warranty for solar panels

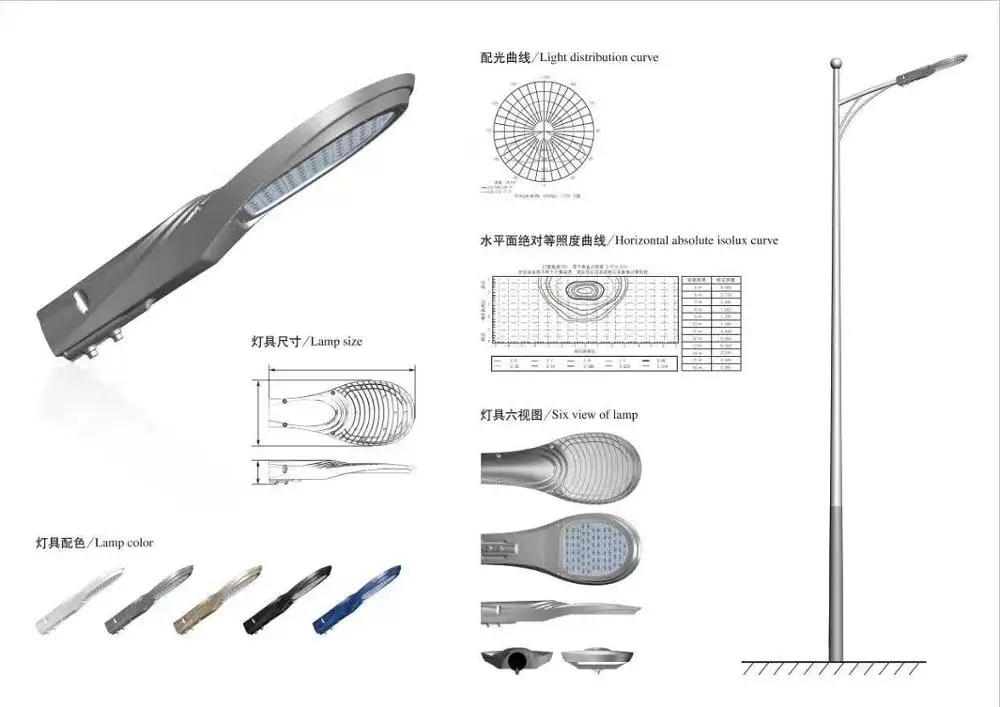

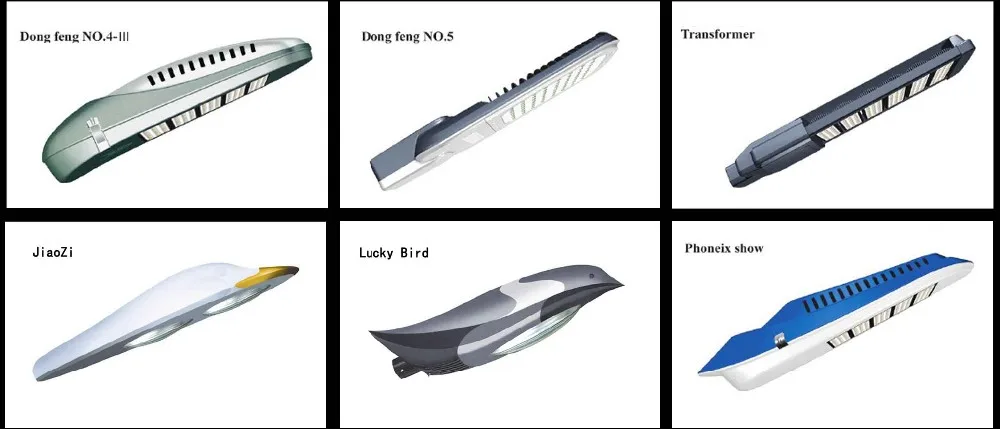

USA BRAND LED and Aluminum Section Bar Light Fixture

brand new model 20-90W LED street light. Features are:

1. 20W, 30W, 40W,50/60/80/90W..... available (with Bridgelux or CREE LED).

2. 20-30W beam angle: lateral 120 degree, vertical 60 degree;

3. 40-90W beam angle: lateral 140 degree + 20 degree adjustable = 160 degree, vertical 60 degree;

4. Interpole distance can be 45-55M;

5. 20W per module by Epistar LED (85lm/W, 3 year warranty),  30W per module by CREE LED;

6. With CREE LED, 85lm/W or 95lm/W, with the best MEANWELL driver, 5 year warranty;

7. Pole socket 0 - 115 degree adjustable, so enable both lateral and vertical installation

8. Back cover can be easily opened, simple maintenance, lower cost.

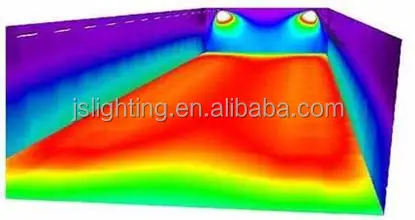

9. Each LED module has specially designed lens, making luminance concentracted in a rectangular area,  get much higher LM than ordinary lens.

10. Heat sink also uniquely designed, <55°C degree, getting longer working life.

11. Built-in constant voltage driver in each LED module, making it works much stable and longer time.

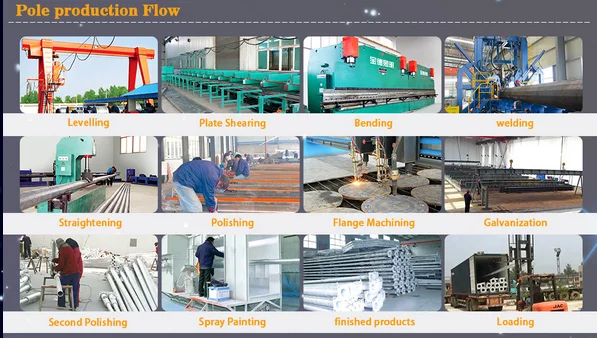

STRONGER POLE with 20 years life time

Larger diameter: our pole is 10% larger in diameters

Thicker wall: we offer 0.25mm thicker pole than that of the market.

For example, we offer 3mm thickness for 6m pole, while other, 2.5-2.75mm

Bigger foundation kits: for example, we offer M18-20*1000mm bolts for 6m light, while others, M16-18*800mm

Thicker zinc galvanization and painting: we offer 100 μm zinc and coating than the standard 80 μm





TWO TIMES rainy day backup waterproof controller

Rainy day backup: 2 times more rainy day backup, savings in battery

Combined LED driver and controller as one, easy to maintain

IP67: ideal for high humidity and dust areas

Energy saving mode: THREE periods of power adjustment available

All metal shell: high strength and fast heat dissipation, giving long life time

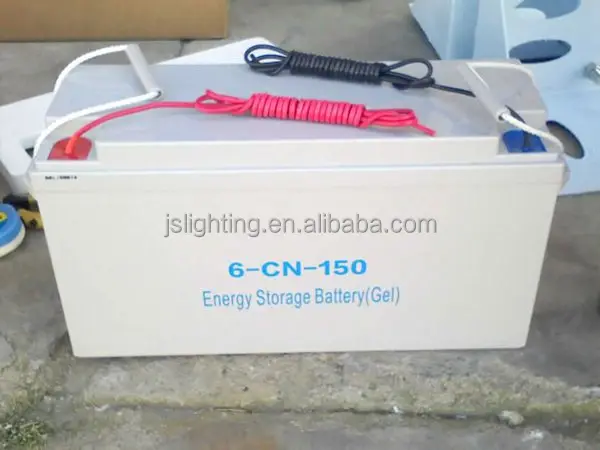

 GEL battery

Gel Battery that dedicated to solar energy. supply energy for   solar led  street light

For the solar energy street lamp that in simple circulatory system.

the advantage is that the small self -discharge rate ,the better deep discharge,

Top charge acceptance, large capacity,strong start in low ,the good shock resistant and Anti-temperature charge Production
Size: 483x170x240mm,Weight :44.5KG
Packing Size :506x193x290mm,Weight :46.4KG

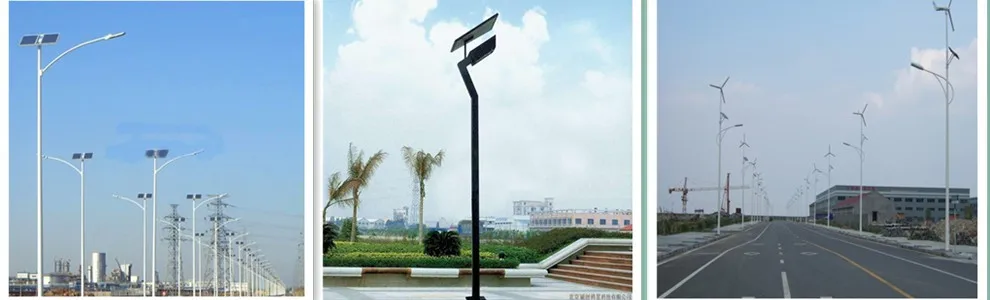

Applications

Solar Street Light Solar Road Light Solar Path Light Solar Parking Lot Light Solar Driving way Light Solar Highway Light Solar Freeway Light Solar Avenue Light Solar Sidewalk Light Solar Remote Area Light Solar Military Bases Light

Solar Security Light Solar Garden Light Solar Park Light Solar Gate Light Solar Grave Light Solar Entrance Light Solar Fence Light Solar Campus Light Solar Boat Dock Light Solar Pedestrian Street Light Solar Jogging and Bike Path Light



Standard Features

- Solar panel: 20 years power generation capacity - LED light: ultra bright LEDs that last up to 50,000 hours - Controller: typical operating life of 10 year, auto ON/OFF operation - Pole: up to 25 years long life time - Battery: long life of up to 5 years



Services



Warranty

BAODE guarantees the purchaser for the period of two (2) years that BAODE’s new lighting systems will be free from defects in materials and workmanship. BAODE will, at its option, repair or replace any BAODE’s system that is defective for a minimum of two (2) years after the date of purchase.



Installation

BAODE offers detailed instructions and videos for installation. Besides, BAODE can provide onsite installation training and technical assistance free of charge in initial period for large projects more than 100 poles because we has developed her experienced technical team.



After Sales

BAODE will offer technical guidance and repair service for the whole life time of her products.

BAODE promises to respond with customer’s questions within 24 working-hours.



Payment terms: 30% in advance and 70% before shipment.

Lead time: 2~3 weeks upon receipt of payment for 50 poles.

Shipping: Generally, solar lights are shipped by sea. Battery and pole are not available to ship by air.

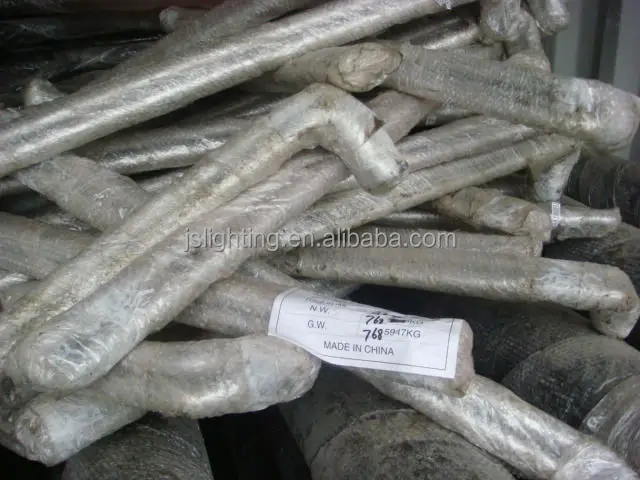

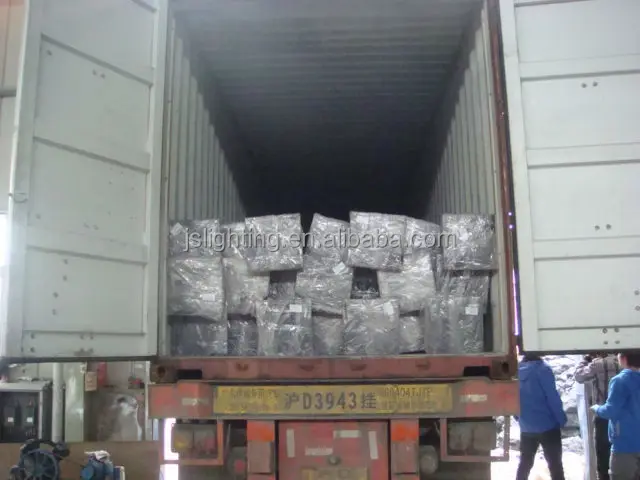

Shipping

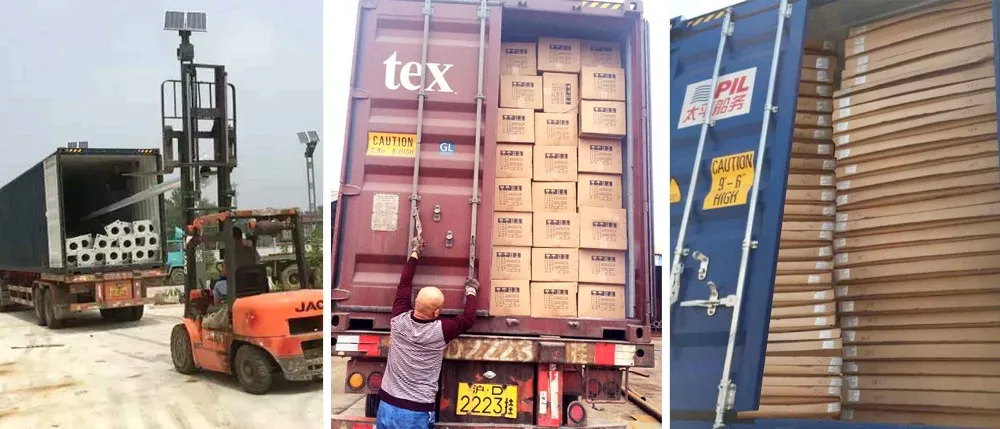

Package: Individual package for each component of solar light. Wooden box for LED lamp and solar panel for LCL goods. 80 poles load a 40 HP container for 8M solar street lights and 60-3.5m solar garden lights in a 20 container.

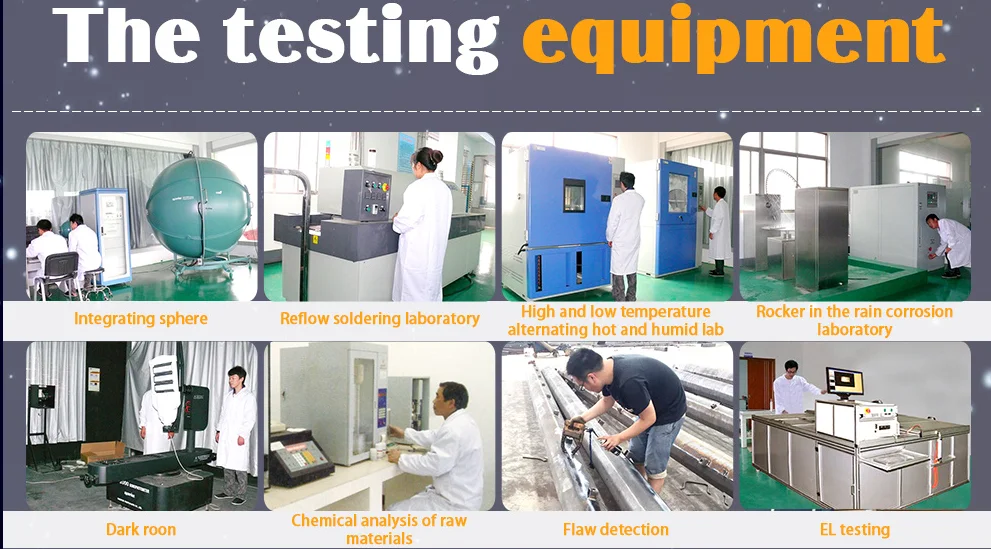

Testing Labortary
