Горизонтальный сверлильный станок для
- Категории: Glass Production Machinery >>>
- Поставщик: Foshan,Shunde,Jugang,Shengong,Glass,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application

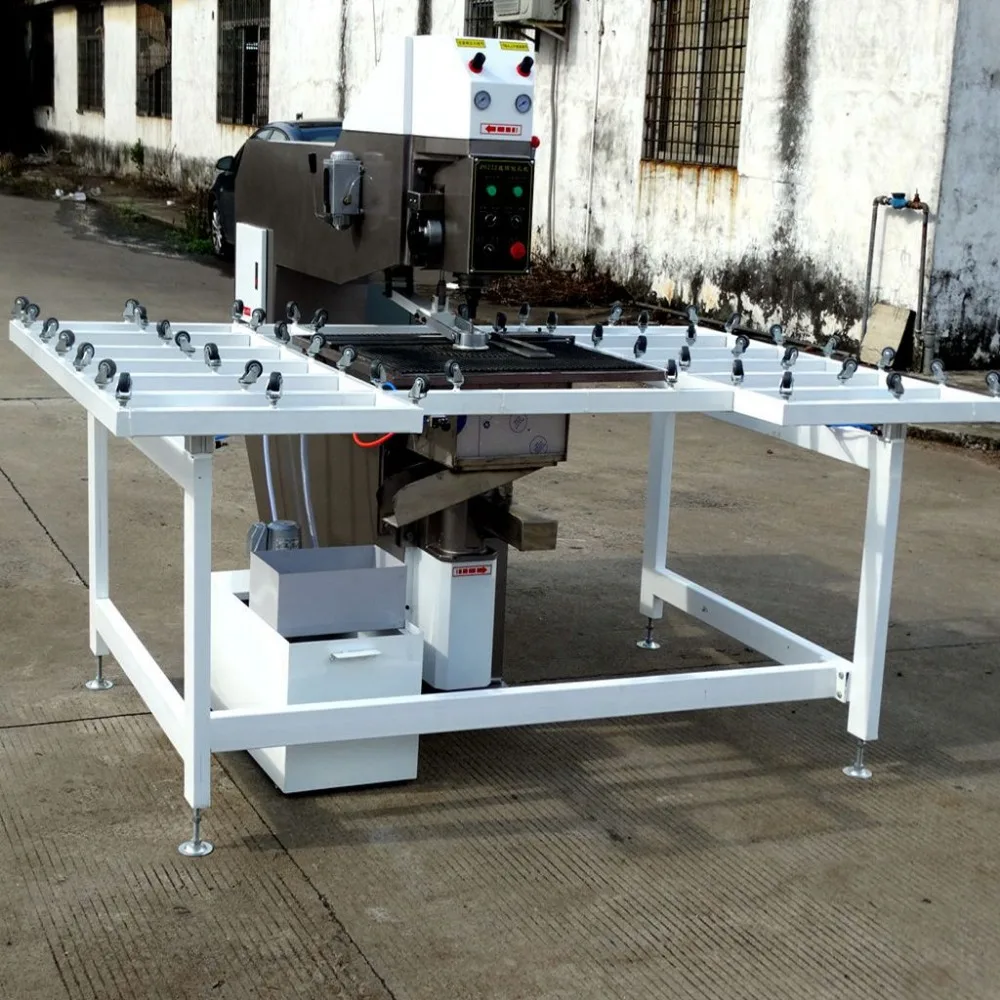

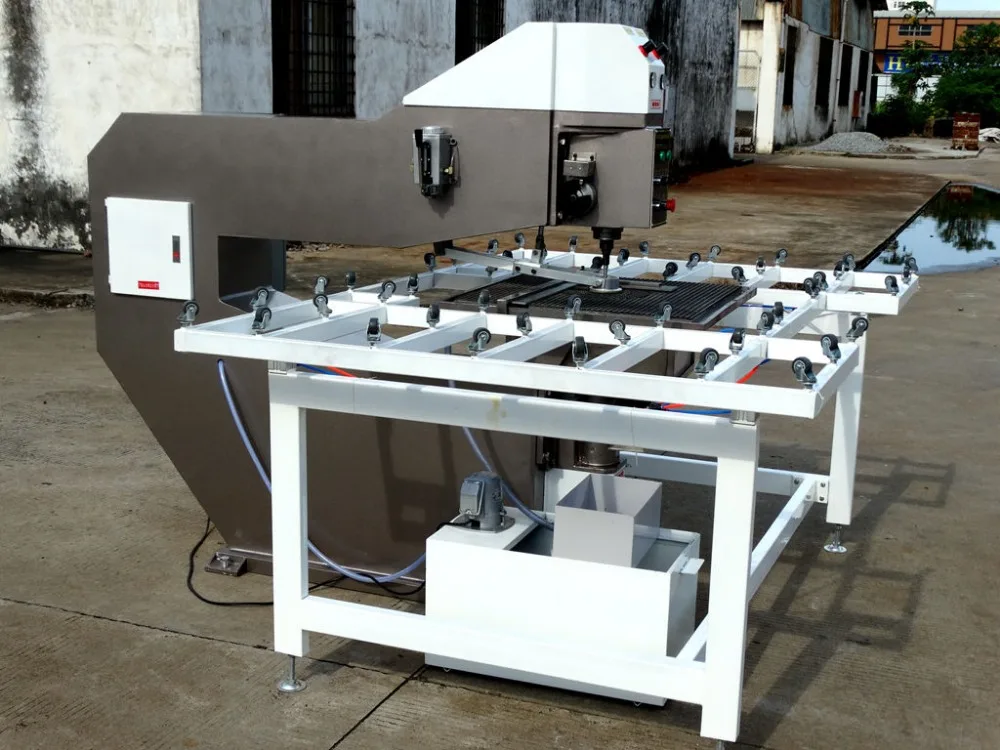

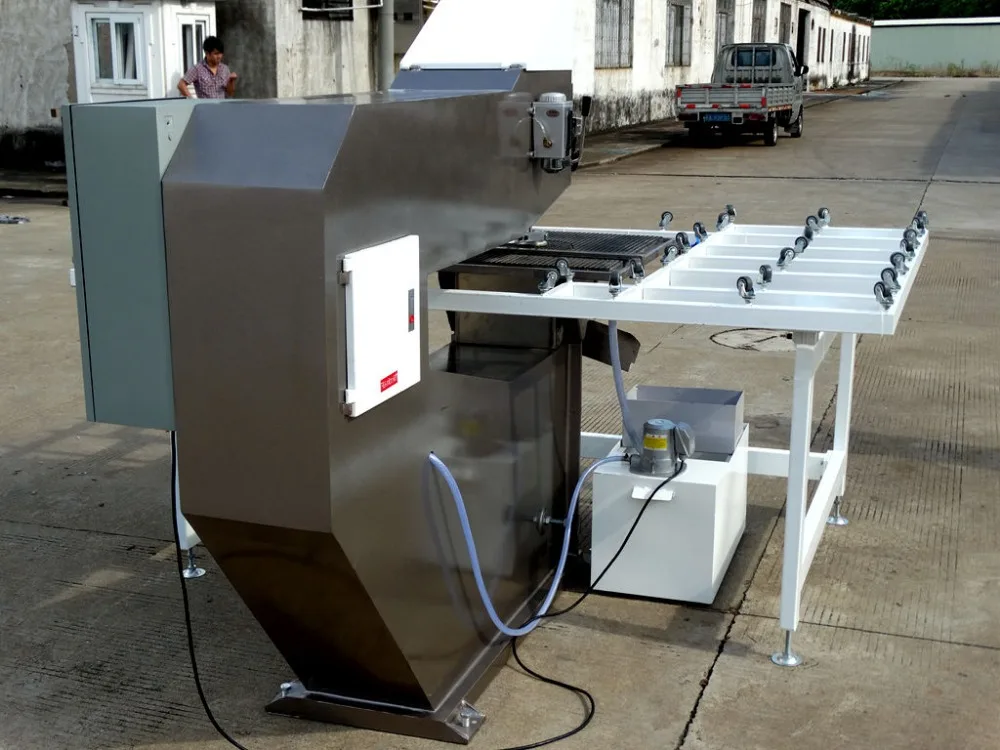

Model JGZK0222 Nesting Glass Drilling Machine adopts pneumatic way to clamp glass,upper and under drills successively drill holes and the under drill can rise automatically,Both of their position and speed are adjustable.Automatic feeding and workbench's pneumatic elevation ensure the feasibility of massive continuous production and processing.
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | ||||||
Parameters | model | JGZK0222 | ||||
Voltage | 380v 50hz | |||||
Power | kw | 2.45kw | ||||
Main performance parameters | Drillina Diameter | φ | φ4-φ220mm | |||
Max.size of processed glass | mm | 2200mm-2700mm | ||||
Glass thickness | mm | 3-20mm | ||||
Configuration | Overall size | mm | 2200*2700*1700mm | |||
Weight | kg | 1200kg | ||||
colour | white | |||||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced China famous brand components in pneumatic parts ,electric parts and operation parts.
3) The wanxiang wheel is specially designed and is very flexible and the wheels are very smooth
4) The characteristics of glass punching machine are: small machine, high machining accuracy, stable machine, fine finished product, fast v processing speed and high production efficiency.
5) The after-sale service is considerate, the customer is god, the service is first.
Certifications
Detailed Images

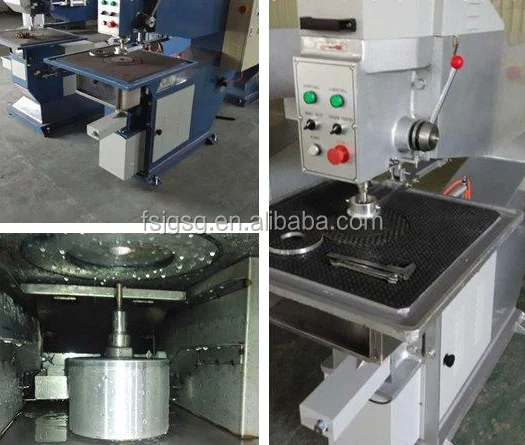

Machine Parts
Name: machine profiles
Brand: China
Original: China
The frame material is thick and strong, and then annealed to make the machine stronger and durable and not easy to deform.
Main Features
Name: workbench
Brand: China
Original: China
The work table is stable and firm, easy to operate, and can be processed with different thickness and different sizes of glass.
Machine Parts
Name: electrical machinery
Brand:China
Original: China
The motor is a well-known motor brand in China. The performance is stable and not hot, and the drilling speed is high and stable without the occurrence of broken glass If the operation is correct.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Customers are required to provide overseas services and negotiate.
Packing & Delivery
Packaging | ||
Size | 2200 (L) * 2700(W) * 1700(D)mm | |
Weight | 1200kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2200 (L) * 2700 (W) * 1700 (D)mm | |
Weight | 1200kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
