Product Description

Introduction

This kind of pressure transmitter can be directly joined with computer joint clip, control instrument ,aptitude instrument or PLC etc. conveniently. The series' product is applied extensively in the professions, such as the industry process control, petroleum, chemical engineering and metallurgy etc. Carry the distance delivers and can adopt electric current exportation method.

Pressure Type	gauge pressure absolute pressure sealed pressure
Pressure range	1-600Bar (optional)
Power supply	24VDC 12VDC 12-36VDC
Signal output	4-20mA 0-20mA 1-5V 0-5V
Signal line specification	2wire 2wire 3wire 3wire
Accuracy	±0.3%FS ±0.5%FS
Working Temperature	-20~85℃
Storage Temperature	-40~125℃
Overload pressure	150%FS
Protection Classification	IP65
Body materials	SS304L
Process connection	G1/4, G1/2, 1/2NPT, 1/4NPT, M121.5, M201.5 etc. (optional)
Measure media	Gas, water, oil or other media can be compated with stainless

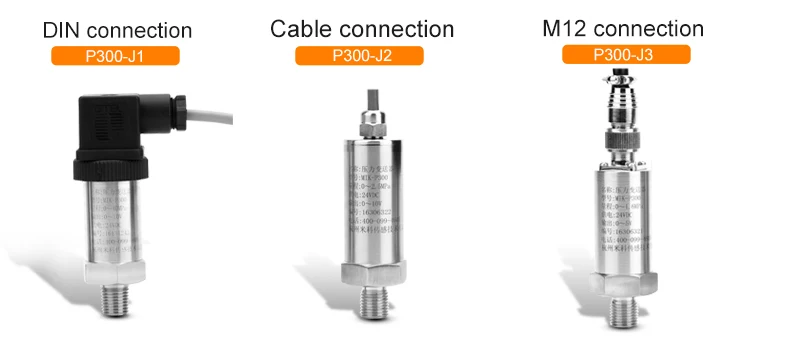

Electrical connection	Hirschmann connector, DIN conncetor, M12
