Мини 3a 160 в переменного тока 2p вкл. выкл. Переключатель с проводом
- Категории: Rocker Switches >>>
- Поставщик: Hangzhou,Lingyue,Science,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

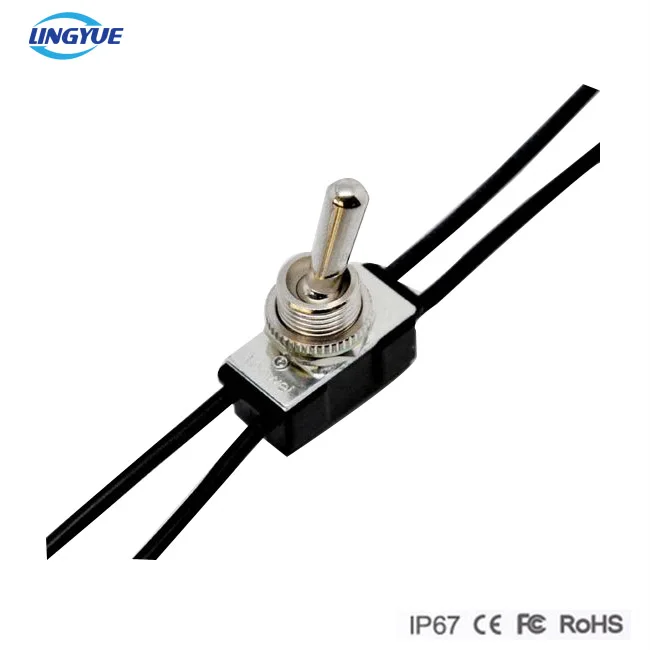

mini 3a 125vac 2p ON OFF toggle switch with 160mm wire
Parameters
| Rating Value | 3A 250V; 6A 125V |
| Mechanical life | more than 50,000 times, 50,000operations |
| Electrical life | more than20,000 |
| Operating force | ≤24N |
| Dielectric strength | 1,000v rms(min) |
| Insulation resistance | 100mΩ |
| Base material | bakelite |
| Ambient temperature | -25°c to +80 °c |
| Humidity | below85%Rh |
| Withstand Voltage | ≥1500v 50/60hz last for 1min |
| Vibration | 10-50hz 1.5mm double-amplitude |
| Mounting Method | Bushing mount |
| Poles | SPST, DPDT |
| Dimensions | Diameter 12mm+/-0.2 |
| length of wire | 160mm |
| head material | brass , plastic |

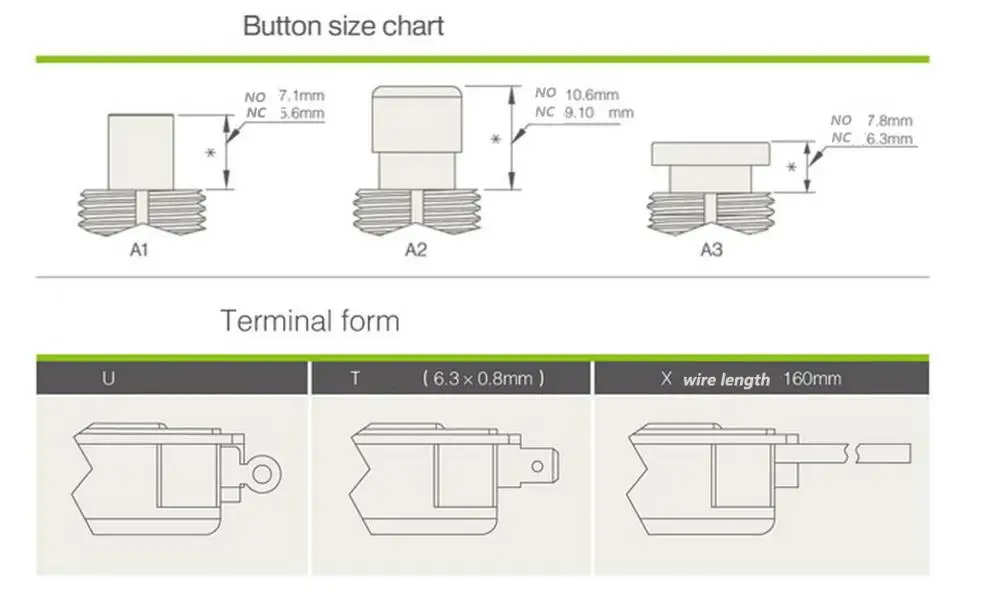

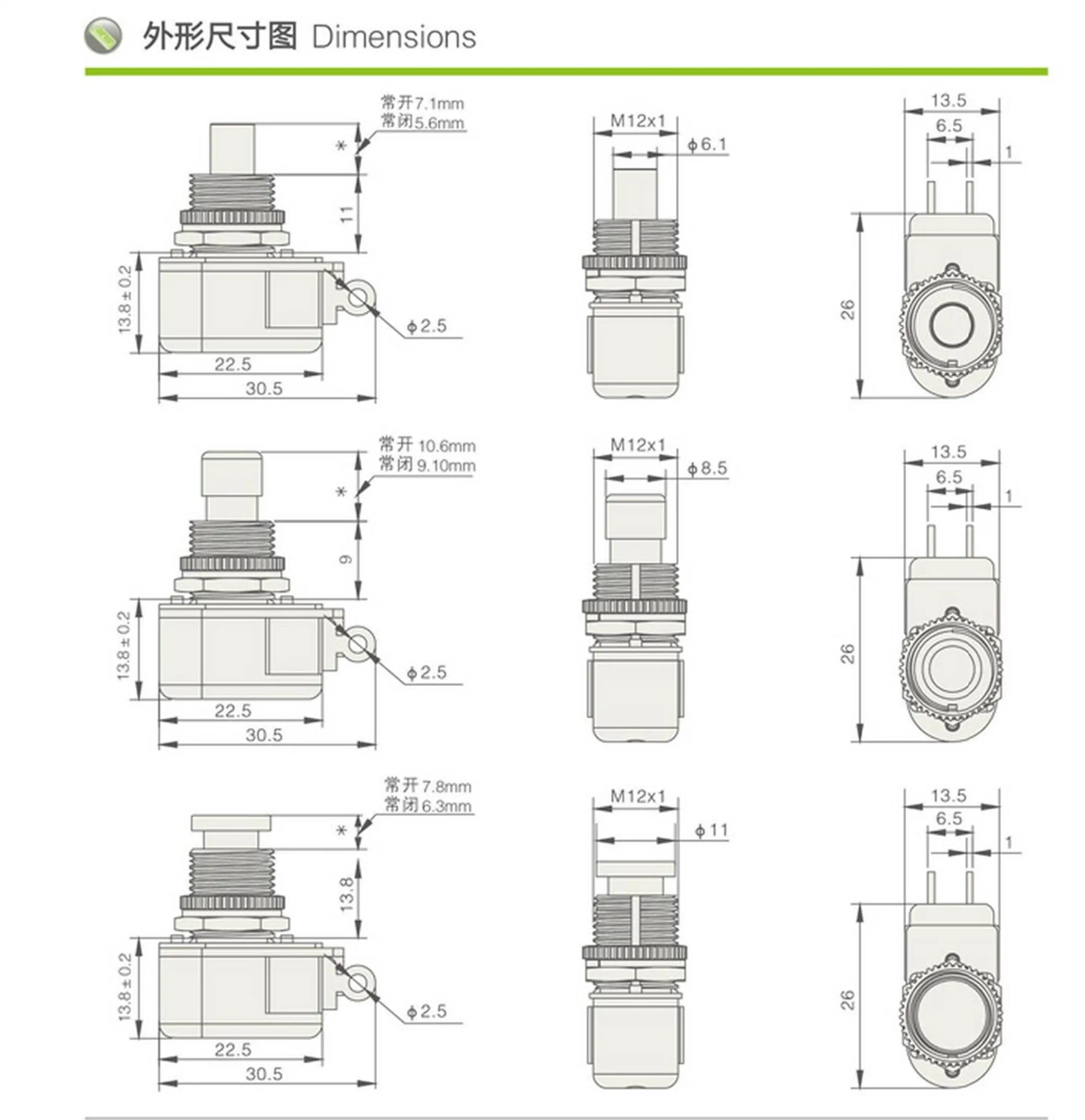

Size and drawing

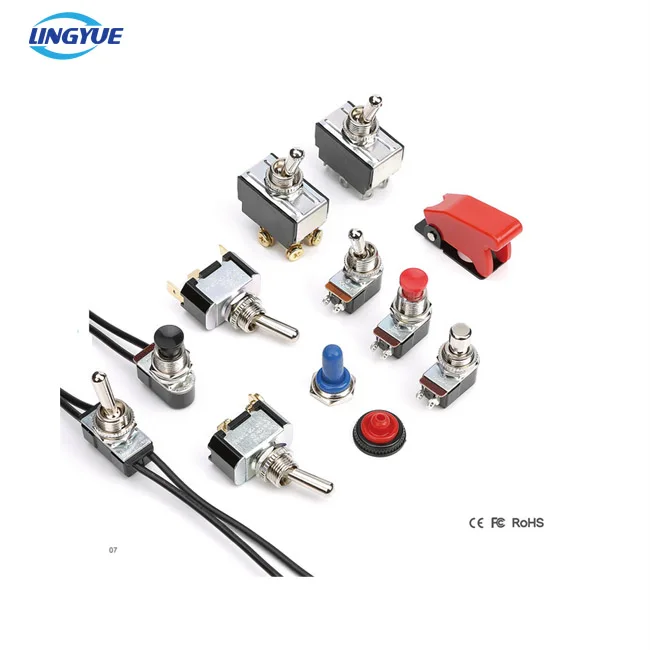

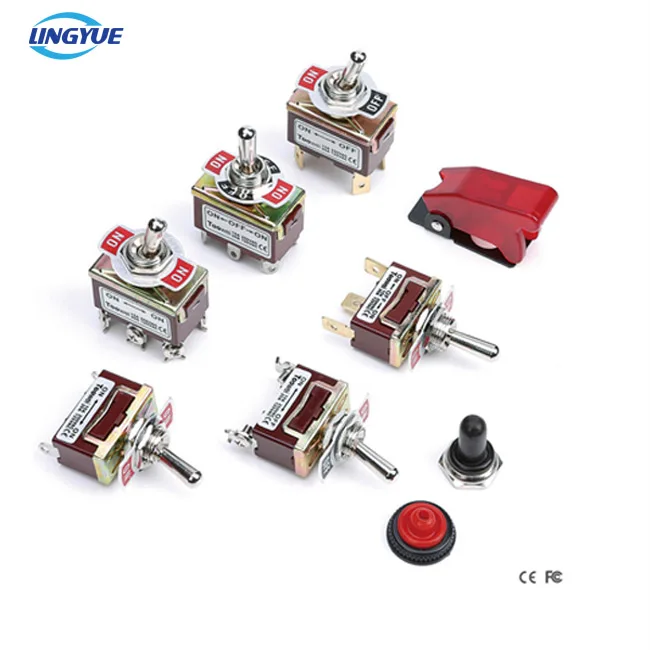

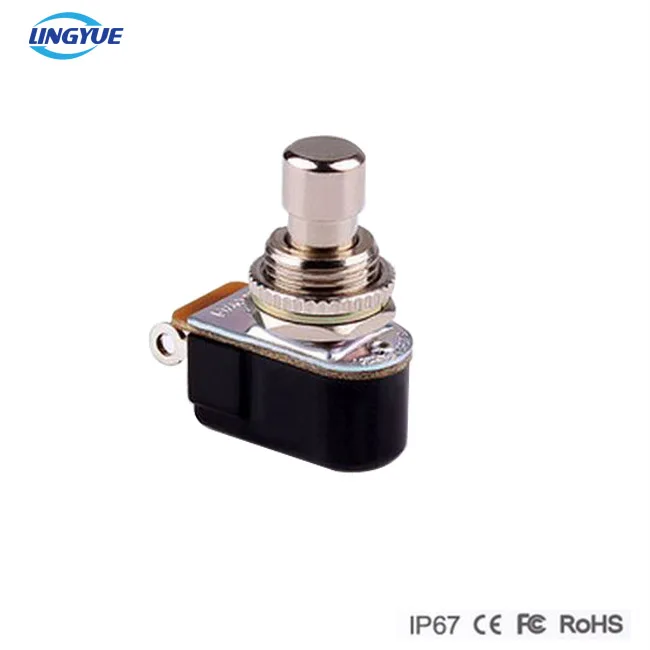

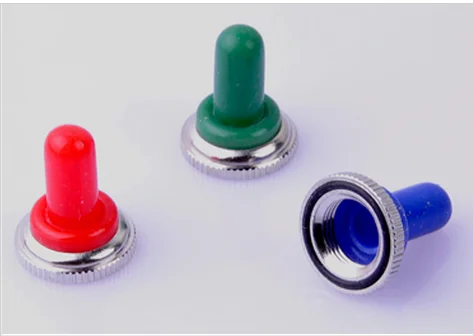

Similar product
Packaging & Shipping
Carton packing
20pcs/box , 25 boxes/ CTN
Our Services
We support OEM service, you can make goods according to your samples , color, material and so on for the custom.
Free Samples
If you need the sample we will provide free of charge,make sure that our product is you need.
Online Service
It is a twenty-four-hour service that allows you to send information at any time of the day or night.we will reply within 12 hours.
Design Team
we have design team to make customized products , you can send your samples or drawing to us and our team will make samples for you . also we can design products according to your description.
Easy Payments
We accept all kinds of payment terms like L/C T/T ,we protect all buyers .ensure that no risk to do business with us .
Company Information
FAQ
1. Q: How can I get a sample to check your quality?
A: After price confirmation, We can offer some samples free for you to test by DHL,TLT,UPS and son on, but the courier cost is on customer.
2.Q:How long can I get samples?
A: After we confirm the price and type and you pay for the samples charges, our factory need 3-5 days to make the samples.
3. Q: How long for mass producing?
A:It depend on the order quantity. If order quantity is less than 1000pcs, delivery would be within 3 working days.
4. Q: Can you OEM?
A: we welcom OEM
