RGN + 50 Air 2 Finger параллельный пневматический

Описание и отзывы

Характеристики

PRODUCT DESCRIPTION

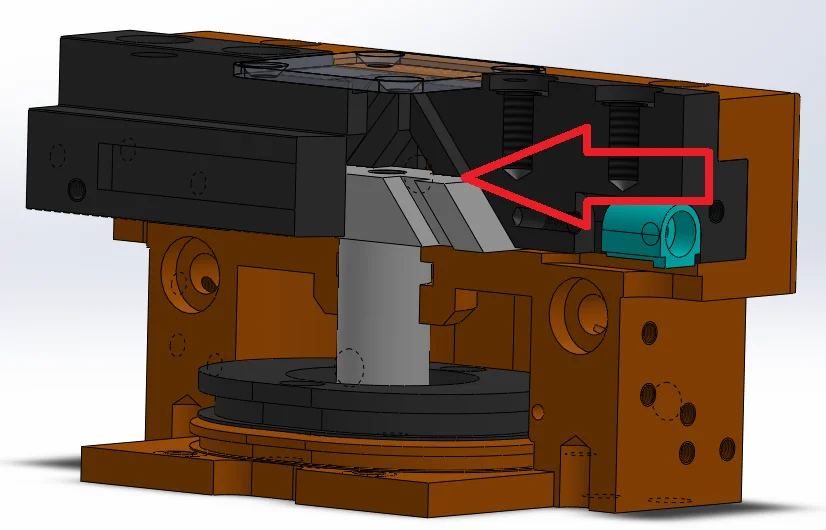

• How Gripper Works: Wedge - hook kinematics


• Gripper Material: Anodized aluminum alloy


• Jaw Material: Steel


• Drive: Pneumatic-filtration of compressed air (10mm); dry, lubricated or non-lubricated pressure medium (Compressed air qualified by DIN ISO 8573-1:644).


• Gripping force safety device: Internal mechanical gripping safety device or mechanical external SDV pressure safety valve.





COMPARISON CHART



Gripper Brand Name	LTIC	Other brand
Gripper Model Number	RGN + 50-1	PZN + 50-1
Gripper Stroke per Jaw	4mm	4mm
Gripper Gripping Force	170[N]	140[N]
Gripper Workpiece Weight	1.7KG	1.4KG







TECHNICAL DATA



Model	Unit	RGN + 50-1
Stroke per Jaw	mm	4
Closing Force	N	170
Opening Force	N	185
Closing / Opening Time	s	0.02 / 0.02
Repeatability	+/- mm	0.01
Min. Pressure	bar	3
Max. Pressure	bar	8
Min. / Max. Temperature	ºC	5 - 80
Compressed Air Consumption	cm3	4.1
Weight	Kg	0.14
Recom. Work Piece Weight	Kg	0.85

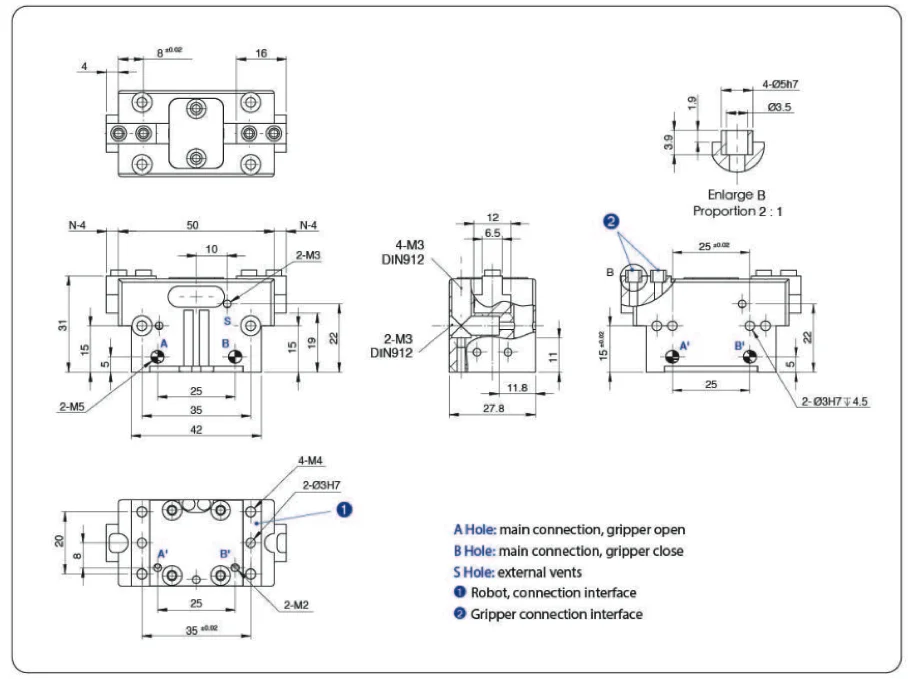

DIMENSION

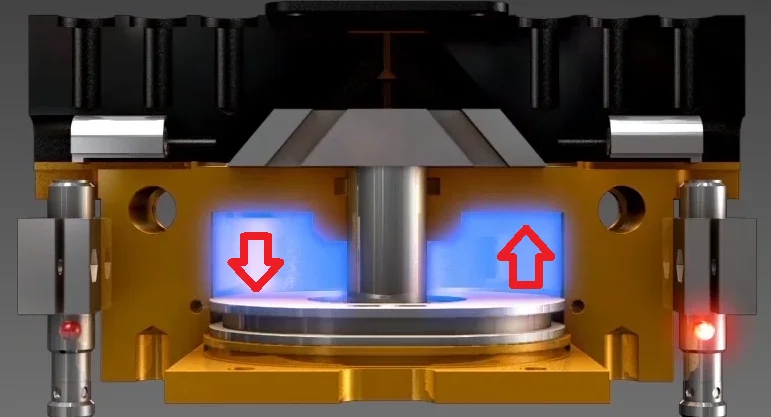

MOVEMENT DESCRIPTION

Compressed air will push and press the oval piston.

With tilting surface, the wedge hook will transfer the movement to side movement, and initiate the action of the  two base jaws simultaneously.

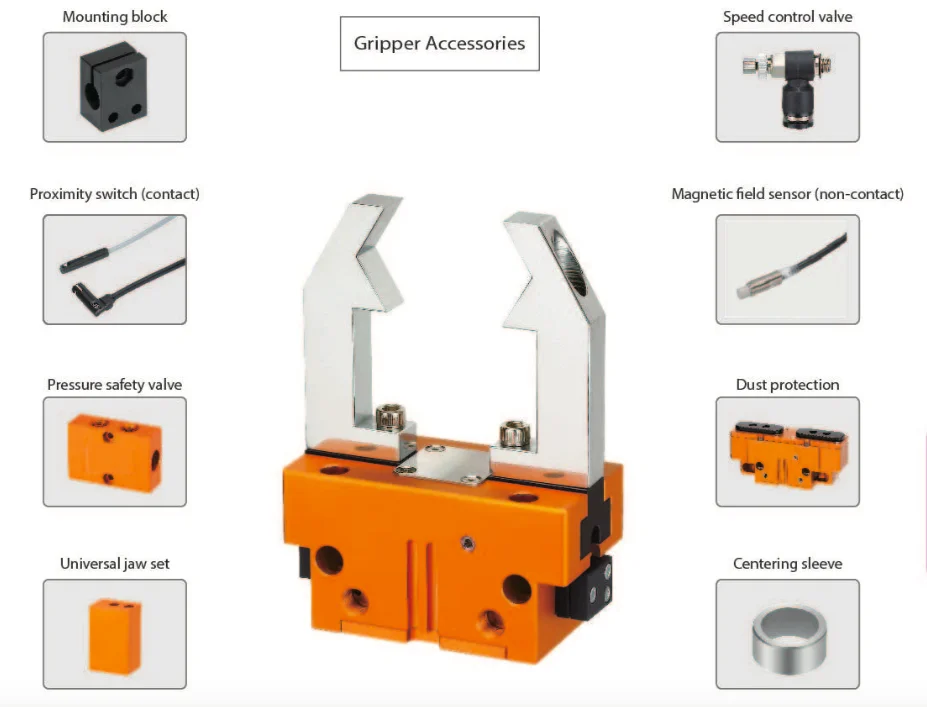

GRIPPER ACCESSORIES

Valve, sensor, plain jaws, Dust protection and sleeve.









FAQ

Q1: Warranty?

A1:  100% quality guarrantted. All of our products has one-year warranty. Every products are fully assembled and carefully tested before packing and shipping.



Q2: Minimum order quantity?

A2: One.



Q3: Offer blank jaw (finger)?

A3:  Yes, we offer two type of blank jaw. One is aluminium and the other is steel. We can also make fingers for you. Please let us know your finger drawing. Or let us know your work piece information, we will design and make it for you.



Q4: Work with any kind of robot arm?

A4: Yes, it just add a flange between gripper and robot arm. We can design and make flange for you.



Q5: Does grippers have dust protection?

A5: Yes, we can offer protection module for two finger gripper and it will reach IP 60.



Q6: Is there finger quick change device?

A6: Yes, we offer finger quick change system.



Q7:  Quality policy?

A7:  We test it before shipment. The life cycles is 10,000,000 times for standard situation.



Q8: Delivery?

A8: We will ship your items by sea, air, or any express (suck as DHL, UPS, FedEx,TNT, EMS, etc.)





FULL TYPES

RGN+50   2 Finger Gripper

RGN+66    2 Finger Gripper

RGN+80    2 Finger Gripper

RGN+100  2 Finger Gripper

RGN+125  2 Finger Gripper

RGN+160  2 Finger Gripper



RZN+50    3 Finger Gripper

RZN+66    3 Finger Gripper

RZN+80    3 Finger Gripper

RZN+100  3 Finger Gripper

RZN+125  3 Finger Gripper

RZN+160  3 Finger Gripper

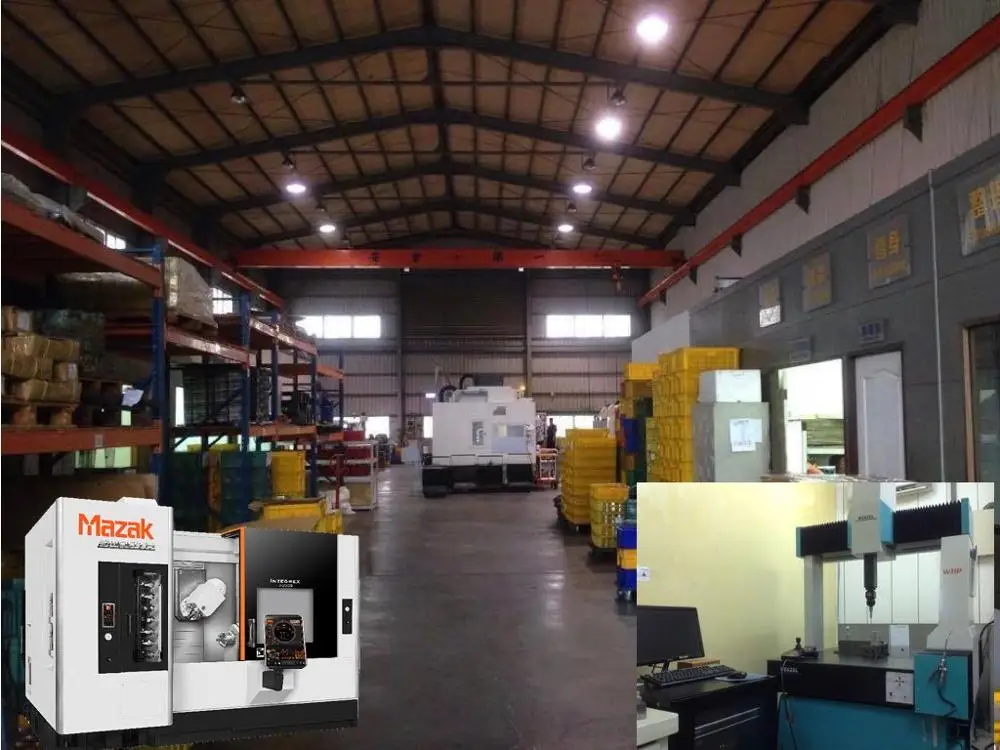

ABOUT LTIC



Our Gripper Technology

Gathering years of experience and industry knowledge, our pneumatic gripper, electric gripper and automated system are much more outstanding among the top providers.







Standard Gripper System

We have more than 200 kinds of standard gripper systems, positioning systems and robotic systems. We have full range of cutting-edge products and are able to deliver the products to the customers on time.



Non-Standard Gripper System

We have more than 200 kinds of standard gripper systems, positioning systems and robotic systems. We have full range of cutting-edge products and are able to deliver the products to the customers on time.



Customized Gripper System

Tailored system is one our strengths. We can develop gripper systems, robotic application systems and vacuum handling system according to customer’s onsite need.
