Дизельный двигатель 110hp 4bt для использования

Описание и отзывы

Характеристики

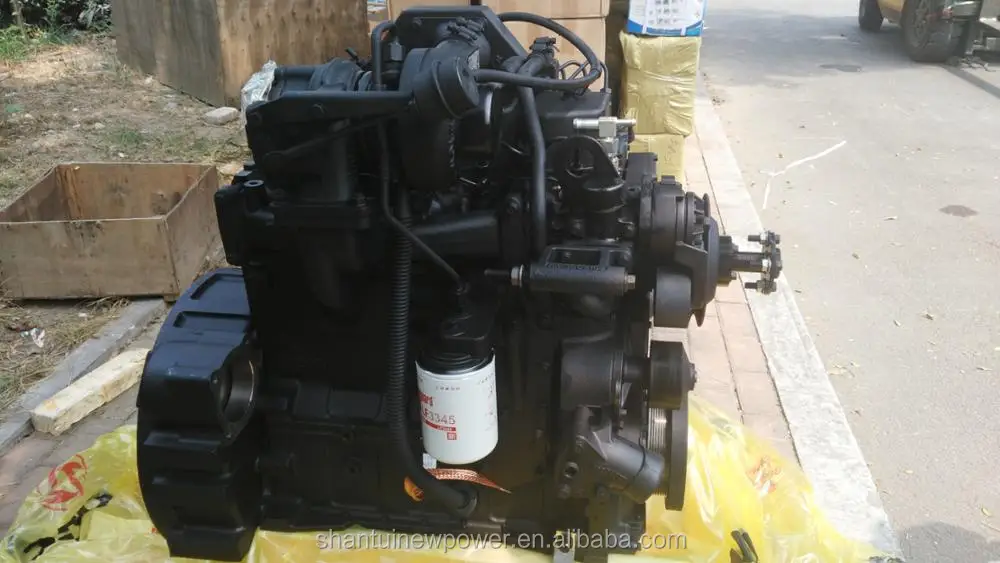

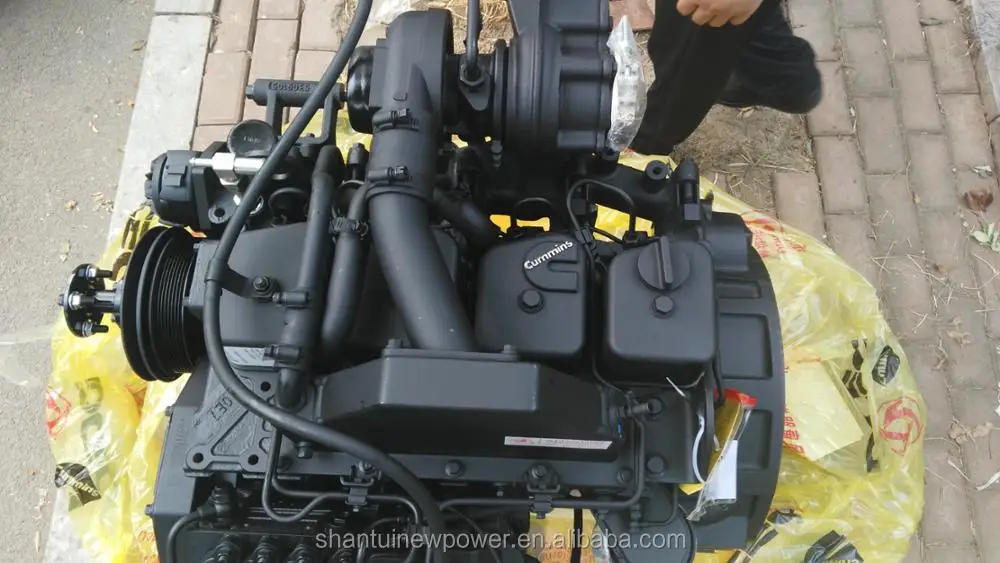

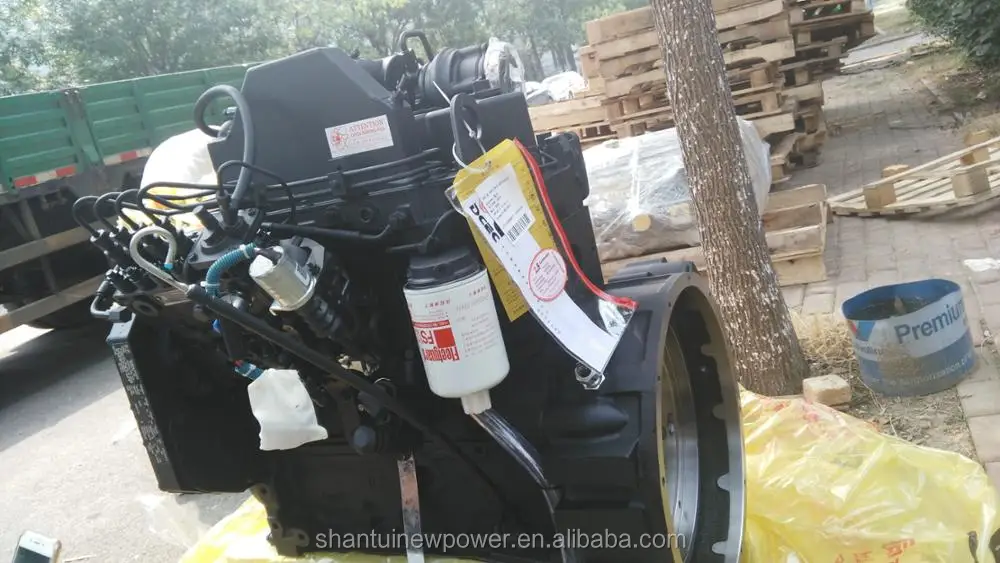

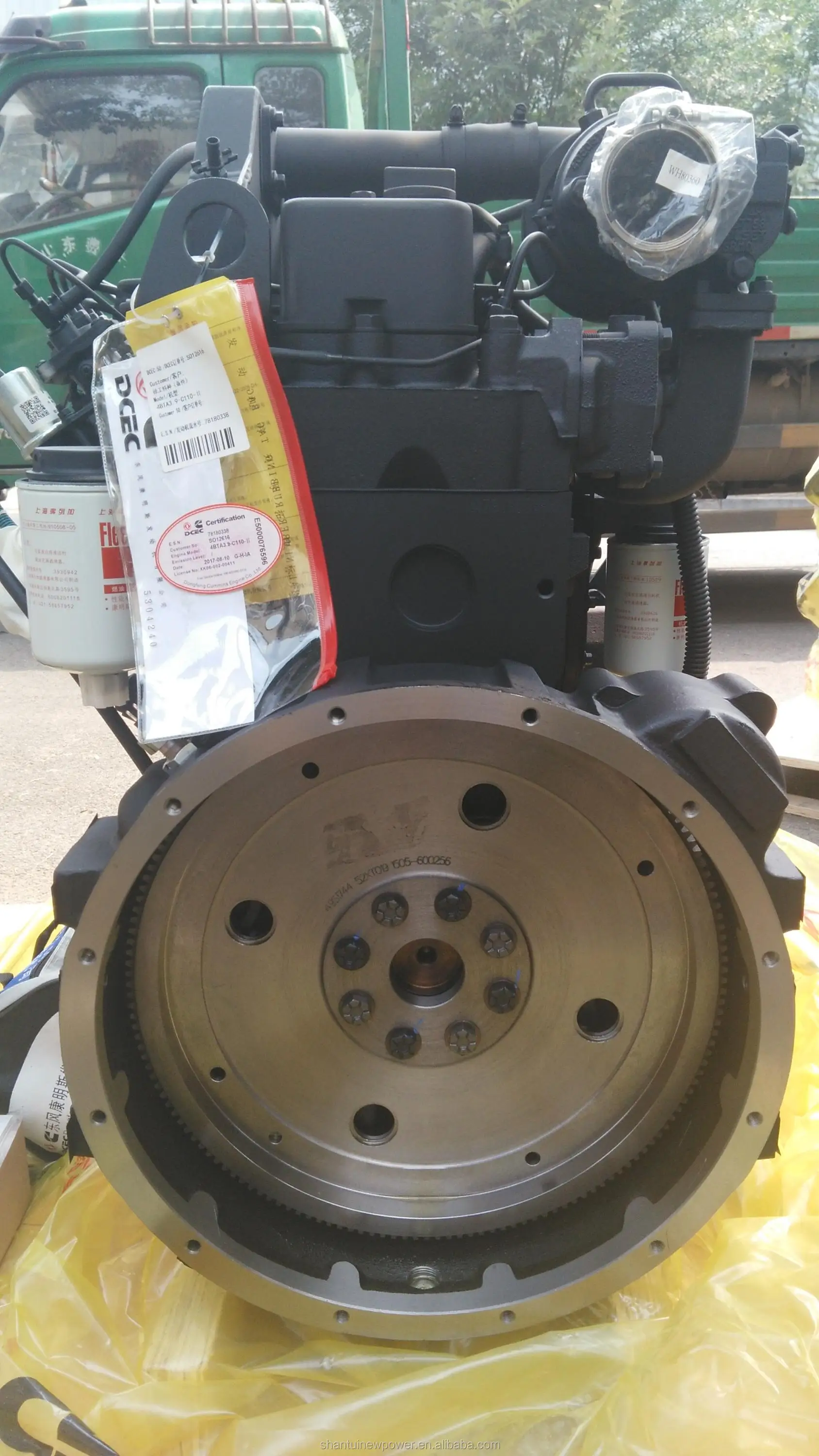

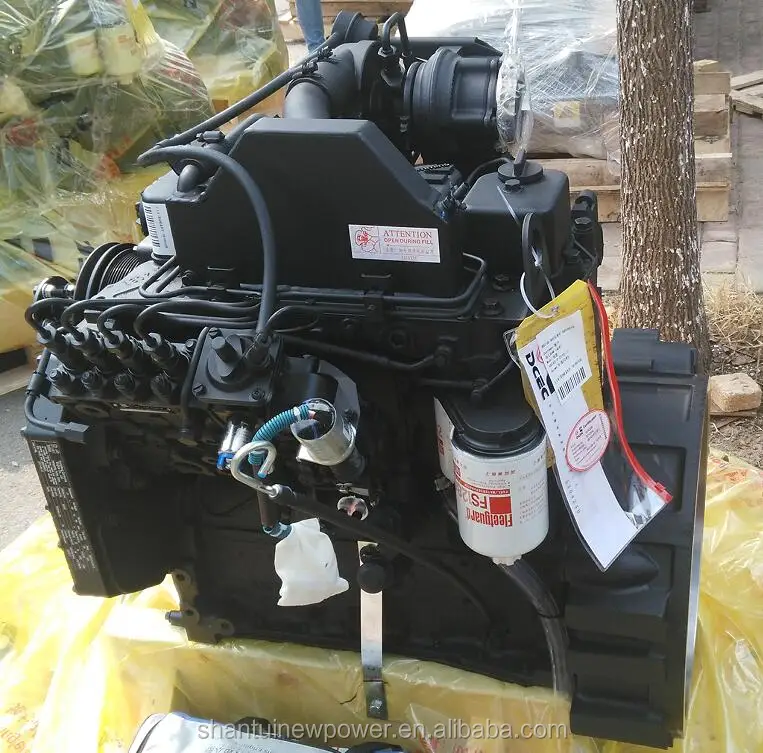

Diesel engine  4bt for machine use







Engine model	4BTA3.9-C110
Engine type	4 cylinders in line
Displacement	3.9L
Rated Power (KW@RPM)	82kW/110HP@2200rpm
Peak Torque(Nm@RPM)	460N.m @1400rpm
Emission Standard	Euro I
diesel engine 4BTA3.9-C110Technique Specification
Bore*stroke	102 mm* 120mm
Intake method	Turbochager&Intercooled
Fuel systeme	Wuxi Weifu A Pump
Cooling method	Fluid Cooling 9.0L
Governor Type	Mechanical Control
Compression Ratio	17.3: 1
Fuel Consumption:	249 g/kW.h
Starting System	Electrical Starting Motor 24V/750A,12V/500A
Lowest Starting Temp .(with/without auxiliary system)	-12℃/-25℃
diesel engine4BTA3.9-C110 Trade Information
Warranty time	1year or 1500h
Engine Size(L*W*H):	1000mm*870mm*1200mm
Packing size	1100mm*910mm*1390mm
Weight net	390 Kg
Weight gross	500Kg
