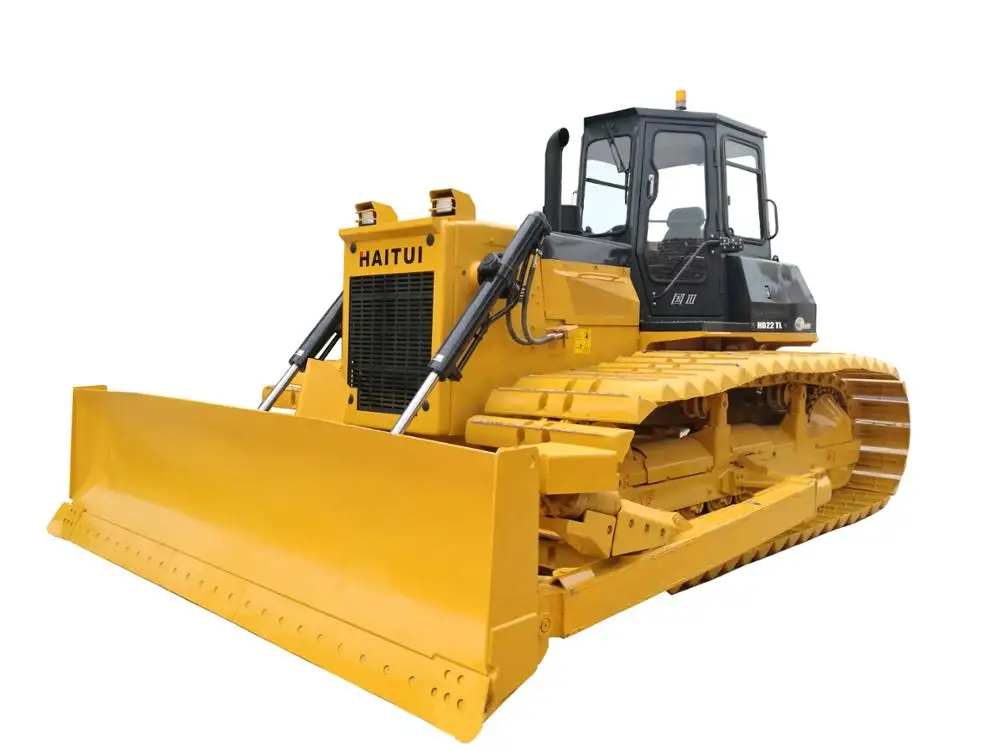

Best sale hydraulic 220HP landfills crawler bulldozer
The business scopes of Haitui Industry Machinery CO.,Ltd. are producing and exporting mechanical and hydraulic bulldozers with various features of high-efficiency,energy-saving and multi-function.The products types are more than ten models from 160HP to 320HP.Besides the standard types,we offer a broad range of types for different work conditions as well,such as specialized dozers for swamps,landfills,forests and power plants(coal).
Product Parameter
| Main Parameters of HD16/22/32 | |||
| Model | HD16 | HD22 | HD32 |
| Engine model | Weichai WP10G178E355 | Cummins NT855-C280S10 | Cummins NTA855-C360S10 |
| Rated power(kw/rpm) | 131/1850 kw/rpm | 175/1800 | 235/2000 |
| Displacement(L) | 9.726 | 14.01 | 14.01 |
| Max.torque(N.m/rpm) | 830/1000-1200 | 1030/1250 | 1440/1400 |
| Operating weight(Kg) | 17000 | 23500 | 37200 |
| Dimension(no ripper)(mm) | 5140*3388*3032 | 5492*3726*3742 | 6885*4128*3645 |
| Min ground clearance(mm) | 405 | 405 | 500 |
| Ground pressure(MPa) | 0.067 | 0.072-0.077 | 0.105/0.09/0.078 |
| Track shoe width(mm) | 510 | 560/610/660 | 560/660/760 |
| Track gauge(mm) | 1880 | 2000 | 2140 |
| Dozing capacity( m3) | 4.55 | 6.4 | 10 |
| Blade width(mm) | 3390 | 3725 | 4130 |
| Blade height(mm) | 1150 | 1315 | 1590 |
| Maxdrop below ground(mm) | 540 | 540 | 560 |
| Pitch(mm) | 203.2 | 216 | 228 |
| Quantity of track link | 37 | 38 | 41 |
| Quantity of Carrier rollers | 4 | 4 | 4 |
| Quantity of Track rollers | 12 | 12 | 14 |
| Max pressure(MPa) | 14 | 14 | 14 |
| Discharge(L/min) | 213 | 262 | 355 |
| Max tractor force(KN) | 146 | 202 | 280 |
| Grade ability(°) | 30 | 30 | 30 |
| Forward(km/h) | 3.29/5.82/9.63 | 3.6/6.5/11.2 | 3.6/6.6/11.5 |
| Reverse(km/h) | 4.28/7.59/12.53 | 4.3/7.7/13.2 | 4.4/7.8/13.5 |
Product Description
HD22 hydraulic transmission series bulldozers meet the European Ⅲ emission requirements. It is an indispensable machinery and equipment for construction and water conservancy construction such as national defense engineering, mine construction, urban and rural roads, etc. It is suitable for the operation of road, railway, mine, airport and other ground transportation, excavation, backfill earthwork and other bulk materials.

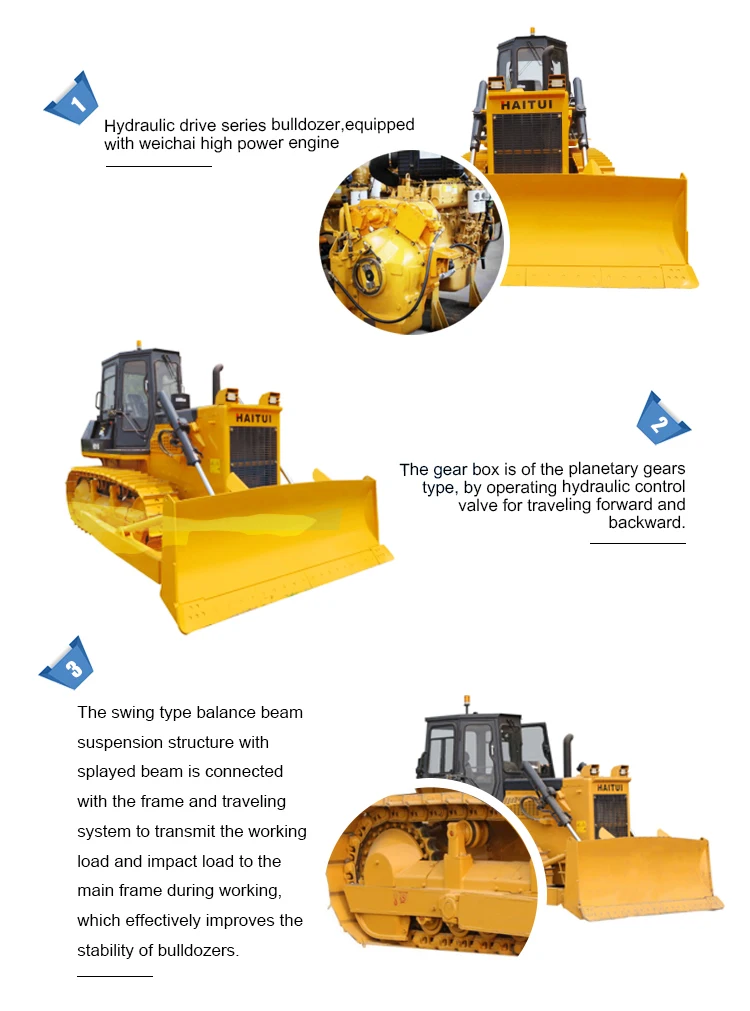

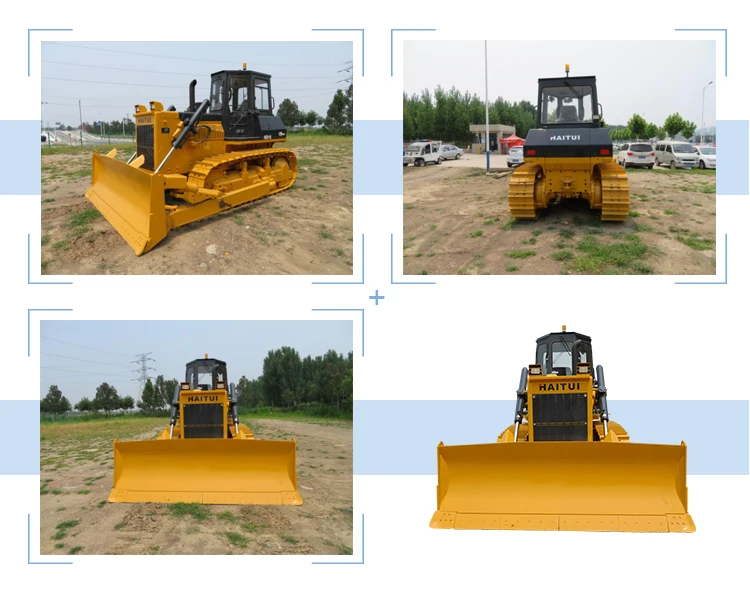

Product Overviews

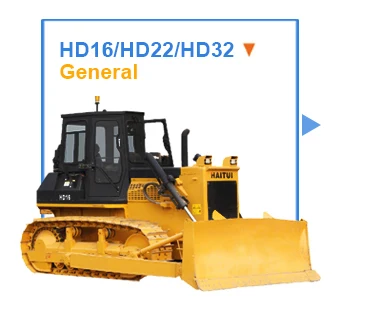

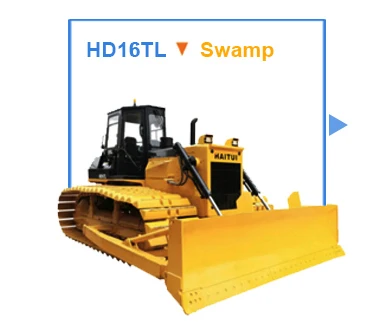

Model Introduction
Packaging & Shipping
FAQ
1. Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya, etc.
2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge, transmissions, and many parts designed and produced by ourselves, always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce production costs to ensure that our price is competitive.
3)Service Team: First, our sales managers are working 24 hours one day, ready to answer your questions at any time. Second, professional maintenance team with senior technicians, ready to provide support services to users and dealers. Most problems can be solved within 24 hours.
4)Fast Delivery: Generally, we can delivery within 10 working days in factory after receiving pre-payment from customers.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without “soft clauses” can be accepted.
4.What logistics ways we can work for delivery?
1) For most Europe, South America and Africa etc. countries we can go by container or Roro through ocean freight.
2) For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
3) For light spare parts in urgent requirement, we can send it by international courier service, such as DHL, TNT, EMS or other air transportation.
5. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable for at leather three month.We’ll adjust our price based on the following two changes::
1)The rate of USD
2)The price of material
Any other questions, please do not hesitate to contact us:
Ethan Zhang
Email: Ethan(at)haituichina.com
Tel: 0086-0537 3206 998
Shandong Haitui Industry machinery Co.,Ltd
Wanli Fude Plaza,Jining City,Shandong,China.
