metalworking machine tools





lathe Machine SP2123

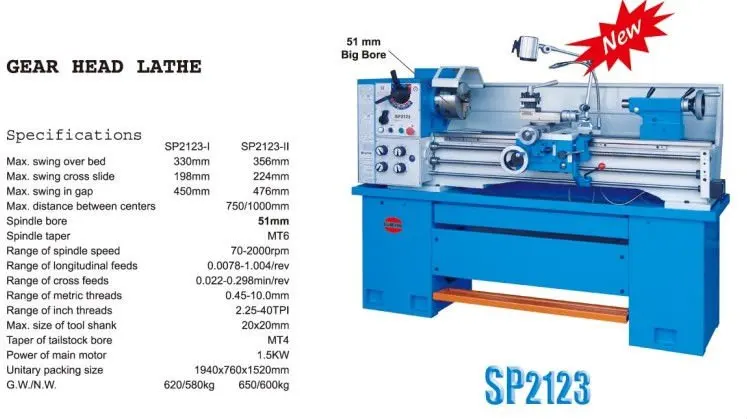

Specification: SP2123

1) Swing over bed: 330/356mm

2) Swing over crossslide: 198/224mm

3) Swing in gap: 450/476mm

4) Distance between center: 750/1000mm

5) Spindle bore: 51mm

6) SPindle taper: MT6

7) Range of spindle speed: 70-2000 rpm

8) Longitudinal feeds range: 0.0078--1.004mm/rev

9) Cross feeds range: 0.022-0.298mm

10) Metric threads range: 0.45-10.0mm

11) Inch threads range 2.25-40TPI

12) Max. size of tool shank: 20 X 20mm

13) Taper of tailstock bore: MT4

14) Power of main motor: 1.5KW

15) Packing size(LxWxH): 1940x760x1520mm

16) N.W.: 580/600kg

17) G.W.: 620/650kg
