Wholesale Threading Machine Supplier

Product Description








Feature



Reliable and proven for constand professional use for up to 300C Pipe Threader. Ideal for stationary threading in workshop, on building sites, for repair and service.



Universal applicable, can also work on workbench.



Can be interchanged with RIDGID 300C Compact threading machine.

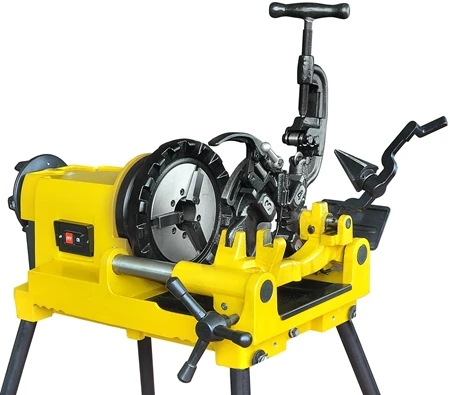

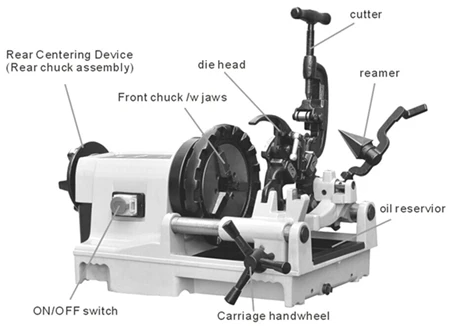

              HONGLI SQ50E Pipe Threader/Pipe Threading Machine 1/4" to 2"

HONGLI SQ50E Pipe Threader/Pipe Threading Machine 1/4" to 2"

Compact and durable design with heavy-duty performance. Easy and fast transport and set-up.



With powerful universal motor, net weight only 65kg.

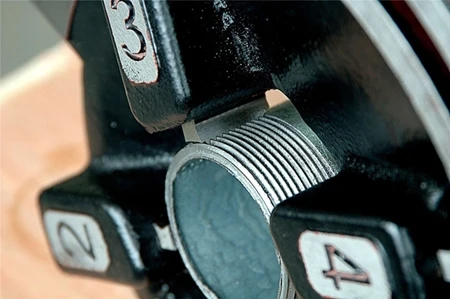

All size of threads get processed only in one turn.



High-performance die head, the same with RIDGID type, can insert RIDGID's 1/8", 1/4"-3/8", 1/2"-3/4", 1"-2" universal dies.



High precision, to ensure the threads accuracy.



Use ductile iron as the material, to make it strong and durable. Hard to damage.

 HONGLI SQ50E Pipe Threader/Pipe Threading Machine 1/4" to 2"

HONGLI SQ50E Pipe Threader/Pipe Threading Machine 1/4" to 2"

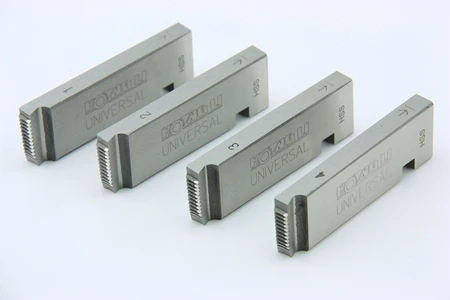

Equipping RIDGID type High-Speed Steel (HSS) threading dies for standard, and use full milling technology to process dies teeth, sharp and durable.



Around 1200 times using life for galvanized pipe tested.



Can deal with galvanized pipe, seemless steel pipe, stainless steel pipe, black iron pipe.





Specification



Motor1500W, 115/220V universal 50~60Hz
Spindle Speed38 RPM (52 RPM available)
Body CastingAluminum
ChuckHammer-type with replaceable, rocker-action jaw inserts
Oiliing SystemThrough-the-head, with integral oil reservoir, Self-priming, constant-flow, gerotor pump.
CutterRoll-type cutoff, self-centering, full-floating. (RIDGID 360)
Reamer1/8"-2", five flute cone, right hand only. (RIDGID 344)
Die HeadQuick-open or automatic typefor threading. (RIDGID 811A / 815A)
DiesHigh-speed steel, 1/2"-3/4" and 1"-2" for standard. (1/4"-3/8" for optional)







Capacity



For Pipe1/4"-2" (BSPT or NPT)
For BoltM14-45 (need additional metric die head & dies)
ThreadsStandard BSPT or NPT
    BSPP (optional dies)
    ISO (M14-45) (optional dies)







Catalog Number



Catalog No.Description
43010Complete set, 110V~60Hz, NPT
43020Complete set, 220V~50Hz, BSPT
43030Complete set, 220V~50Hz, NPT
43040Complete set, 110V~60Hz, BSPT
47400Die head, 1/8"-2", NPT, automatic, RH
42400Die head, 1/8"-2", NPT, quick-opening, RH (optional)
47500Die head, 1/8"-2", BSPT, automatic, RH
42500Die head, 1/8"-2", BSPT, quick-opening, RH (optional)
44360Cutter assembly, RIDGID 360
44344Cutter assembly, RIDGID 344
21051Dies 1/2"-3/4", NPT HSS
24051Dies 1/2"-3/4", BSPT HSS
21053Dies 1"-2", NPT HSS
24053Dies 1"-2", BSPT HSS
21056Dies 1/4"-3/8", NPT HSS (optional)
24056Dies 1/4"-3/8", BSPT HSS (optional)
48400Metric die head, bolt, automatic, RH (optional)
49400Metric die head, bolt, quick-open, RH (optional)
29002Metric dies, M14-16, Alloy (optional)
29003Metric dies, M18-22, Alloy (optional)
29004Metric dies, M24-27, Alloy (optional)
29005Metric dies, M30-33, Alloy (optional)
29006Metric dies, M36-39, Alloy (optional)
29007Metric dies, M42-45, Alloy (optional)
44250Folding Wheel Stand, RIDGID 250 (optional)
44420Foot Padel Switch (optional)
44430FOR/OFF/REV Switch (optional)







Optional spare parts



HONGLI SQ50E Pipe Threader/Pipe Threading Machine 1/4" to 2"

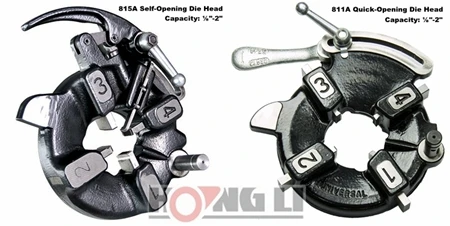

Threading die heads for choosen.



RIDGID type 815A, automatic for standard.



RIDGID type 811A, quick-openning for optional.


HONGLI SQ50E Pipe Threader/Pipe Threading Machine 1/4" to 2"

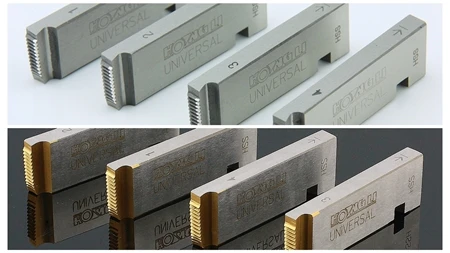

Threading dies for choosen.



RIDGID universal type HSS dies, 1/2"-3/4", 1"-2" for standard.



HSS 1/4"-3/8" dies for optional.



Alloy M14-45 dies for optional.



Titanium-coating 1/4"-3/8", 1/2"-3/4", 1"-2" dies for optional.





HONGLI SQ50E Pipe Threader/Pipe Threading Machine 1/4" to 2"

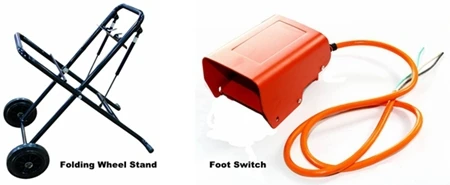

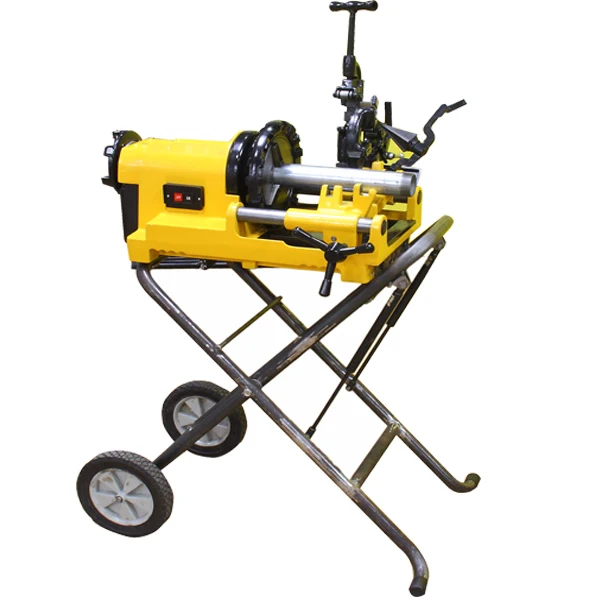

Also can choose to equip Folding Wheel Stand to make the machine easy to transport.



And to equip Foot Padel Switch, to make the easy to operate.










Packaging & Shipping



Packing details



Model No.Gross weight(kg)Net weight(kg)Length(cm)Width(cm)height(cm)
SQ50E 2" Pipe Thread Cutting Machine9075805647







Why Choose HONGLI?

Why do so many professionals choose HONGLI® tools? The answer is simple…trust and affordable.

Hundreds of thousands of HONGLI tools go to work every day in plants, on construction sites and in countless other harsh environments.



These tools operate in extremes of heat and cold, withstand dirt and mud, and perform reliably day in and day out.



The intuitive nature of our products helps you reduce your labor costs. For example, our pipe threading machine and roll grooving machine is designed for high performance, yet simple operation. With HONGLI, you spend less time training your employees and more time driving your business.



Even though selling tools is our business, we assist you rely on fewer tools to get jobs done. Efficient operation means more jobs, higher revenues and increased customer satisfaction. We are committed to introducing new ways to help you grow your business and prosper.



Company Information

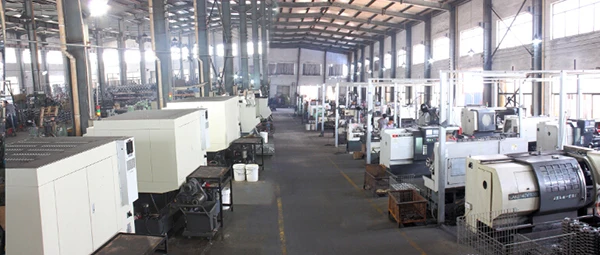

Company Show
