TKBP -90F 90KW GREAT brand of Frequency Conversion Screw Air Rotary Compressor
Product Description

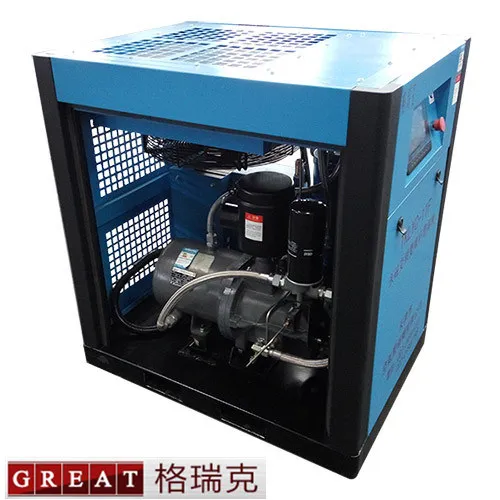

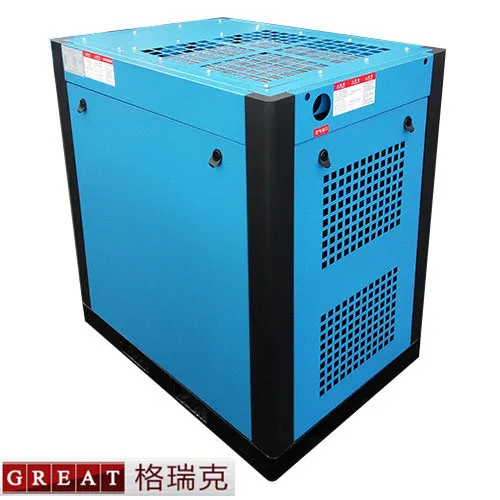

1. Photo for TKBP -90F 90KW GREAT brand of Frequency Conversion Screw Air Rotary Compressor
brand | Great |
Name | TKBP -90F 90KW GREAT brand of Frequency Conversion Screw Air Rotary Compressor |
Model | TKBP-90F |
Air delivery(m³/min) | 16.3/15.6/14.2m3/min |
Working pressure(bar) | 8/10/13 |
Motor power(kw) | 90 |
| Weight(kg) | 2800 |
Overall size(L*W*H)(mm) | 2300*1250*1681.5mm |
2. Advantage for TKBP -90F 90KW GREAT brand of Frequency Conversion Screw Air Rotary Compressor
| 1. efficient power saving | 1).Capacity adjustment: by using variable speed control technology, the displacement capacity can be combined perfectly and the user's gas needed, avoids the unloading power loss, maximum avoid the useless power generation in operating. |
2). Variable Frequency start: in the state of intermittent gas, avoid frequent loading and unloading, avoiding the peak of current and torque. | |
| 3). Low pressure operation: remove the pressure burden of 2bar, and make the unit direct energy saving by 14% (because of the working pressure of 1bar, the energy loss of 7% can be saved). | |
| 2.according to the set required pressure, keep the supply pressure constant | 1). Constant pressure:Under the set pressure , the unit will always maintain the constant pressure supply of the pressure ±0.1bar. |
2). When the gas needed increases, the pressure remains constant while the speed automatic increase ensures the demand for air supply. | |
| 3). When the gas needed reduced, the pressure will remain constant and the speed reduce automatically to meet the requirements | |
| 3.more reliable | 1).Variable Frequency start:avoid electrical shock and avoid mechanical shock |
| 2).Variable Frequency speed adjust: Eliminate the unfavourable factors of long time high-speed operation | |
| 3).Eliminating the pressure of 2bar reduces the chance of a system leak |

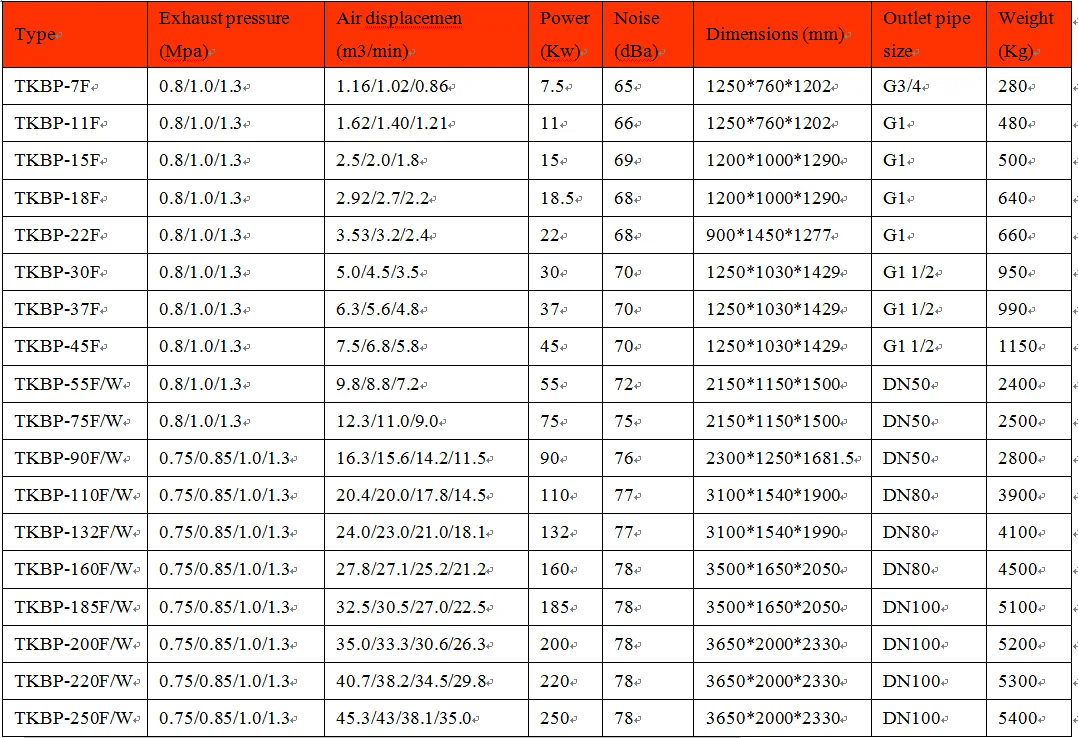

3. Technical parameter for TKBP -90F 90KW GREAT brand of Frequency Conversion Screw Air Rotary Compressor
4. Rated products forTKBP -90F 90KW GREAT brand of Frequency Conversion Screw Air Rotary Compressor
1). TKLYC series of Permanent Magnetic variable Frequency Screw Air Compressor
2). TKBP series of variable Frequency Screw Air Compressor
3).TKL series of Energy saving frequency Screw Air Compressor
4).TKLS series of Outdoor use waterproof/dustproof/shockproof Twin Screw Air Compressor
5). LGC(D)Y series of Portable diesel engine Screw Air Compressor
6). LGFD series of Low-pressure Screw Air Compressor (0.35-0.5MPa)
7). TLK Ⅱ series of 2 stage /multi stage Twin Screw Air Compressor
8). compressed air process equipment, like air dryer, filter, purification system
Company Information
1. Advantage of our company
| our advantages | Over 60 years. China professional R&D manufacture |
| European Standard, China made & factory directly supply | |
| Superior Performance& high efficiency | |
| Timely pre-sale and after-sale service | |
| Energy Saving &Low noise | |
| Trouble free & Money saving | |
| not only provide air systems, but also break the industry monopoly to provide the users with profits |
2. factory
Certifications
FAQ
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
and then you pay balance. Other payment terms can also be negotiated.
Q. How about your delivery time?
A: For common working volatage and normal color, it will take 7-10 working days after receiving your payment.
Other working volatage and colors will take more time about 10-20 working days
Q. Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% test before delivery.
Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
