Оптический аппарат для очистки патч-корда ультразвуковой

Описание и отзывы

Характеристики

Optical patch cord cleaning machine ultrasonic cleaner

Accessorise:

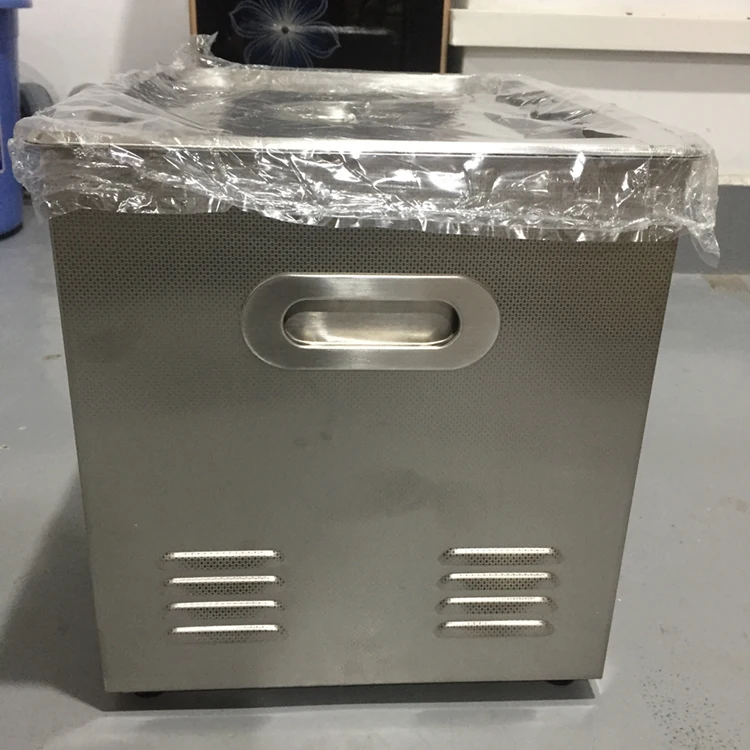

1. one piece main machine

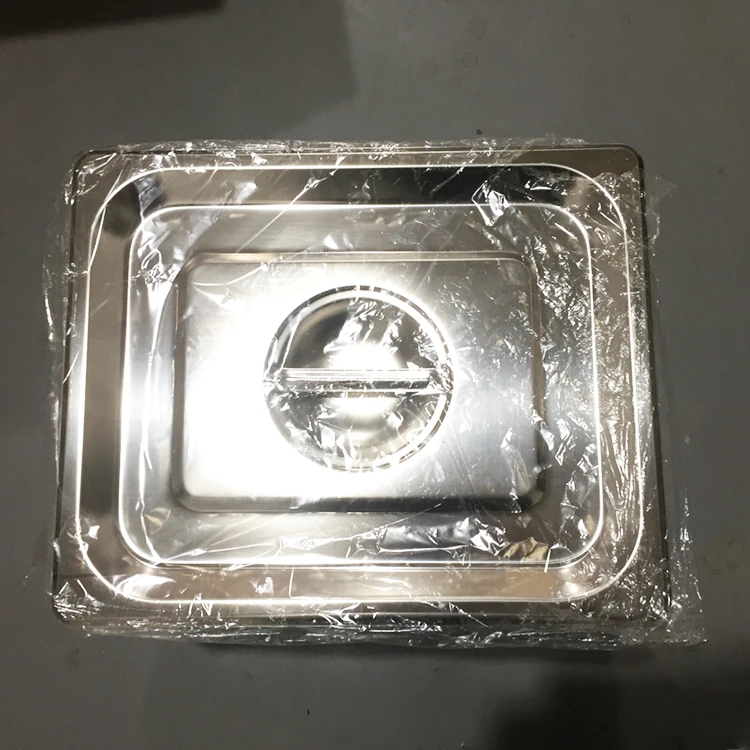

2. one piece soundproof lid


3. Power supply wire


4. one piece mesh basket (optional)

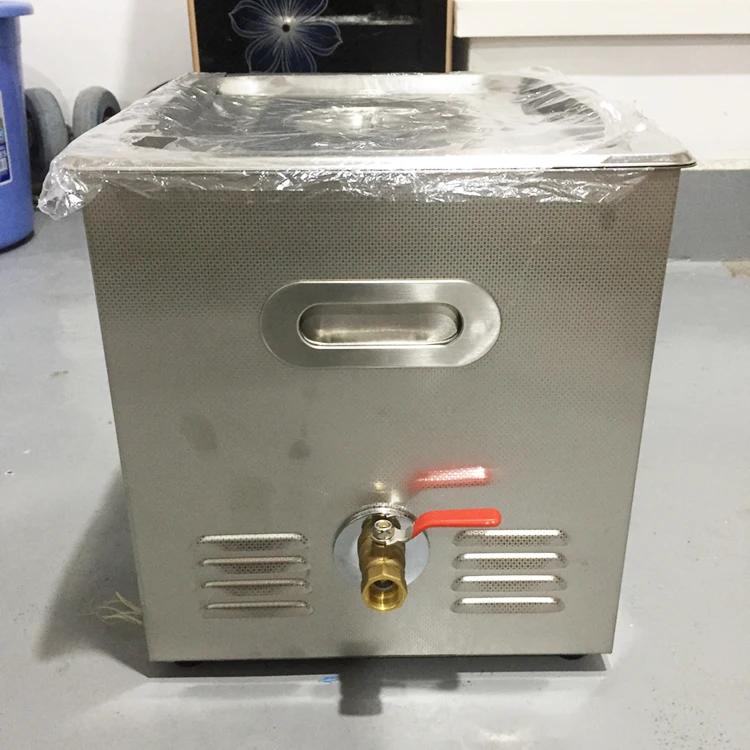

5. one piece filter mash ( for outflow function)

Applications:

• Service line


• Electron line


• Medicament line


• Laboratory


• Machine line


• Horniness alloy line


• Chemistry line, etc

Preparation:

• Unpack the packing and check if any part get loose.


• Keep the cleaner under ventilated and dry condition, place it flatly.


• Make sure the plug connection is correct and firm. (Use triplex plug and earth connection is required and safer.)


• It’s optional to add certain amount of detergent when needed.





Model	VGT-1990T	VGT-1990QT
Power supply	AC100~120V 50Hz AC220~240V 60Hz
Frequency	40KHz
Power	240W
Transducer Qty	4 (PCS)
Tank size	300*240*150mm(L*H*H)
Overall size	330*270*310 mm(L*H*H)
Set time	1-20minutes
Heating power	None	300W
Set temp	None	20-80(℃)
G.W	7.3kg	8kg
Cleaning basket	Optional
Lid	Have
Outflow	Have
Setting	Mechanical control



Operation:

1. START UP ULTRASONIC function:

• Fill stainless steel tank with water


• Plug the cleaner into grounded outlet;

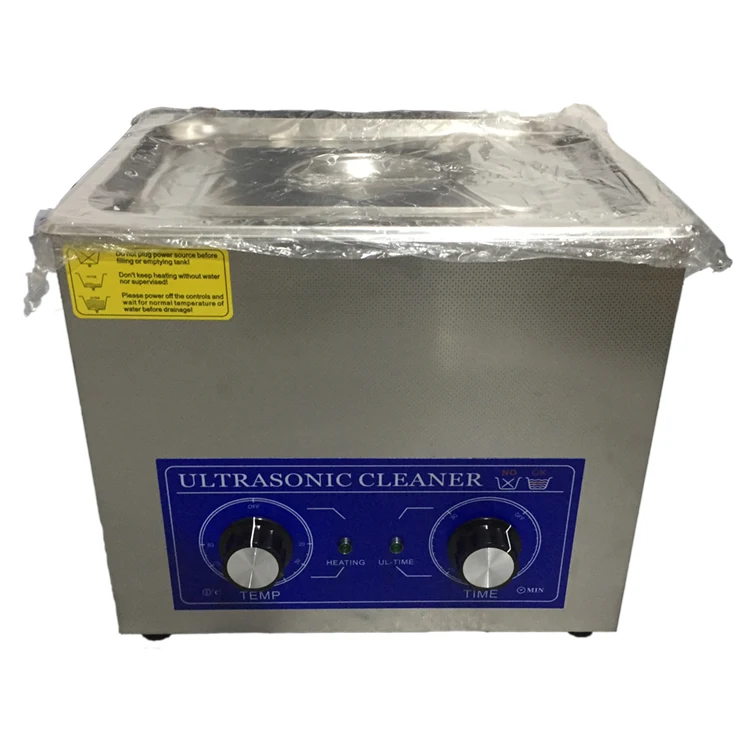

• Turn the “Timer” switch left wards to “ON” for continuous working. Or turn the switch right to set the 1-20 min working time. During working, you will hear the “ sizzling” voice ,that means the cleaner running properly. (Do not run the cleaner continuously more than one hour at one time)

If the heating function needed (if have), please set the temperature switch to the degree that needed, better to 40-60℃.



2. Stop ultrasonic process:

• Turn the switch to “OFF”, the cleaner will stops working, indicator light turn off. And then disconnect the power supply.


• Empty the tank and clean both the outside and inside of the cleaner with clean and dry cloth for next use.

Safety Instructions:

Before using your ultrasonic cleaner, please read and thoroughly understand these safety precautions. Failure to follow them may result in serious personal injury or property damage.



Precautions:

• Do unplug from power source before filling or emptying the tank.


• Do keep the control panel and the area around the cleaner clean and dry -- wipe up solution which spills over the tank brim. Water and high voltage can cause electrical shock.


• Do not operate the cleaner without proper grounding.


• Do not remove the grounding prong on the line cord plug.


• Do not operate the cleaner dry.

Attentions:

a)While the machine is working normally, ultrasonic and tank syntony gives a well-proportioned sound, and no shudder on the surface of the water, yet there is spray made by the tiny bubbles. If there are discontinuous surges, please add or release a little of washing solution in the tank, stopping the surges is good for cleaning the objects.



b)On the condition of make sure the cleaning object is cleaned, please run the machine discontinuously as far as possible(not more than 30min.),for long-time running causes temperature increment of the case, and speedup the aging of the electronic devices.



c)Flammable cleaning solution is forbidden.



d)Do not start the heater nor ultrasonic while the tank is empty.



e)Prevent water or cleaning liquid from spattering into the case or shaker.



f)When something is dropped into the tank carelessly, take it out immediately.



g)Make sure the washing liquid is not hot, and turn the ultrasonic off and pull out the plug, while changing or emptying the tank.



h)Clean the dirt in the tank after using.



i)Keep the surface of the machine clean.



When the machine is broken or the ultrasonic weakens, it may be caused by above reasons, please stop operating the machine and contact maintenance staff.



Warning:

a)Washing liquid spatters into the shaker results in creepage and short circuit, and burn the wafer as well.

b)Electrical abnormity will burn the transistor.

c)High voltage brings damages to the circuit and indicating lights etc.



Caution!	Any parts is likely to loose during washing process. Do not put fabric products, leathern products, wooden products into tank.
	Do not put cell phone and unwaterproof into tank. Do not put glass frame which are made of shell, hawksbill or craftwork into tank.
