BesI.MX6 A9 двухъядерная Встроенная платформа Linux для промышленной

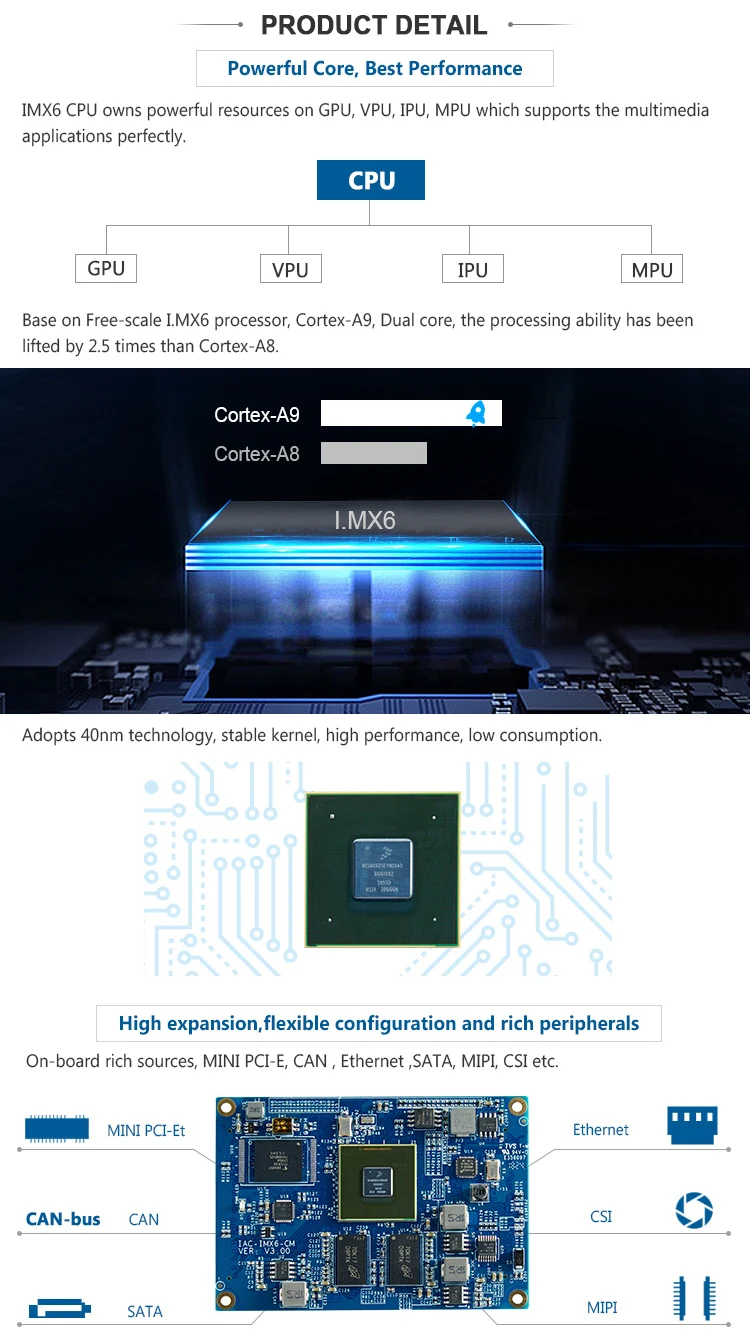

CPU

Freescale i.MX6 processor, ARM® Cortex™-A9 kernel

Dual Core (Solo Core, Quad Core optional)

Frequency

1.0Ghz

GPU

OpenGL® ES 2.0 and OpenVG™ 1.1 Hardware Accelerators & Multi-Format HD1080p Video Decoder and HD720p Video Encoder Engine

RAM

1GB (2GB optional)

Flash

4GB (8GB,16GB,32GB optional)

Telecommunication

UART, USB, CAN, MINI-PCIE, Ethernet, GPIO, I2C, EIM, MIPI, etc.

Display

LVDS, TTL, HDMI, VGA

Audio

audio output, MIC audio input

Storage

SD, SATA-II

B to B Connector

FCI 3*100 pin 0.8mm spacing B to B (the connectors are 350℃ high temperature-tested and seismic-tested)

OS Support

Linux 3.0.101/Android 4.4

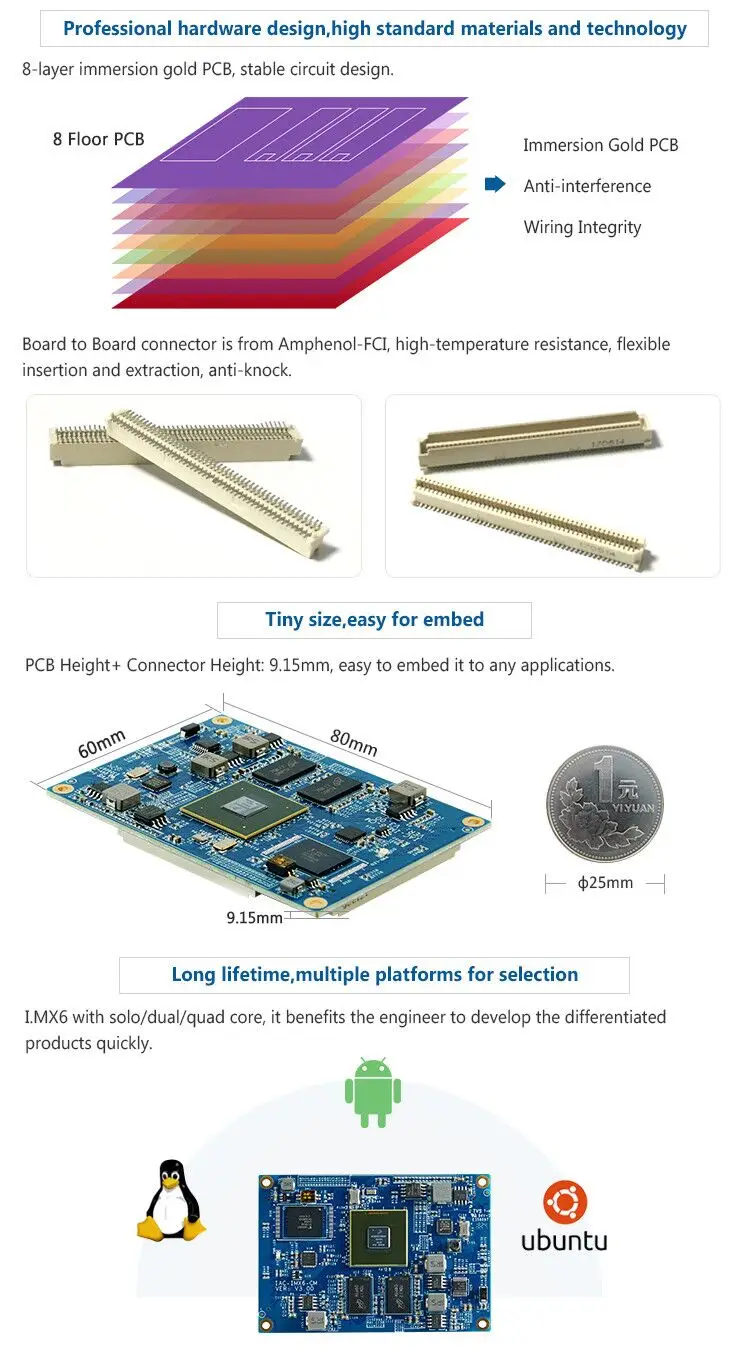

PCB Specification & Size

Using 8-layer PCB high precision process, with the best electrical properties and anti-jamming performance

86 x 60x 1.5mm

Working Parameters

Working temperature: -20°C~ 70°C. (Batch order could be customized to -40°C~ 85°C)

Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption

5V DC power supply, low power consumption: <1W; Power Management Chipset, support 1.8V/3.3V/5.0V voltage input

Form Factor

System on Module+ Carrier Board
