nRF52832 datasheet BLE wireless BLE module for ios and android



RF-BM-ND04 is a BLE data module built on basis of the Nordic nRF52832 which is embedded with ARM ^® Cortex ^®-M0.The module comes with hardware version and you can have secondary development.

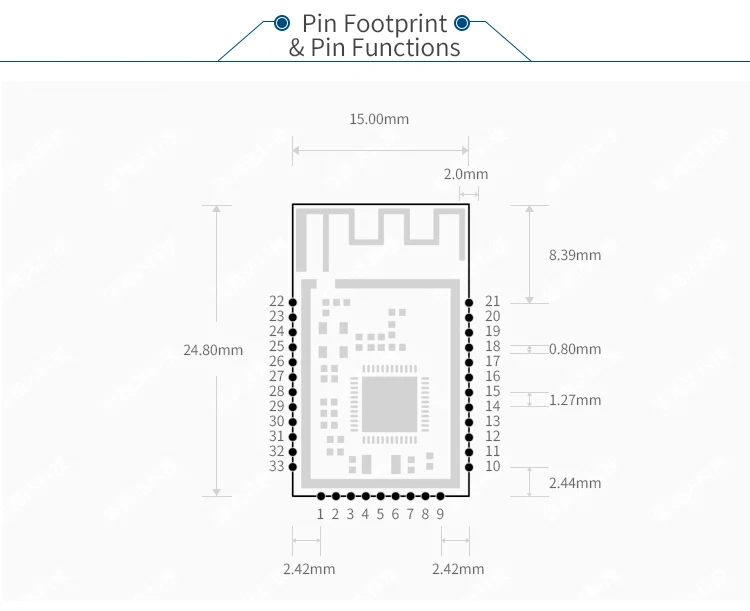

Pin	Name	Chip Pin	Pin Type	Description
1	GND	GND	GND	GND
2	VCC	VCC	Power	Power supply 1.7 V ~ 3.6 V, Recommend 3.3 V
3	P21	P0_21/RESET	I/O	Reset
4	P22	P0_22	I/O
5	P23	P0_23	I/O
6	P24	P0_24	I/O
7	P25	P0_25	I/O
8	P28	P0_28/AIN4	I/O
9	P29	P0_29/AIN5	I/O
10	P30	P0_30/AIN6	I/O
11	P26	P0_26	I/O
12	P27	P0_27	I/O
13	P02	P0_2/AIN0	I/O
14	P03	P0_3/AIN1	I/O
15	P04	P0_4/AIN2	I/O
16	P05	P0_5/AIN3	I/O
17	P06	P0_6	I/O
18	P07	P0_7	I/O
19	P08	P0_8	I/O
20	P09	P0_9	I/O
21	P10	P0_10	I/O
22	P11	P0_11	I/O
23	P12	P0_12	I/O
24	P13	P0_13	I/O
25	P14	P0_14	I/O
26	P15	P0_15	I/O
27	P16	P0_16	I/O
28	SWDIO	JTAG SWD	I/O
29	SWCLK	JTAG CLK	I/O
30	P17	P0_17	I/O
31	P18	P0_18	I/O
32	P19	P0_19	I/O
33	P20	P0_20	I/O
