Ветряная Турбина darrieus с вертикальной осью 500 Вт 1 5 м/с низкой скоростью старта 24

Описание и отзывы

Характеристики

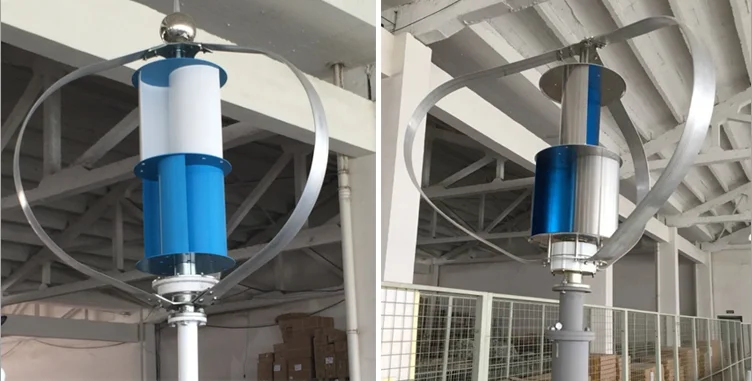

Vertical Axis 500w 1.5m/s low start speed 24V darrieus wind turbinekeydarrieus wind turbine

Specification Sheet

Model	EN-300W-Q4	EN-400W-Q4	EN-500W-Q4
Rated power	300W	400W	500W
Max power	310W	410W	510W
Nominal voltage	12V/24V	12V/24V	24V
Start-up wind speed	1.5m/s	1.5m/s	1.5m/s
Rated wind speed	11m/s	11m/s	12m/s
Survival wind speed	45m/s	45m/s	45m/s
Top net weight	25kg	26kg	27kg
Wind wheel diameter	1.4m	1.4m	1.4m
Number of blades	4
Blades material	Aluminum alloy
Generator	Three phase ac permanent magnet generator/Maglev generators
Controller system	Electromagnetic
Speed regulation	The wind Angle automatically
Working temperature	-40°C~80°C



darrieus wind turbinekeydarrieus wind turbine

Feature

• Low starting wind speed, wind energy utiilization; samll volume and beautiful shap; low running vibration.


• Easy installation and using humanizd design, equipment installation, maintenance and overhaul.


• Rotor blade adopts aluminum alloy,with optimization of aerodynamic shap design and structural design, high wind energy utilization coefficient, increase the power generating capacity.


• Generator adopts the patent technology of permanent magent rotor ac generator, the stator with special design, effectively reduce the resistance torque of the generator, at the same time make wind turbines and generators have bettery machine characteristic, the raliability of unit operation.







darrieus wind turbinekeydarrieus wind turbine

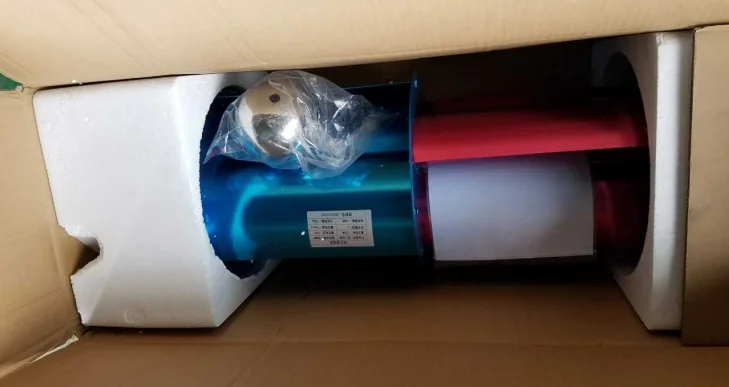

Packing

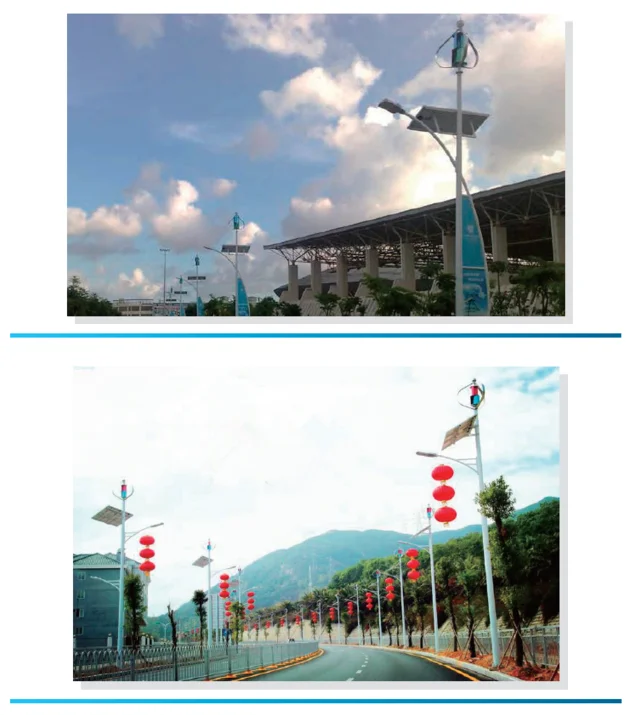

Project Case
